ECOPURE ECOP20 - Specifications and Dimensions

2
Questions? Call toll free: 1-800-693-1138

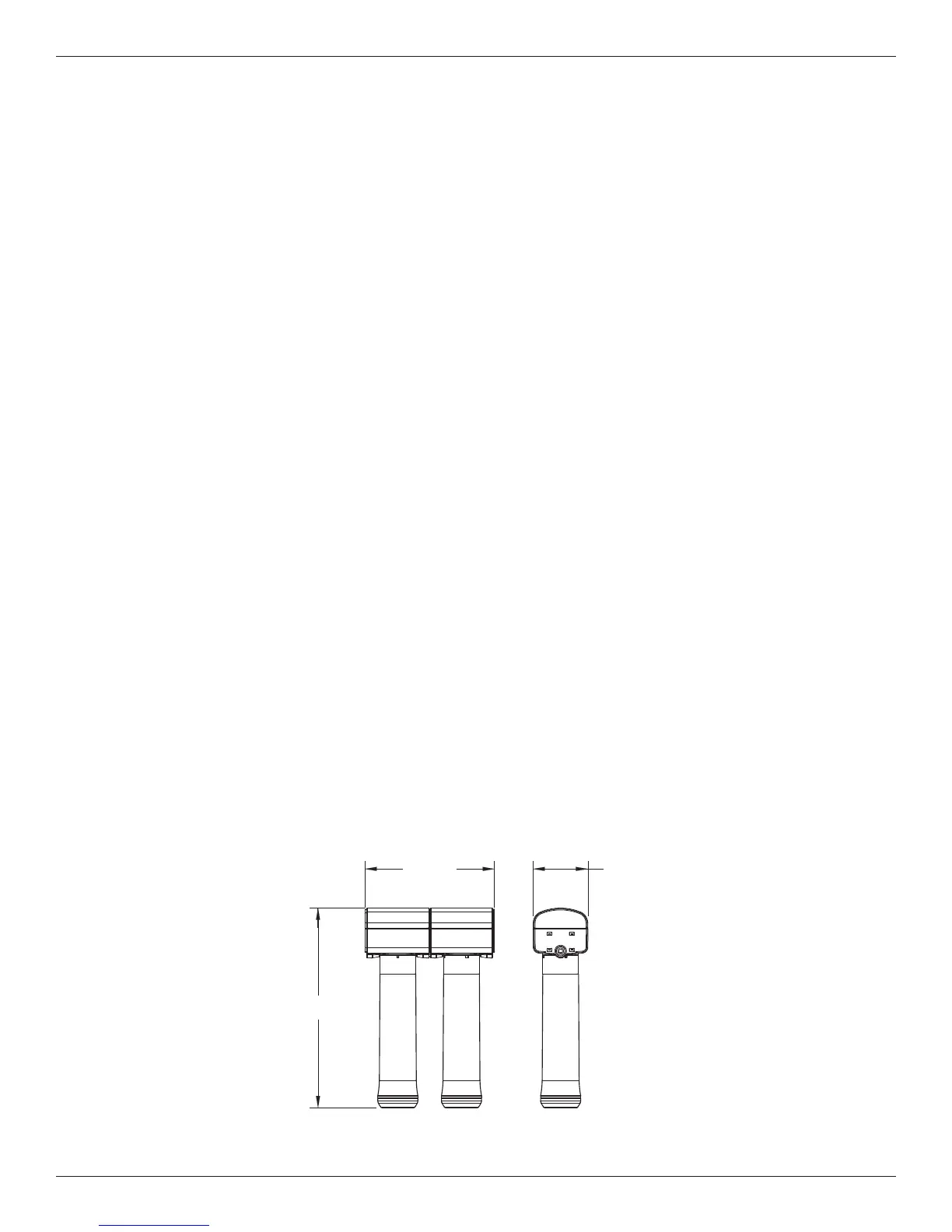

3-1/2"8-3/8"
13"
FFiFilFiltFilteFilterFilter Filter 1Filter 1 FFilter 1 FiFilter 1 FilFilter 1 FiltFilter 1 FilteFilter 1 FilterFilter 1 Filter Filter 1 Filter 2Filter 1 Filter 2
3-1/2”
13”
8-3/8”
Table of Contents
Parts of the System / Materials and Tools Needed / Typical Undersink Installation . . . . . . . . . . . . . . . . . 3
Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Filter Cartridge Life / Filter Cartridge Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Faucet Timer / Battery Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Before You Start
q Read all steps and guides carefully before installing and using your undersink drinking water filter sys-
tem. Follow all steps exactly to correctly install. Reading this manual will also help you to get all the ben-
efits from the undersink drinking water filter system.
q Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfec-
tion before or after the system. This system is certified for cyst reduction and may be used on disinfected
waters that may contain filterable cysts.
q All plumbing should be done in accordance with local codes and requirements. In Massachusetts,
plumbing code 248 CMR 3.00 and 10.00 shall be adhered to. Consult with your licensed plumber.
q The undersink drinking water filter system works on water pressures of 30 psi (minimum) to 100 psi
(maximum). If your house water pressure is over the maximum, install a pressure reducing valve in the
water supply pipe to the filter system.
q Do not install the undersink drinking water filter system outside, or in extreme hot or cold tempera-
tures. Temperature of the water supply to the undersink drinking water filter system must be between
40°F and 100°F. Do not install on hot water.
Min. - Max. Supply Water Pressure 30 - 100 psi (207 - 689 kPa)
Min. - Max. Supply Water Temperature 40 - 100 °F (4 - 38 °C)
Inlet - Outlet 3/8" quick connect fittings and tubing included
Specifications and Dimensions
