INSTRUCTIONS MANUAL

-17-

FIG. 4

THE MACHINE

PLASTIC COVER

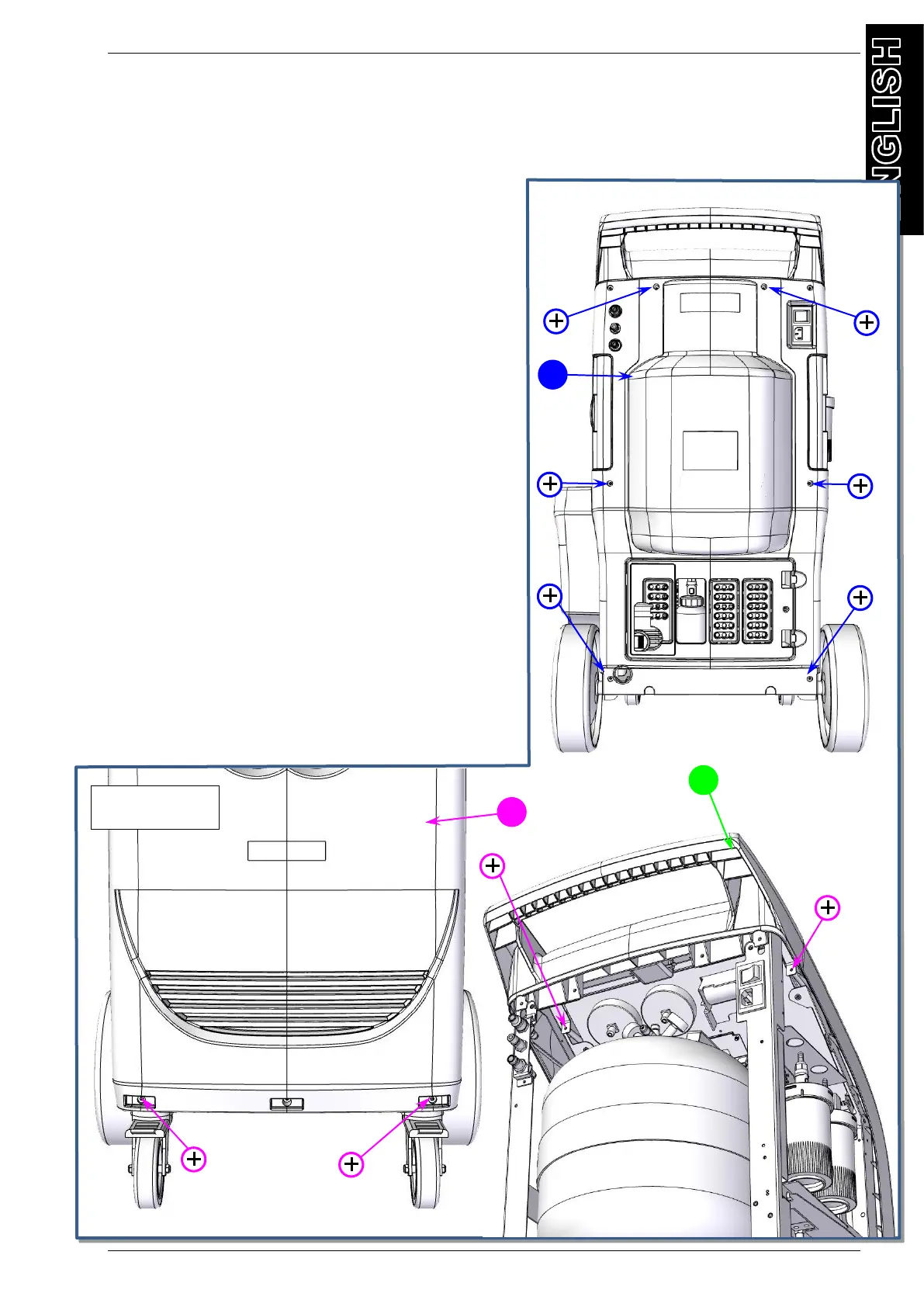

Refer to Fig.4 .

1. Front plastic cover

2. Rear plastic cover

3. Upper plastic cover

Disassembly: Screw off screws marked (+)
