ECOVACS DEEBOT N10 PLUS - Page 12

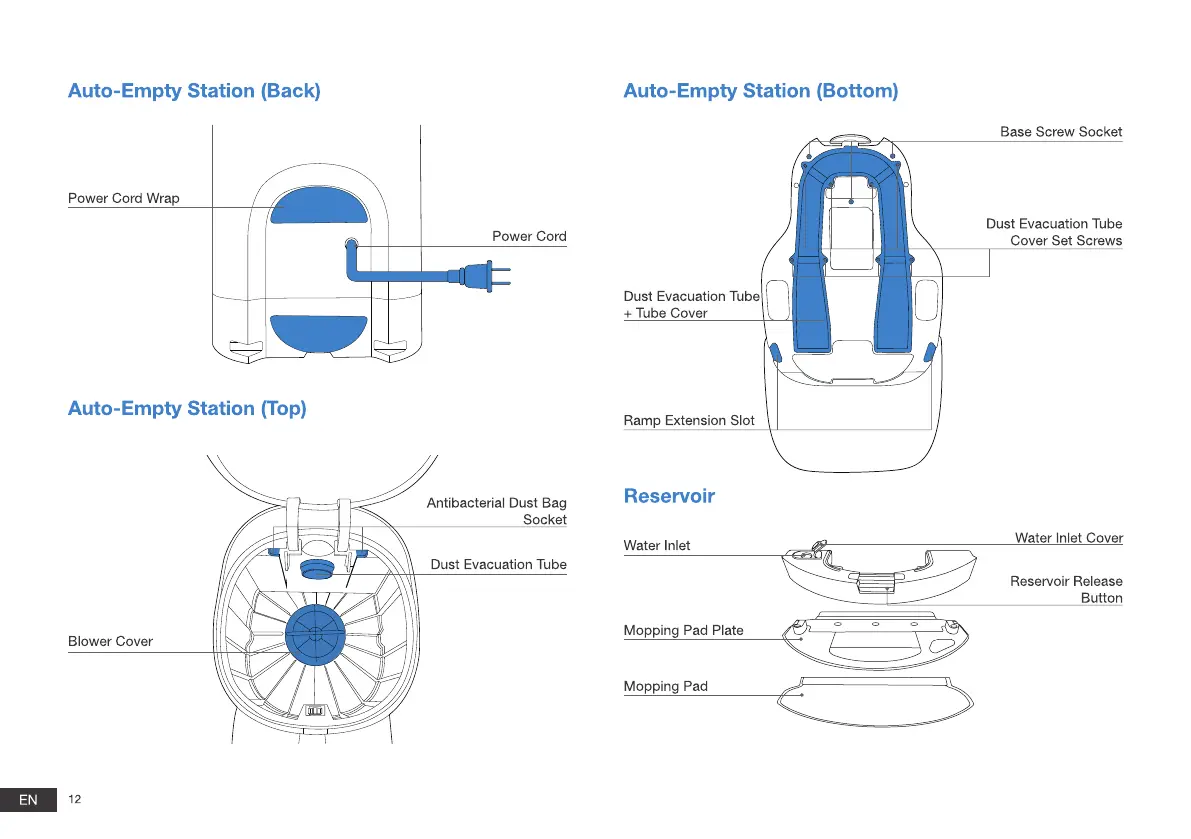

Auto-Empty Station (Bottom)
Power Cord
Dust Evacuation Tube
+ Tube Cover
Ramp Extension Slot
Reservoir
Antibacterial Dust Bag
Socket
Water Inlet
Dust Evacuation Tube
Mopping Pad Plate
Mopping Pad
EN
Auto-Empty Station (Back)
Power Cord Wrap
Auto-Empty Station (Top)
Blower Cover
12
Base Screw Socket
Dust Evacuation Tube
Cover Set Screws
Water Inlet Cover
Reservoir Release
Button
