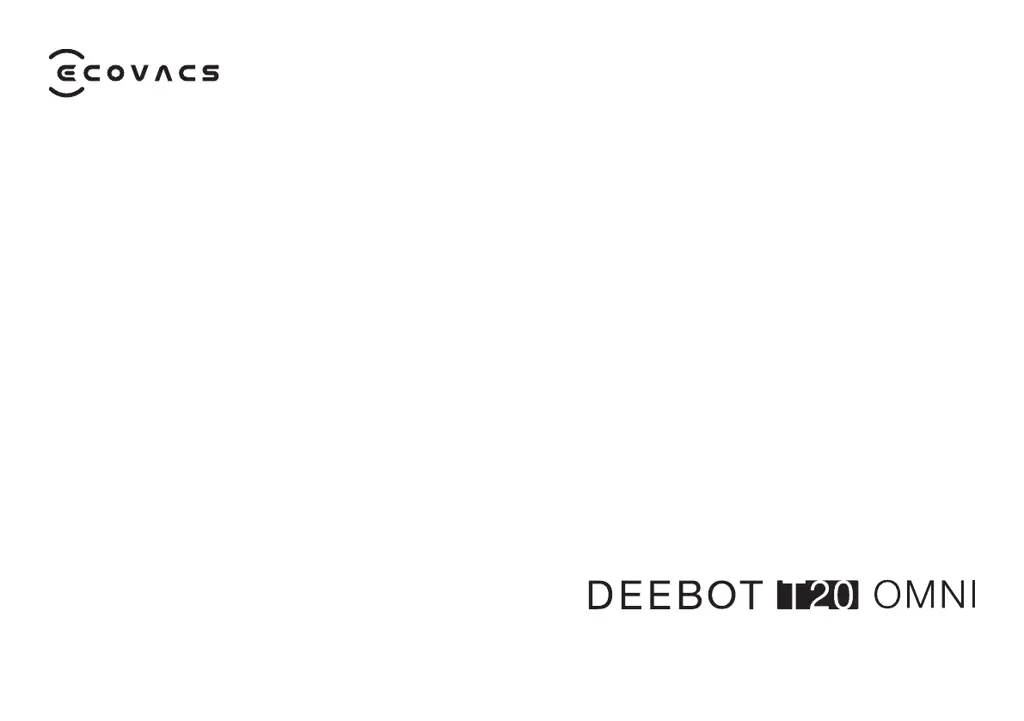

ECOVACS DEEBOT T20 OMNI User Manual (English)

Questions and Answers:

L
leahriceAug 21, 2025
Why is my ECOVACS Vacuum Cleaner DEEBOT unable to charge?
- A
  Andrea BrowningAug 21, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, is unable to charge, first, ensure that DEEBOT is switched ON. Second, check that DEEBOT's Charging Contacts are properly connected to the Station Pins and that the AUTO Mode Button is flashing. Also, inspect both DEEBOT'S Charging Contacts and the Station for any dirt and clean them if necessary. Make sure the Station is properly connected to the power supply. Finally, if DEEBOT has not been used for a long time, it is recommended to use it regularly.
N
Nicole PierceAug 22, 2025
Why is my ECOVACS Vacuum Cleaner DEEBOT not emptying the Dust Bin after returning to the Station?
- S
  Stacy DuranAug 22, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, is not emptying the Dust Bin after returning to the Station, there are several possible reasons. Make sure the Dust Collection Cabin is closed properly and that a Dust Bag is installed in the Station. Ensure that DEEBOT returns to the Station on its own, as manually moving it might not trigger the Auto-Empty function. Check if Do Not Disturb mode is enabled in the ECOVACS HOME App, as this prevents automatic dust emptying. Also, verify if the OMNI Station indicates that the Dust Bag is full and replace it if necessary. If none of these issues are present, there might be an issue with the Station's components.
B
Brett BullockAug 25, 2025
Why does my ECOVACS Vacuum Cleaner DEEBOT have route disorder during cleaning?
- A
  aguirreearlAug 25, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, experiences route disorder, running bias, repeated cleaning, or small area leakage during cleaning, it could be due to several factors. Objects like wires and slippers on the floor can disrupt DEEBOT's operation, so tidy them up before cleaning. Slipping Driving Wheels when climbing steps or thresholds can also affect its navigation. If working on freshly waxed floors, wait for the wax to dry. Ensure the TrueMapping Distance Sensor is clean and free from obstructions. If leakage occurs, allow DEEBOT to correct it without interference.
A
Alexander BlackburnAug 27, 2025
What to do if ECOVACS Vacuum Cleaner DEEBOT gets stuck?
- M
  melissa38Aug 27, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, gets stuck while working and stops, it may be tangled with electrical wires, curtains, or carpet fringing on the floor. DEEBOT will attempt to free itself, but if it cannot, manually remove the obstacles and restart it. Additionally, DEEBOT might be stuck under furniture with a similar height entrance. In this case, set a physical barrier or a Virtual Boundary via the ECOVACS HOME App.
T
tammy43Aug 27, 2025
Why does ECOVACS DEEBOT T20 OMNI DEEBOT return to the Station before finishing cleaning?
- T
  Thomas MorrisonAug 28, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, returns to the Station before finishing cleaning, it might be because the room is too large, requiring DEEBOT to recharge. Enable Continuous Cleaning in the App. Alternatively, DEEBOT may be unable to reach certain areas due to furniture or barriers. Tidy up the area by placing furniture and small objects properly.
F
francisco13Aug 29, 2025
Why is my ECOVACS DEEBOT T20 OMNI Vacuum Cleaner DEEBOT so loud during cleaning?
- E
  eric85Aug 29, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, is running very loud during cleaning, it could be because the Dual Side Brushes and Floating Main Brush are entangled, or the dust bin and filter are blocked. Regularly clean the Dual Side Brushes, Floating Main Brush, dust bin, and filter. Alternatively, DEEBOT might be in Max Mode. Switch to Standard Mode.
V
valerierodriguezAug 31, 2025
What to do if ECOVACS Vacuum Cleaner DEEBOT map is lost?
- M
  Michelle HensleyAug 31, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, is losing its map, it might be because you moved DEEBOT during cleaning. Move DEEBOT to the front of the Station to retrieve the map. Find the restored map in Map Management and tap “Use This Map” to retrieve it. If the problem persists, restart mapping.
D
davischarlesSep 1, 2025
Why does my ECOVACS DEEBOT T20 OMNI Vacuum Cleaner DEEBOT fail to empty the Dust Bin?
- F
  fernandezadamSep 2, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, fails to empty the Dust Bin, it could be that the OMNI Station indicates the Dust Bag is full. Replace the Dust Bag and close the Dust Collection Cabin. If the Dust Bag is not full when prompted by the App, you can put it back again. Also, the outlet of Dust Bin may be blocked by foreign objects. Remove the Dust Bin and clean any foreign objects on the outlet.
M
melvinarmstrongSep 3, 2025
Why do the Dual Side Brushes on my ECOVACS Vacuum Cleaner DEEBOT drop out of place?
- P
  Patrick ArnoldSep 3, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, has Dual Side Brushes that drop out of place during use, it is likely that the Dual Side Brushes are not properly installed. Ensure that the Dual Side Brushes click into place when installing.
D
David ThomasSep 5, 2025
Why is my ECOVACS DEEBOT T20 OMNI Vacuum Cleaner DEEBOT showing no signal and unable to return to the Station?
- B
  brittany88Sep 5, 2025
  If your ECOVACS Vacuum Cleaner, DEEBOT, is showing no signal and is unable to return to the Station, the Station may be incorrectly placed. Place the Station correctly according to the instructions. Check whether the Station is connected to power supply and do not manually move the Station. It is recommended that DEEBOT start cleaning from the Station. Ensure that the charging route is clear.

ECOVACS DEEBOT T20 OMNI Specifications

General

Shape	Round
Product color	White
Remotely operated	Yes
Dust container type	Bagless
Package type	Box
Package depth	486 mm
Package width	533 mm
Package height	642 mm
Package weight	23200 g
Brush type	Roller brush & Side brush
Noise level	69 dB
Navigation type	TrueMapping 2.0
Number of programs	4
Dust capacity (total)	0.3 L
Base station functions	Charging
HEPA filtration system	-
Vacuum cleaner programs	Area, Auto, Manual
Suction power	6000 Pa
Charging time	6.5 h
Battery voltage	14.8 V
Battery capacity	5200 mAh
Number of battery cells	8
Power consumption (typical)	45 W

Weight and Dimensions

Height	103.5 mm
Weight	4400 g
Diameter	362 mm
Base station weight	14000 g
Base station dimensions (W x D x H)	448 x 430 x 578 mm

Summary

Important Safety Instructions

General Safety Precautions

Essential safety guidelines for appliance operation, including child use and hazard avoidance.

Regulatory Compliance and Disposal

EU Compliance and Disposal

EU directives, waste electrical/electronic equipment, and battery disposal guidance.

UK Compliance and Disposal

UK regulations, waste electrical/electronic equipment, and battery disposal guidance.

Hazardous Substances and Radio Equipment Directives

Compliance statements for RoHS and Radio Equipment directives.

UK Hazardous Substances and Radio Equipment Regulations

UK regulations on hazardous substances and radio equipment.

Product Overview

Package Contents

List of all items included in the product package.

Robot Diagram - Top View

Visual identification of robot components and features from the top.

Robot Diagram - Bottom View

Visual identification of robot components and features from the bottom.

Mopping Pad Assembly

Components related to the mopping pad attachment.

OMNI Station Diagram

Visual identification of OMNI Station components.

Dust Bag Diagram

Visual identification of the dust bag component.

Sensor Descriptions

Explanations of various sensors and their functions on the robot.

Getting Started

Quick Start Guide

Initial setup and recommendations before first use.

ECOVACS HOME App

Introduction to the mobile app for controlling the DEEBOT.

Wi-Fi Connection

Requirements and steps for connecting the DEEBOT to Wi-Fi.

Charging the DEEBOT

Instructions for assembling and placing the OMNI Station for charging.

Operating the DEEBOT

Basic Operation Controls

How to start, pause, wake up, and recall the DEEBOT.

OMNI Station Operation

Using the OMNI Station for starting/pausing and returning the DEEBOT.

Mopping Functionality

Steps for attaching mopping pads and initiating the mopping process.

Maintenance

Regular Maintenance Schedule

Recommended maintenance frequencies for robot parts and station components.

Maintaining the Dust Bin and Filter

Instructions for cleaning and maintaining the dust bin and filter.

Maintaining Brushes

Instructions for cleaning the floating rubber brush and dual side brushes.

Maintaining Other Components

Guidance on cleaning various other robot components.

Maintaining the OMNI Station

Steps for cleaning the OMNI Station's tanks and sink.

Maintaining the Dust Bag

Instructions for replacing and maintaining the dust bag.

Maintaining the Filter

Instructions for removing, washing, and installing the filter.

Storage

DEEBOT Storage Guidelines

Recommendations for storing the DEEBOT when not in use.

Troubleshooting

Connectivity and App Issues

Solutions for problems connecting to the ECOVACS HOME App.

Navigation and Mapping Issues

Troubleshooting for map loss and incorrect cleaning routes.

Charging and Station Return Issues

Solutions for DEEBOT not charging or returning to the station.

Noise and Mode Issues

Addressing loud operation and mode-related problems.

Obstacle and Stuck Issues

Solutions for DEEBOT getting stuck or encountering obstacles.

Dust Bin and Station Issues

Troubleshooting dust bin not emptying or station errors.

Component and Wheel Issues

Addressing issues with mopping pad rotation, child lock, and driving wheels.

Water Tank and Mopping Pad Issues

Solutions for water draining problems and mopping pad lifting errors.

Technical Specifications

Model and Electrical Specifications

Details on model, rated input/output, power, and frequency bands.
