EcoWater ERR3702R50 - Page 44

44
ECOWATER
S Y S T E M S
Service Information
RELIEVING WATER PRESSURE WITH THE
BYPASS VALVE(S)
C
AUTION: Always relieve water pressure in the
EcoWater Systems conditioner/refiner, as described
below, before removing parts from the valve or
resin tank.
DE-PRESSURIZE
1. Put bypass valve(s) into Bypass position.
2. Place conditioner/refiner valve in Fill position by per-
forming Steps 1 & 7 of Manual Advance Recharge
procedure on Page 47.
PRESSURIZE
1. Put bypass valve(s) into Service position.
2. Return conditioner/refiner valve to Service position
by performing Steps 10-16 of Manual Advance
Recharge procedure on Page 47.
ALTERNATE METHODS:

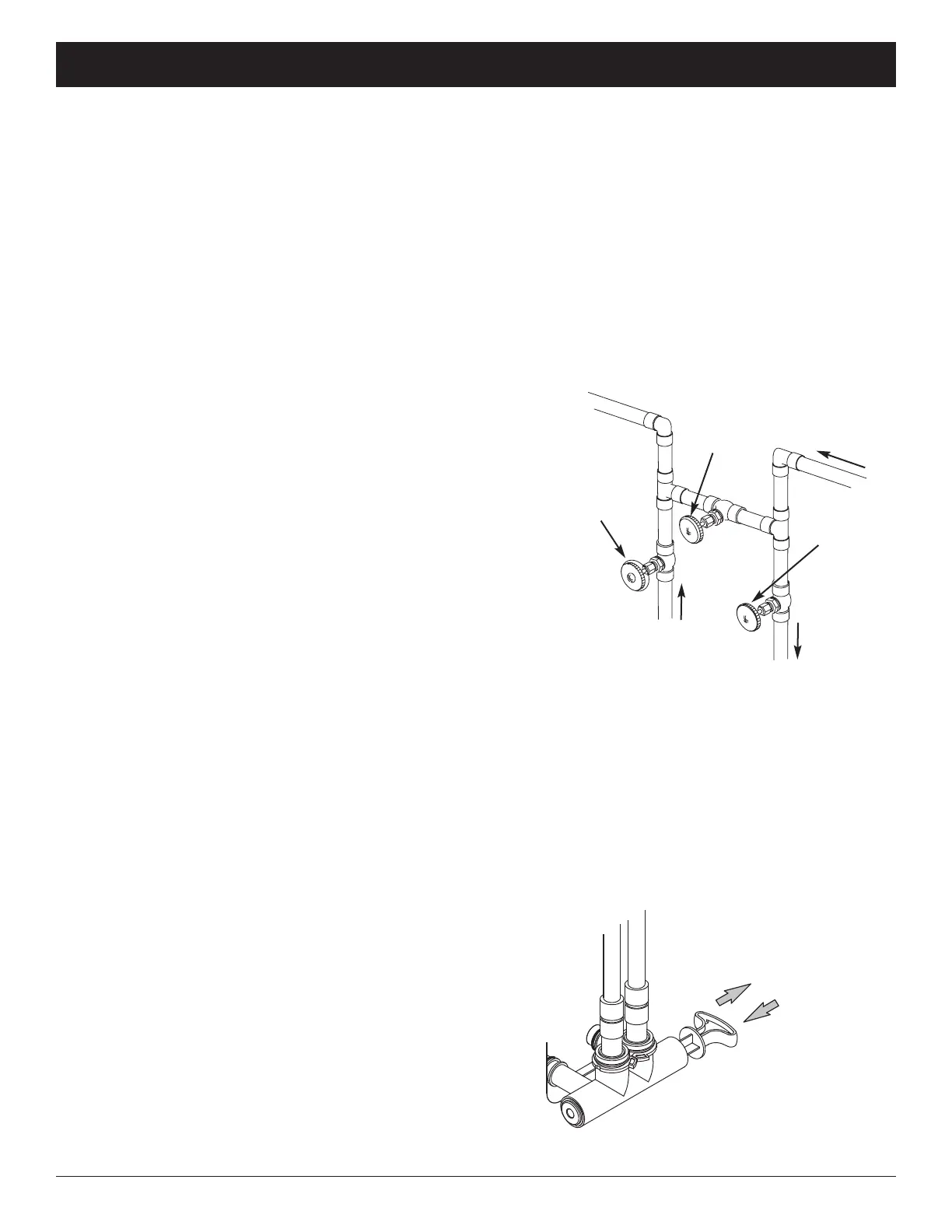

3-VALVE BYPASS (See Figure 155)
DE-PRESSURIZE
1. Close the INLET valve.
2. Open HOT and COLD conditioned water house
faucets.
3. Close the OUTLET valve and open the BYPASS
valve.
4. Close all house faucets.
PRESSURIZE
1. Open HOT and COLD house faucets.
2. Close the BYPASS valve and open the OUTLET
valve.
3. Slowly, open the INLET valve.
4. Close all house faucets.
ECOWATER SYSTEMS BYPASS VALVE
(See Figure 156)
DE-PRESSURIZE
1. Close the house main water supply valve.
2. Open HOT and COLD conditioned water house
faucets.
3. Push the bypass valve handle to Bypass position.
4. Optional: For hard water bypass to house faucets,
reopen the main water supply valve.
PRESSURIZE
1. Open main water supply valve if it is closed.
2. Open HOT and COLD house faucets.
3. Pull the bypass valve handle to Service position.
4. Close all house faucets.
FIG. 156
FIG. 155
BYPASS
VALVE
EcoWater Systems Bypass Valve
3-Valve Bypass
To
Conditioner/
Refiner
From
Conditioner/
Refiner
W
a
t
e
r
Flo
w
OUTLET
VALVE
INLET
VALVE
For Service
Close Bypass Valve.
Open Inlet & Outlet
Valves.
For Bypass
Open Bypass Valve.
Close Inlet & Outlet
Valves.
Pull out for Service
(Soft water)
Push in for
Bypass
