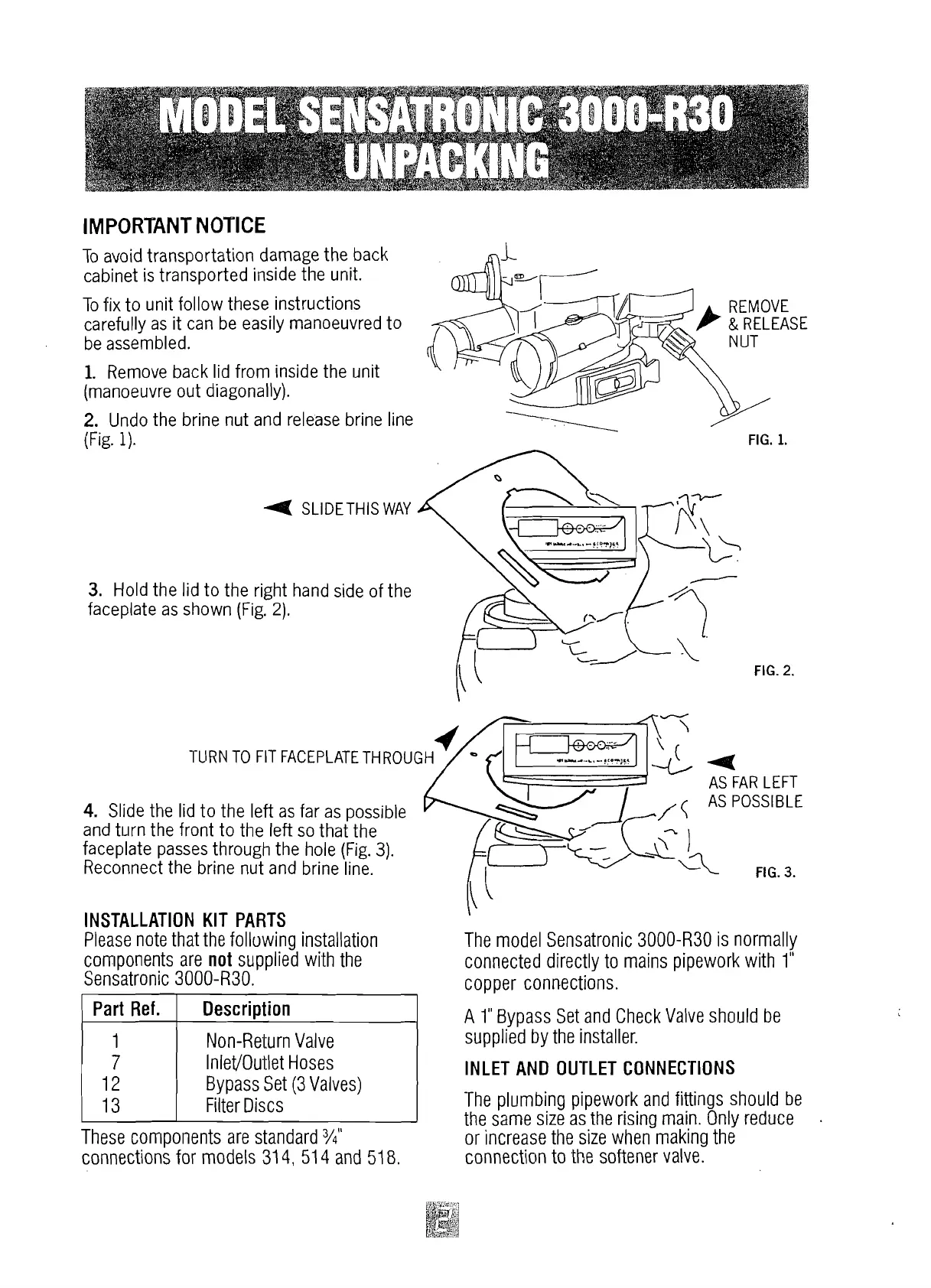

IMPORTANT NOTICE
To avoid transportation damage the back
cabinet is transported inside
tlie unit.
To fix to unit follow these instructions
carefully as it can be easily manoeuvred to
be assembled.
1. Remove back lid from inside the unit
(manoeuvre out diagonally).
2. Undo the brine nut and release brine line
(Fig.
1).
4 SLIDETHIS WAY
3. Hold the lid to the right hand side of the
faceplate as shown (Fig.
2).
TLIRN TO FIT FACEPLATE THROl
4. Slide the lid to the left as far as possible
and
turn the front to the left so that the
faceplate passes through the hole (Fig.
3).
Reconnect the brine nut and brine line.
-
FIG. 1.
FIG. 2.
AS FAR LEFT
AS POSSIBLE
FIG. 3.
INSTALLATION KIT PARTS
Please note that the following installation The model Sensatronic 3000-R30 is normally
corr~ponents are not supplied with the
connected directly to mains
pipework with 1"
Sensatronic 3000-R30. copper connections.
1
Part Ref.
1
7
12
13
A 1" Bypass Set and Check Valve shc~~~ld be
supplied by the installer.
Description
Non-Return Va.lve
Inlet/Oul:let Hoses
Bypass Set (3 Valves)
Filter Discs
I INLET AND OUTLET CONNECTIONS
The pl~lmbing pipework and fittings should be
I
;he same size as the rising main. Only reduce
These
corr~po~ients are standard 34"
or increase the size when making the
connections for models 31
4, 51 4 and 51 8.
connection to the softener valve.
