both ports. Sensatronic
514
and
518
models
must proceed as follows. The
1"
to
%"
Adaptor Elbow should be installed in the Inlet
port.
'The Adaptor Elbow Meter Set (see
SECT'oN
page 3), Parts 11
.I
to 11.6 (51 4/51
8)
or
15.1 to 15.7 (3000-R30) must be installed
sENsATRoN'C
in the outlet port, vertically downwards,
otherwise the meter will not register water
flow correctly.
Sensatronic
3000-1330
models proceed by
installing the
1"
to
1"
Adaptor in .the inlet port

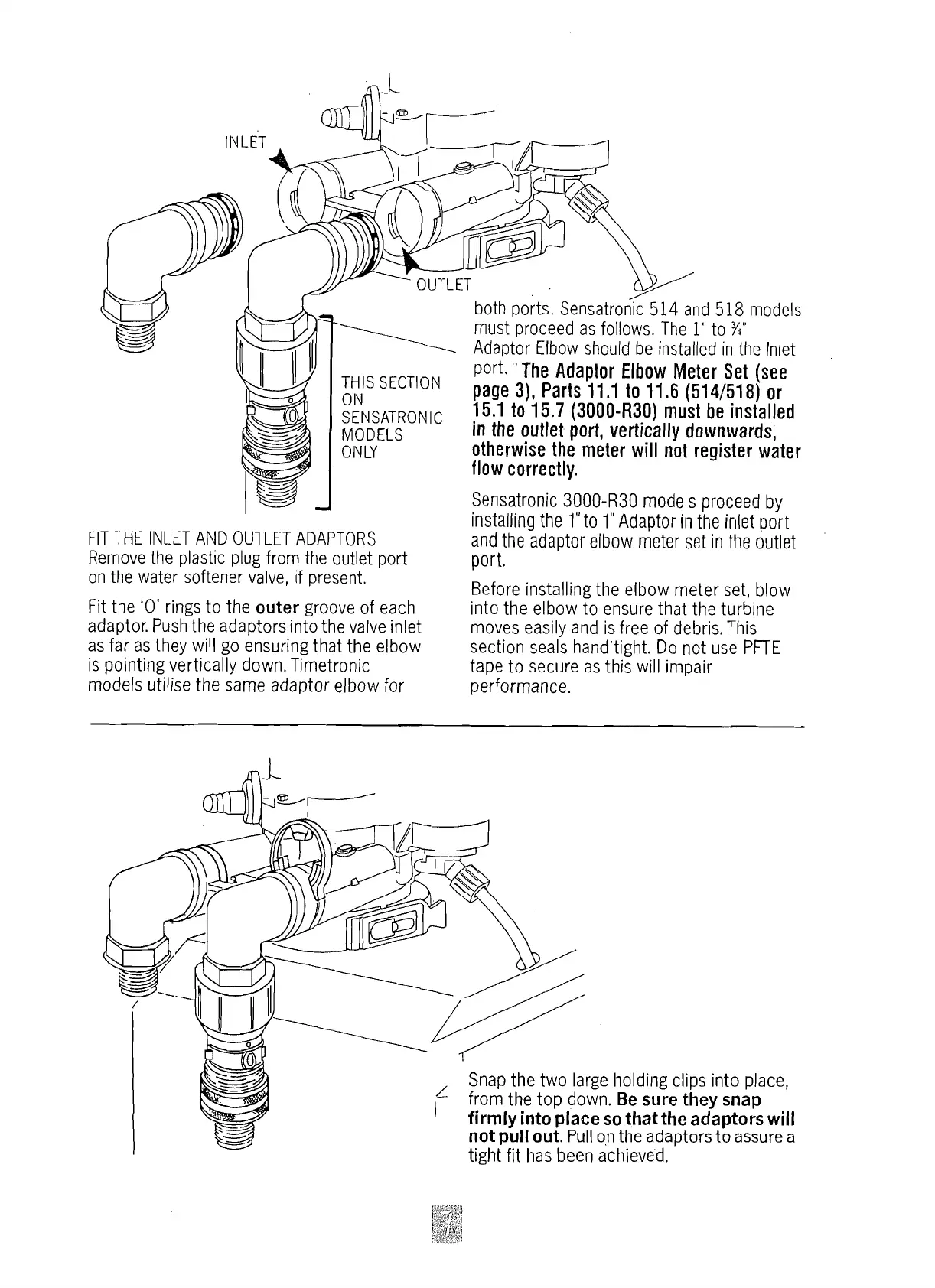

FIT THE
IIULET AND OUTLET ADAPTORS
and the adaptor elbow meter set in the outlet
Remove the plastic plug from the outlet port
port.
on the water softener valve, if present.
Before installing the elbow meter set, blow
Fit the
'0'
rings to the
outer
groove of each
into the elbow to ensure that the turbine
adaptor. Push the adaptors into the valve inlet
moves easily and is free of debris. This
as far as they will go ensuring that the elbow
section seals hand'tight. Do not use
PFTE
is pointing vertically down. Timetronic
tape to secure as this will impair
models
ut~lise the same adaptor elbow for
performance.
Snap the two large
Iiolding clips into place,
f
from the top down.
Be
sure they snap
firmly into place so that the adaptors will
not pull out.
Pull o,n the adaptors to assure a
tight fit has been achieve'd.
