10
Installing the Motherboard
Connecting Case Components

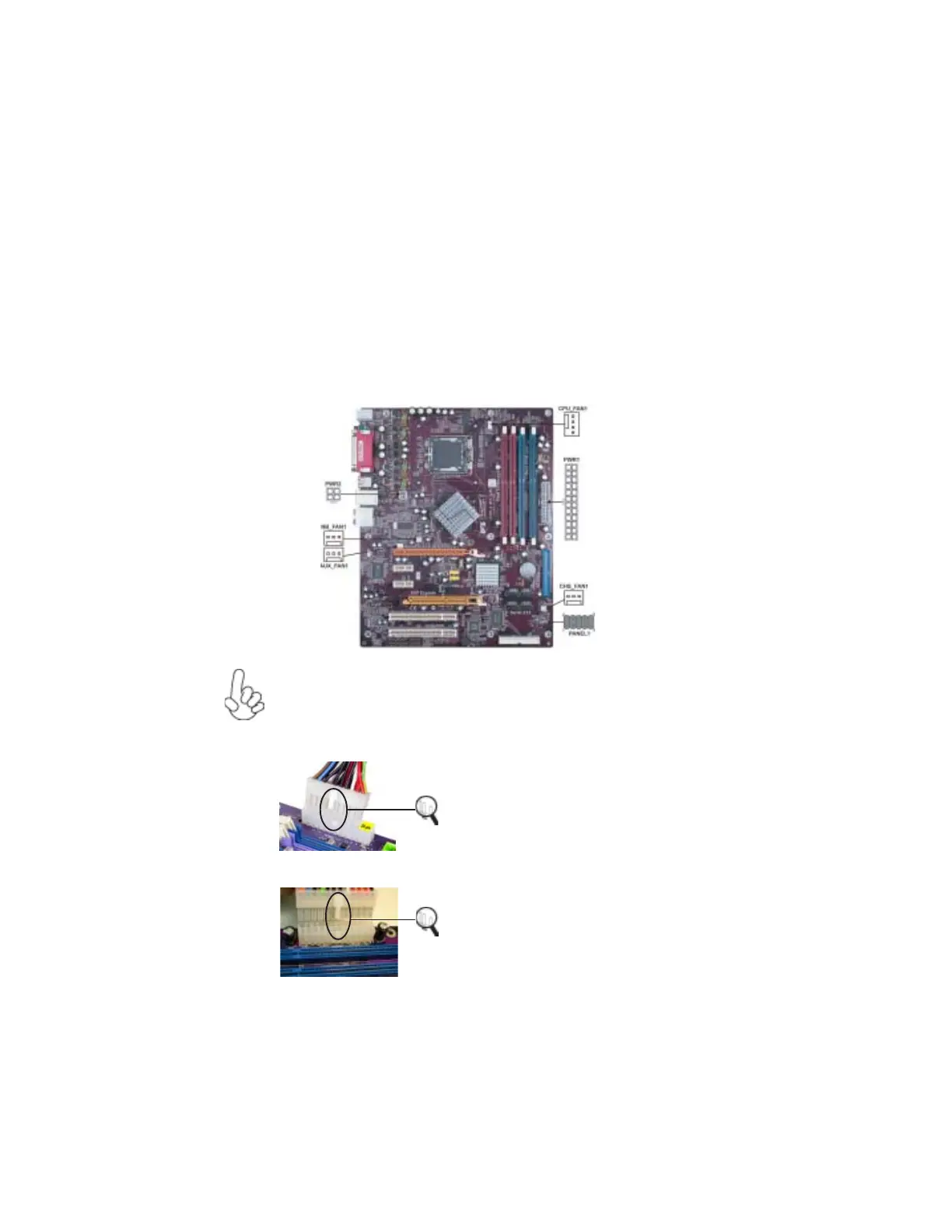

After you have installed the motherboard into a case, you can begin con-
necting the motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN1.
2 Connect the case cooling fan connector to CHS_FAN1.
3 Connect the Northbridge cooling fan connector to NB_FAN1.
3 Connect the power fan connector to AUX_FAN1.
4 Connect the case switches and indicator LEDs to the PANEL1.
6 Connect the standard power supply connector to PWR1.
7 Connect the auxiliary case power supply connector to PWR2.
Connecting 20/24-pin power cable
Users please note that the 20-pin and 24-pin power cables can both be con-
nected to the ATX1 connector. With the 20-pin power cable, just align the 20-
pin power cable with the pin 1 of the ATX1 connector. However, using 20-pin
power cable may cause the system to become unbootable or unstable because of
insufficient electricity.
20-pin power cable
24-pin power cable
Users please note that when installing 20-
pin power cable, the latche of power cable
falls on the left side of the ATX1 connector
latch, just as the picture shows.
Users please note that when installing 24-
pin power cable, the latches of power cable
and the ATX1 match perfectly.
