ECS 945GCT-M3 - Checking Jumper Settings; Jumper Settings

Installing the Motherboard
9
Checking Jumper Settings

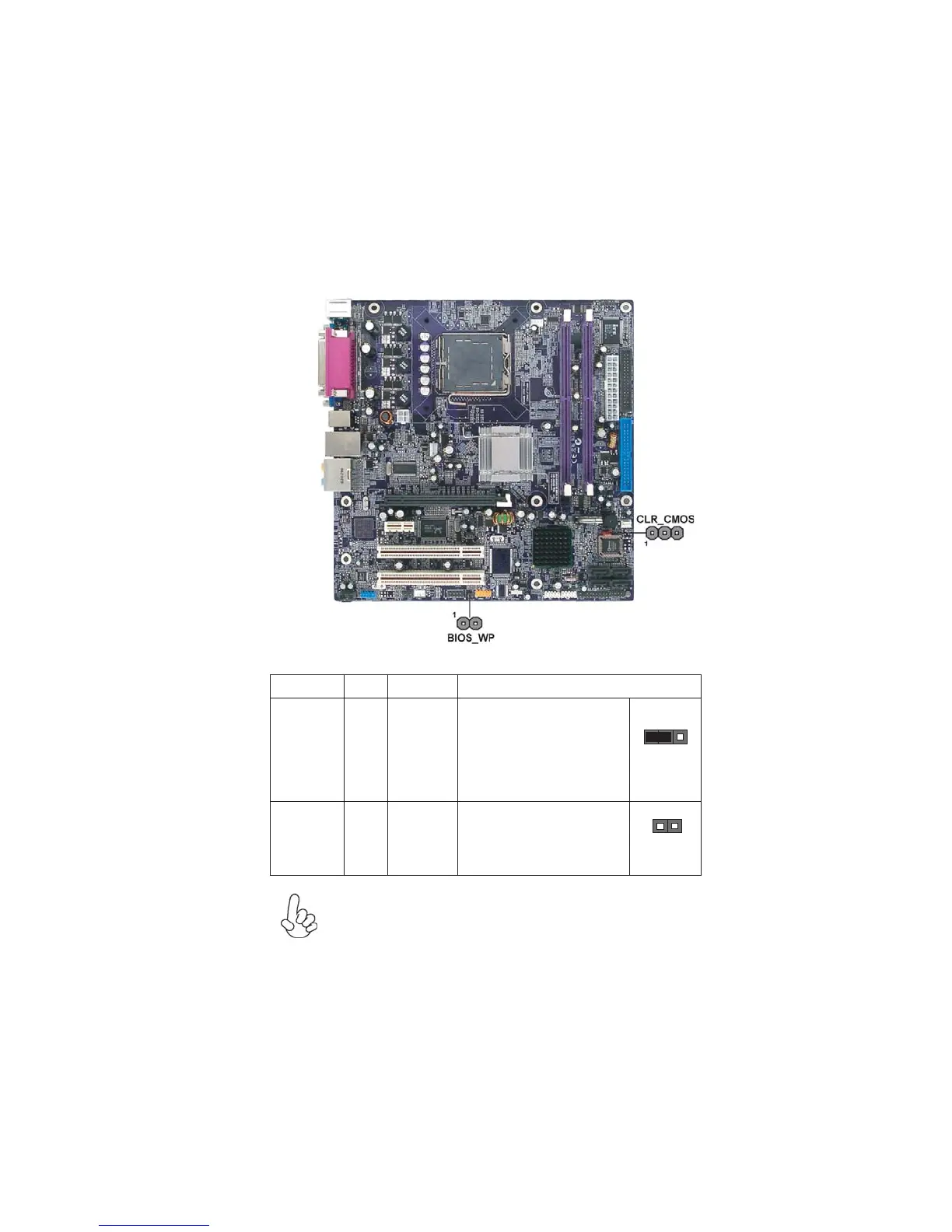

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
Jumper
Type
Description Setting (default)
CLR_CMOS
3-pin
CLR_CMOS
1-2: NORMAL
2-3: CLEAR CMOS
Before clearing the
CMOS, make sure to
turn off the system.
BIOS_WP
2-pin
1
CLR_CMOS
BIOS_WP
PROTECT
FLASH
OPEN: WRITE UNPROTECT
SHORT: WRITE PROTECT
To avoid the system unstability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Optimal Defaults”
and then “Save Changes and Exit”.
1
