A68F2P-M4 USER MANUAL
3

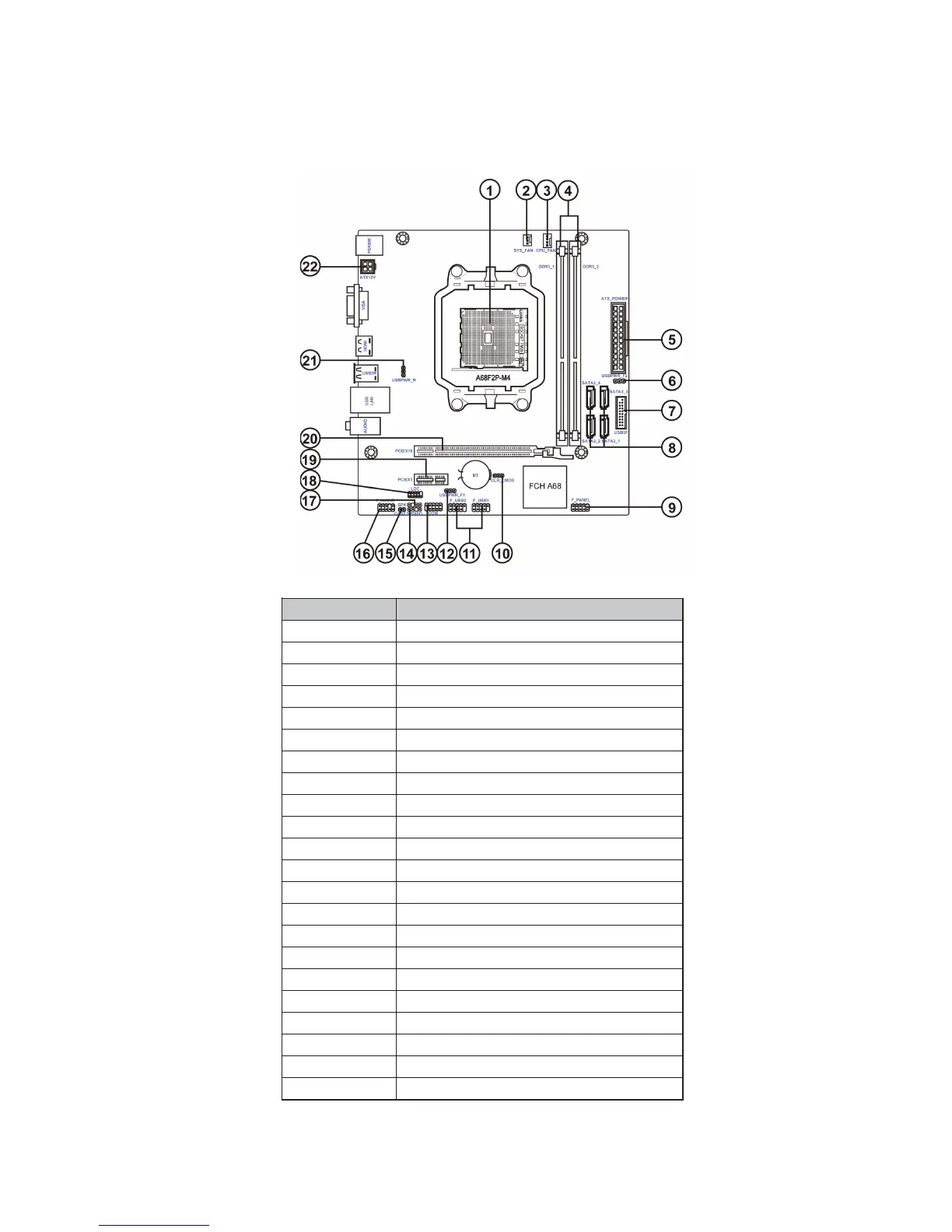

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket Socket FM2+ for AMD A series processor
2. SYS_FAN 3-pin System cooling fan connector
3. CPU_FAN 4-pin CPU cooling fan connector
4. DDR3_1~2 240-pin DDR3 SDRAM slots
5. ATX_POWER Standard 24-pin ATX power connector
6. USBPWR_F2 Front panel USB power select jumper
7. USB3F Front panel USB 3.0 header
8. SATA3_1~4 Serial ATA 6Gb/s connectors
9. F_PANEL Front panel switch/LED header
10. CLR_CMOS Clear CMOS jumper
11. F_USB1~2 Front panel USB 2.0 headers
12. USBPWR_F1 Front panel USB power select jumper
13. COM Serial port header
14. SPDIFO SPDIF out header
15. CASE Case open header
16. F_AUDIO Front panel audio header
17. SPK Speaker header
18. LDC Debug Card header
19. PCIEX1 PCI Express x1 slot
20. PCIEX16 PCI Express slot for graphics interface
21. USBPWR_R Rear USB/PS2 power select jumper
22. ATX12V 4-pin +12V power connector
