AMD RAID Configuration
5
Enter the RAID BIOS Setup by pressing Ctrl-F when prompted, and proceed
to set up the AMD RAID BIOS as described in the next section.
The PC reboots.
Press F10 to save the configuration and exit.
Configuring the AMD RAID BIOS
The AMD RAID BIOS set up lets you choose the RAID type and which hard drives
you want to make part of the array.
Entering the RAID BIOS Setup:
1
Wait until you see the RAID software prompting you to press Ctrl-F.
The RAID prompt appears as part of the system POST and boot process
prior to loading of the OS. You have a few seconds to press Ctrl-F before the
screen disappears.
Press Ctrl-F.
4
2
The Main Menu screen appears (Figure 1.3).

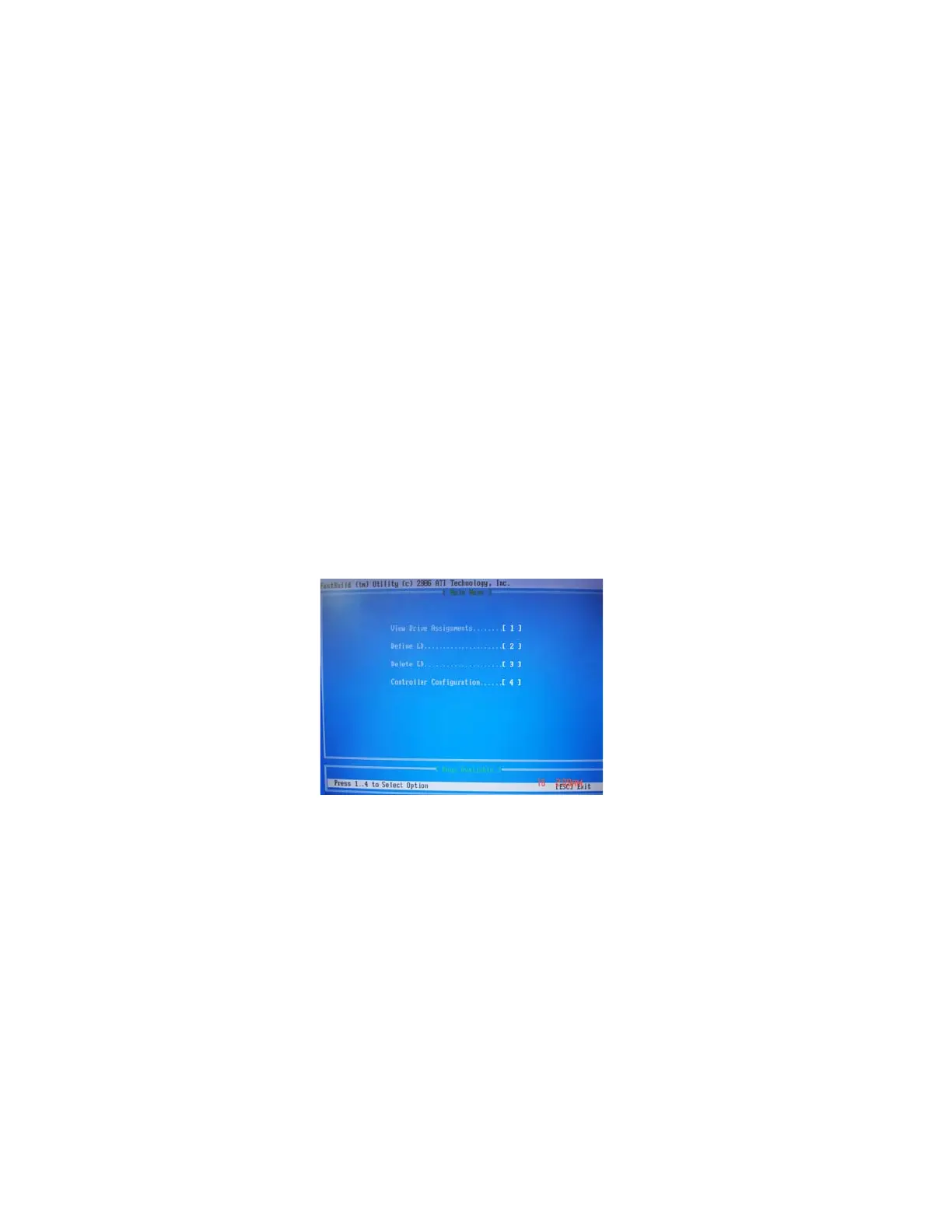

Figure 1.3 Main Menu

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	220 mm
Width	305 mm
