AMD RAID Configuration

Select [2], then select LD 1 in the following page.

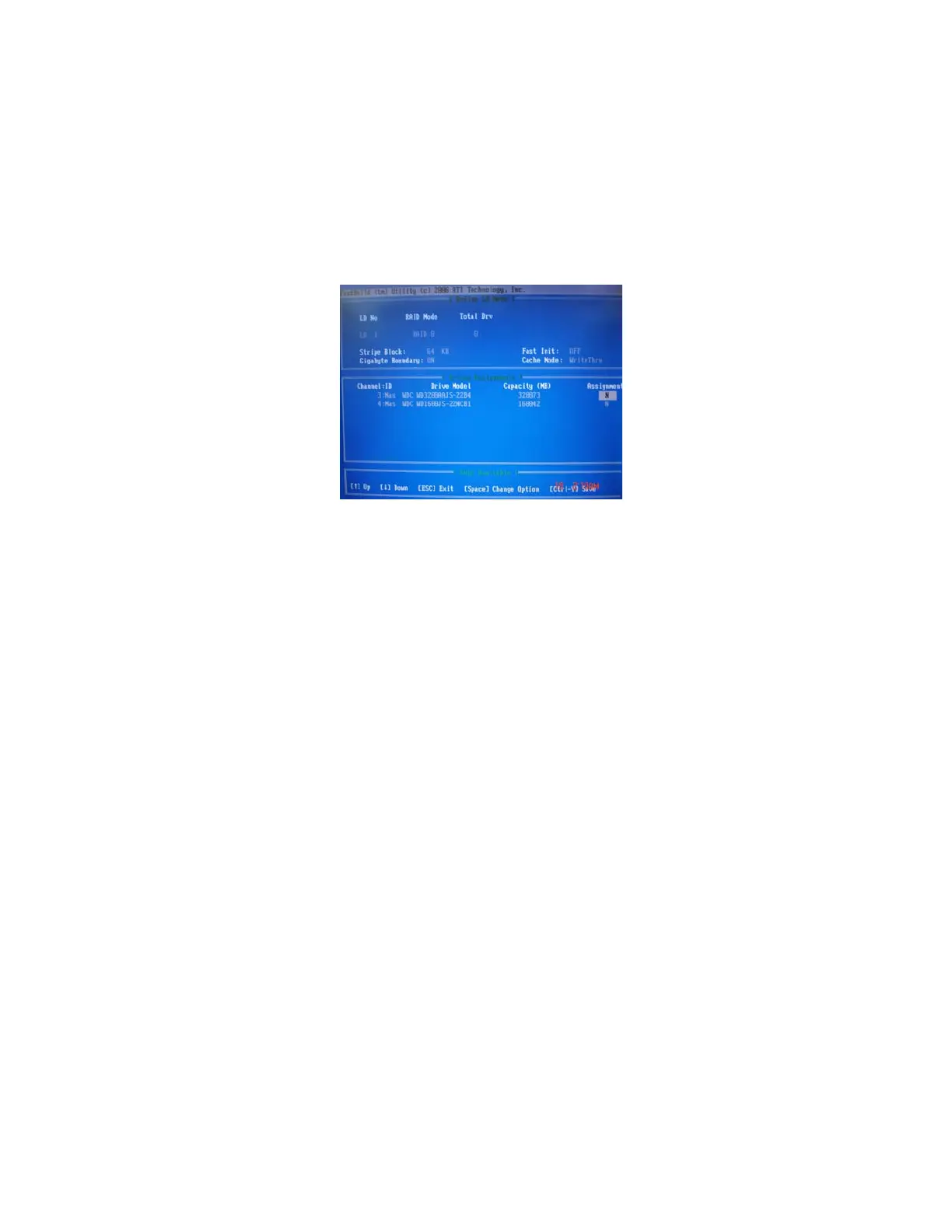

The Define LD Menu screen appears (Figure 1.4).

Figure 1.4 Define LD Menu

Using the Define a New Array Screen

If necessary, press the tab key to move from field to field until the appropriate field

is highlighted.

•

Selecting the RAID Mode

By default, this is set to Mirroring. To change to a different RAID mode,

press the spacebar until the mode that you want appears in the RAID Mode

box—RAID0/1/10/JBOD.

Note: Not all RAID levels are supported on all platforms.

Stripe block size is given in kilobytes, and affects how data is arranged on the

disk. It is recommended to leave this value at the default Optimal, which is

64KB, but the values can be 64 KB and 128 KB. When choose RAID 1, the

Stripe block size is unchangable.

• Selecting the Stripe Block Size

Questions and Answers:

Need help?

Do you have a question about the ECS A785GM-AD3 and is the answer not in the manual?

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
