AMD RAID Configuration
5
Enter the RAID BIOS Setup by pressing Ctrl-F when prompted, and proceed
to set up the AMD RAID BIOS as described in the next section.
The PC reboots.
Press F10 to save the configuration and exit.
Configuring the AMD RAID BIOS
The AMD RAID BIOS set up lets you choose the RAID type and which hard drives
you want to make part of the array.
Entering the RAID BIOS Setup:
1
Wait until you see the RAID software prompting you to press Ctrl-F.
The RAID prompt appears as part of the system POST and boot process
prior to loading of the OS. You have a few seconds to press Ctrl-F before the
screen disappears.
Press Ctrl-F.
4
2

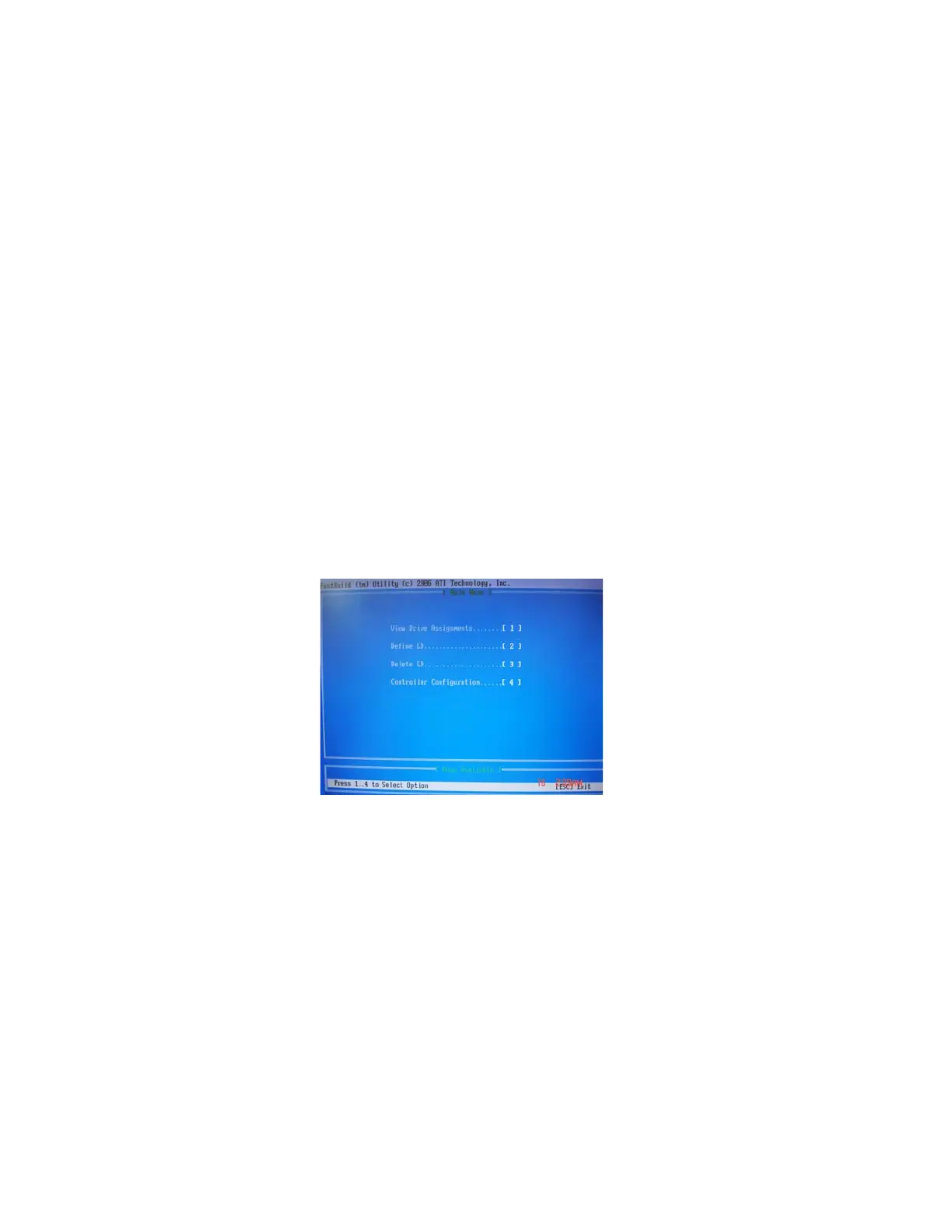

The Main Menu screen appears (Figure 1.3).
Figure 1.3 Main Menu

ECS A790GXM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Motherboard chipset	AMD 790GX
Audio output channels	7.1 channels
Motherboard form factor	ATX
PCI Express x16 slots	2
Controller interface type	AMD SB750
Controller 2nd interface type	JMB 361
Graphics card	Radeon HD 3300
RAID levels	0, 1, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
