56
AMD RAID Configuration
The South Onchip IDE Device window appears.

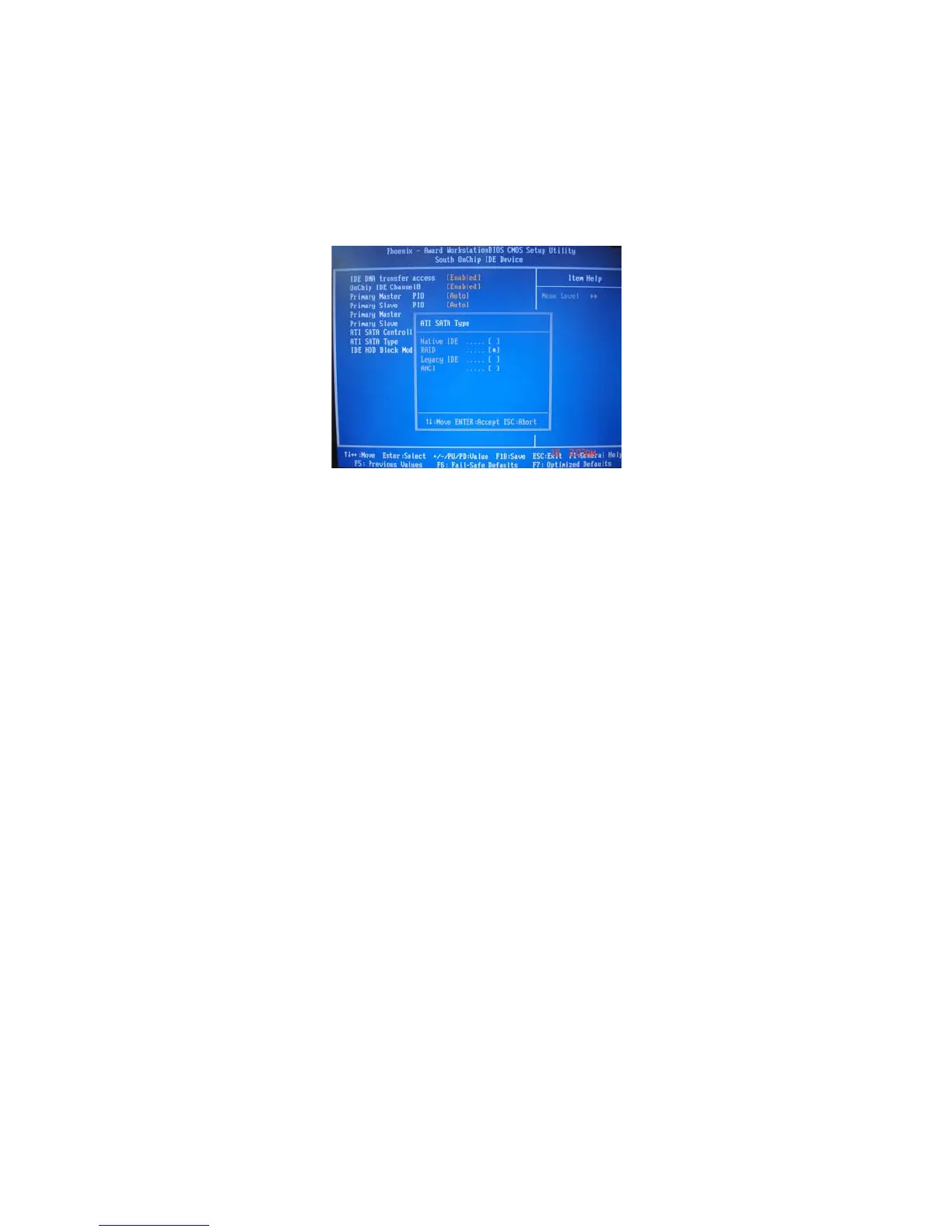

Figure 1.3 South Onchip IDE Device Screen
From the South Onchip IDE Device window, globally set ATI SATA Type to
RAID.
7
Enter the RAID BIOS Setup by pressing Ctrl-F when prompted, and proceed
to set up the AMD RAID BIOS as described in the next section.
The PC reboots.
Press F10 to save the configuration and exit.
Configuring the AMD RAID BIOS
The AMD RAID BIOS set up lets you choose the RAID type and which hard drives
you want to make part of the array.
Entering the RAID BIOS Setup:
1 Wait until you see the RAID software prompting you to press Ctrl-F.
The RAID prompt appears as part of the system POST and boot process
prior to loading of the OS. You have a few seconds to press Ctrl-F before the
screen disappears.
Press Ctrl-F.
5
6
2
