58
AMD RAID Configuration

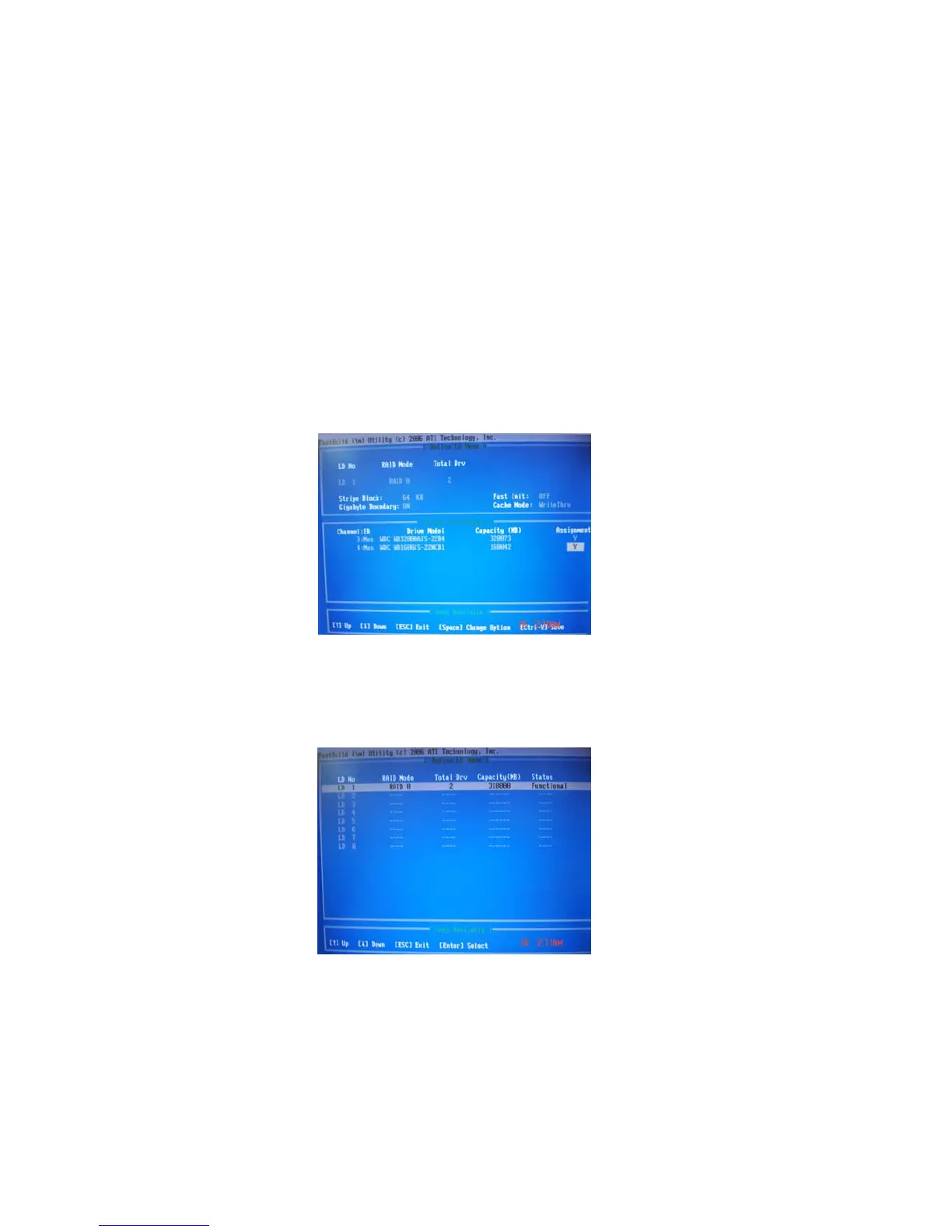

Figure 1.6 illustrates the Define a New Array screen after two disks have been
assigned as RAID 0 array disks.
Figure 1.6 FastBuild Utility—Array Disks Assigned
Assigning the Disks
1. Select the Assignment to Y to designate a free disk to be used as a RAID array disk.
2. Press Ctrl-Y to save the configuration and exit.
The Define LD Menu screen appears (Figure 1.7).
Figure 1.7 Define LD Menu
Stripe block size is given in kilobytes, and affects how data is arranged on the
disk. It is recommended to leave this value at the default Optimal, which is
64KB, but the values can be 64 KB and 128 KB. When choose RAID 1, the
Stripe block size is unchangable.
• Selecting the Stripe Block Size
