Chapter 2
20
B85H3-M USER MANUAL

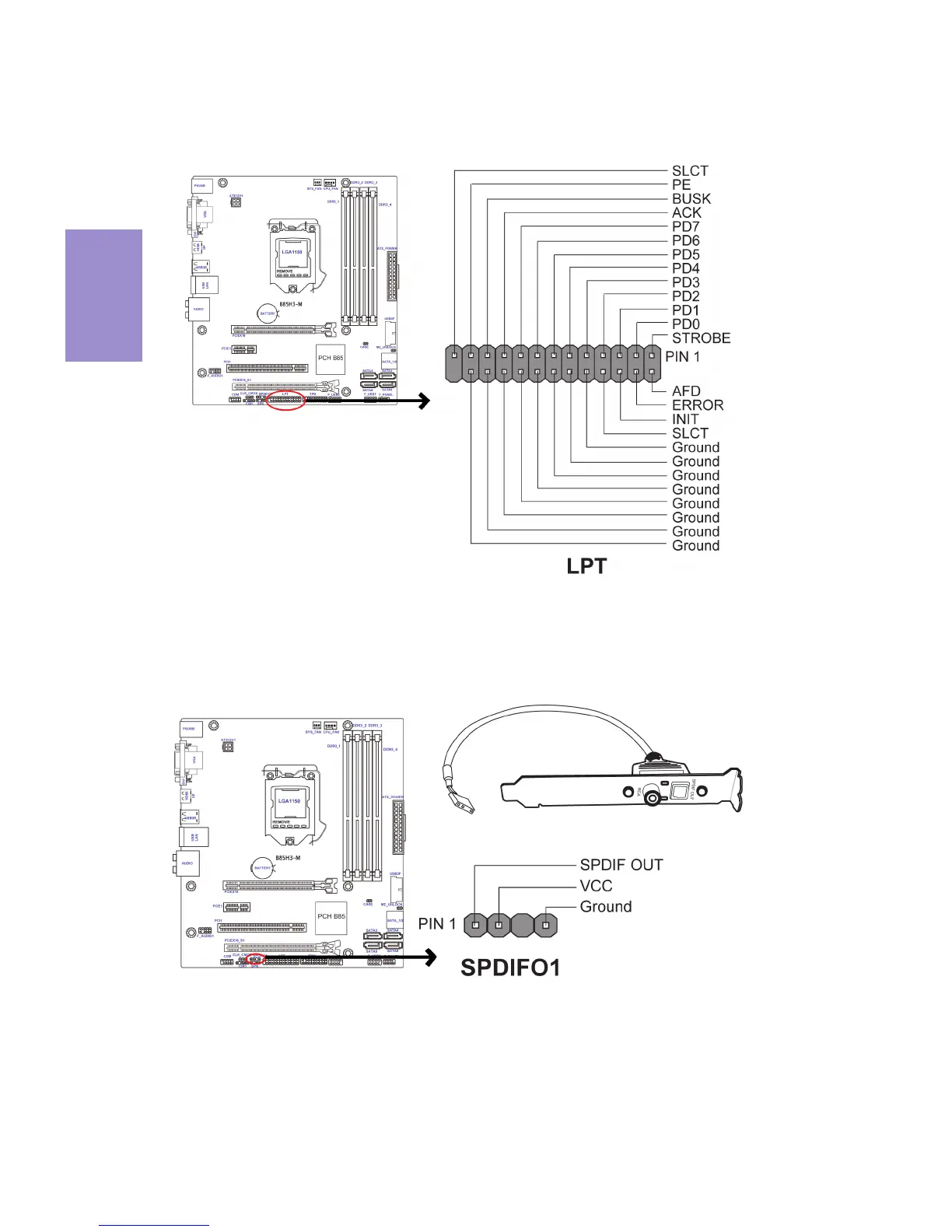

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)
output to digit
al multimedia device thr
ough optical fiber or c
oaxial connector
.
9. SPDIFO1: SPDIF out header
This is a header that c
an be used to connect t
o the printer
, scanner or other devices.
8. LPT
: Onboard parallel port header
23
25
