ECS G41T-M16 User Manual

16
Installing the Motherboard

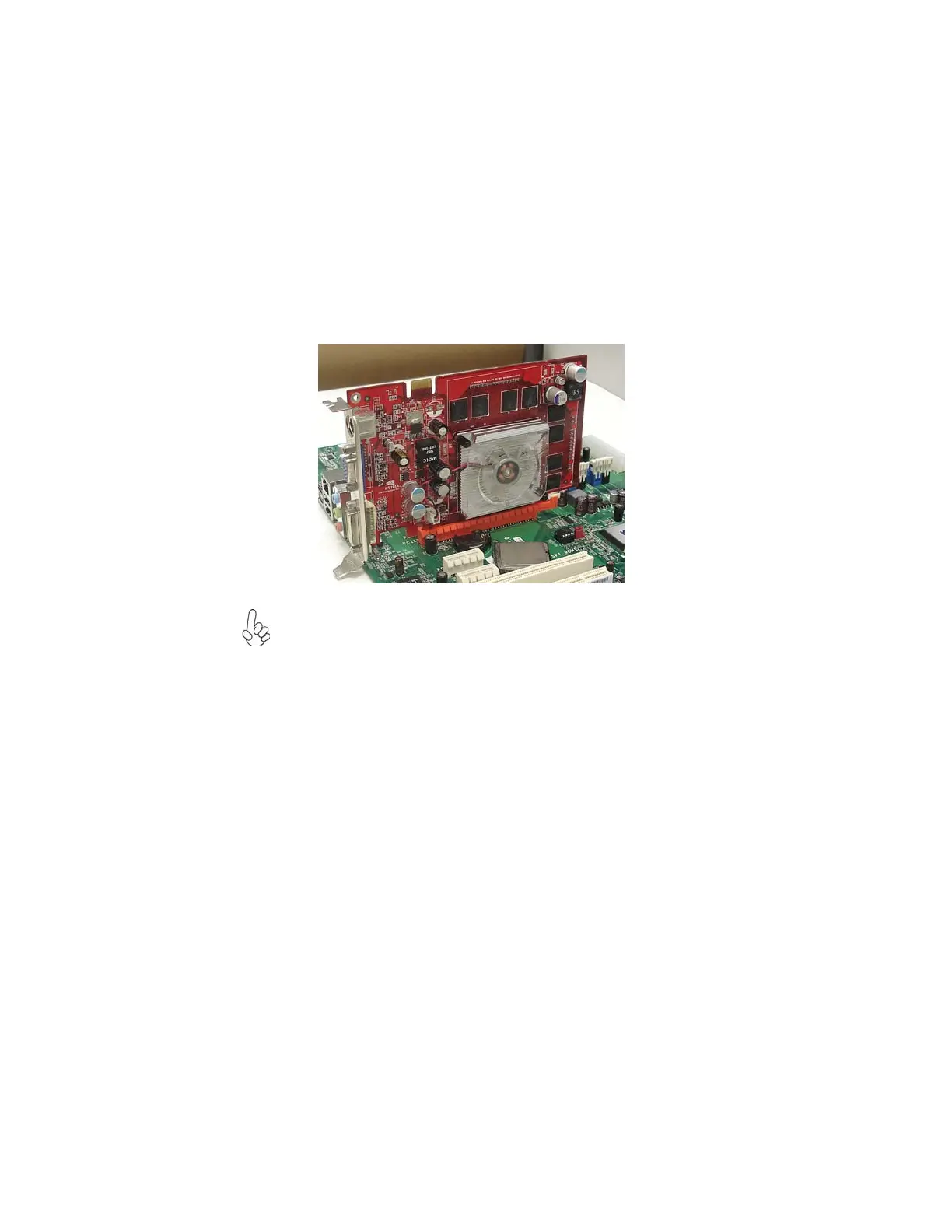

Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
2. The onboard PCI interface does not support 64-bit SCSI cards.
1. For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.

ECS G41T-M16 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
Integrated Graphics	Intel GMA X4500
Video Outputs	VGA
Audio	Realtek ALC662 6-Channel HD Audio
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Celeron
USB Ports	8 x USB 2.0
LAN	Realtek RTL8103EL, 10/100 Mbps Ethernet
