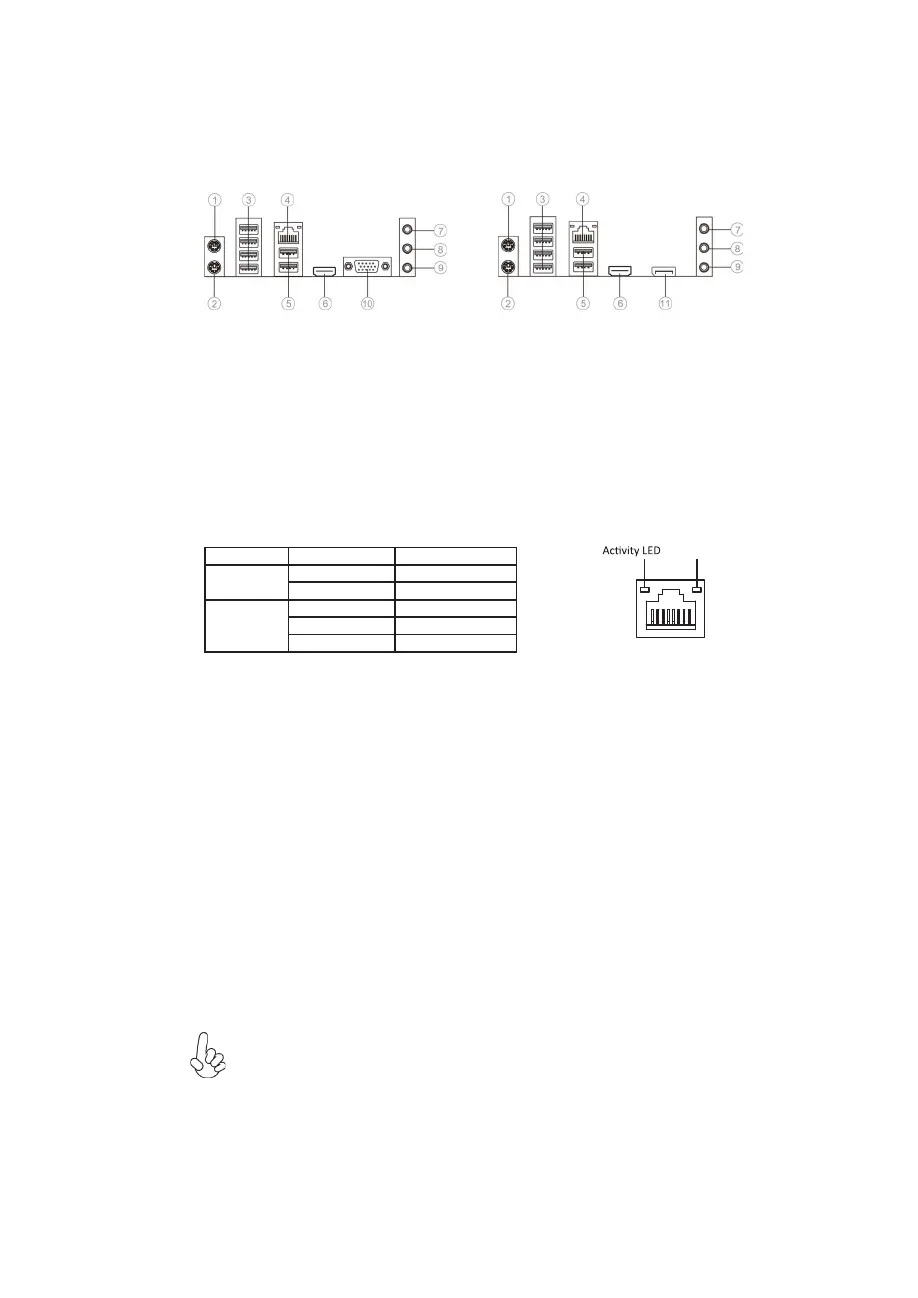

I/O Ports
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. USB 3.0 Ports
Use the USB 3.0 port to connect USB 3.0 device.
4. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
5. USB 2.0 Ports
Use the USB 2.0 port to connect USB 2.0 device.
6. HDMI Port
You can connect the display device to the HDMI port.
7. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
8. Line-out (green)
It is used to connect to speakers or headphones.
9. Microphone (pink)
It is used to connect to a microphone.
10. VGA Port* (optional)
Connect your monitor to the VGA port.
11. DP Port* (optional)
You can connect the display device to the display port.
Link LED
LAN Port
Note: * VGA port(rear panel I/O) and DP port (rear panel I/O) are alternative
options of the motherboard.
LAN LED Status Descri
p
tion
OFF No da ta
Oran
g
e blinkin
g
Active
OFF No link
Green Link
(
10
/
100
p
ort
)
Oran
g
eLink
(
Gi
g
a
p
ort
)
Activity LED
Link LED
or
