ECS GLKD-I2 User Manual

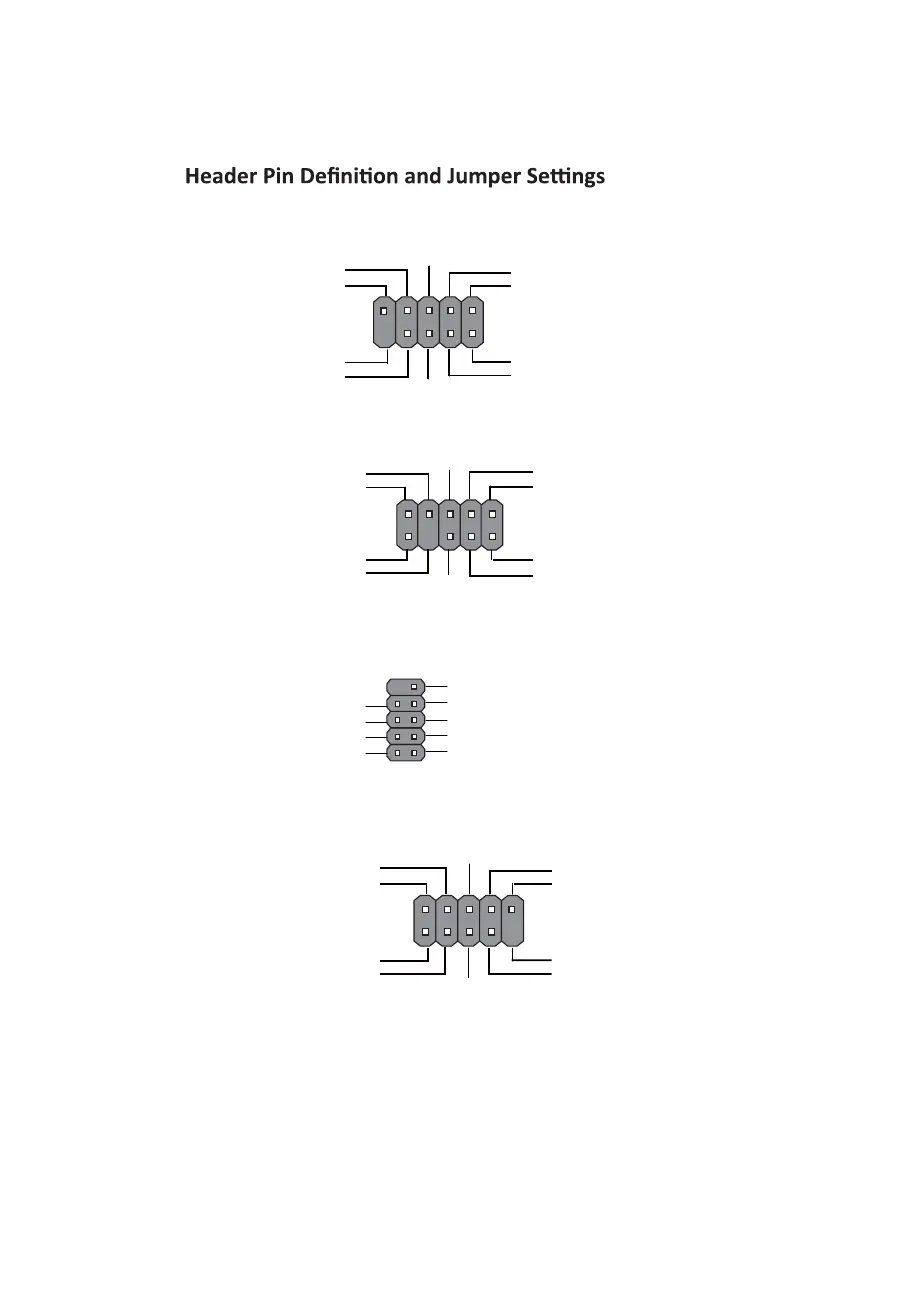

GLKD-I2 USER MANUAL
F_AUDIO
F_USB1~2
COM1~2
F_PANEL
1
Serial Output
Data Carrier Detect
Serial Input
Ring Indicator
Data Terminal Ready
Clear to Send Request to Send
Data Set Ready
Ground
1
9
NC
KEY
Ground
Power +5V
Power +5V
GroundUSB Port A (-)
USB Port B (-)
USB Port A (+)
USB Port B (+)
1
PORT 1L
PORT 1R
PORT 2R
AUD_GND
AUD_GND
PRESENCE#
SENSE1_RETURN
Key
SENSE2_RETURN
PORT 2L
KEY
1
Hard disk LED (-)
Hard disk LED (+)
Reset Switch (-)
Reset Switch (+)
Reserved
Power Switch (-)
Power Switch (+)
MSG LED (+)
MSG LED (-)
5

ECS GLKD-I2 Specifications

General

Brand	ECS
Model	GLKD-I2
Category	Computer Hardware
Language	English
