ECS H55H-M User Manual

15
Installing the Motherboard

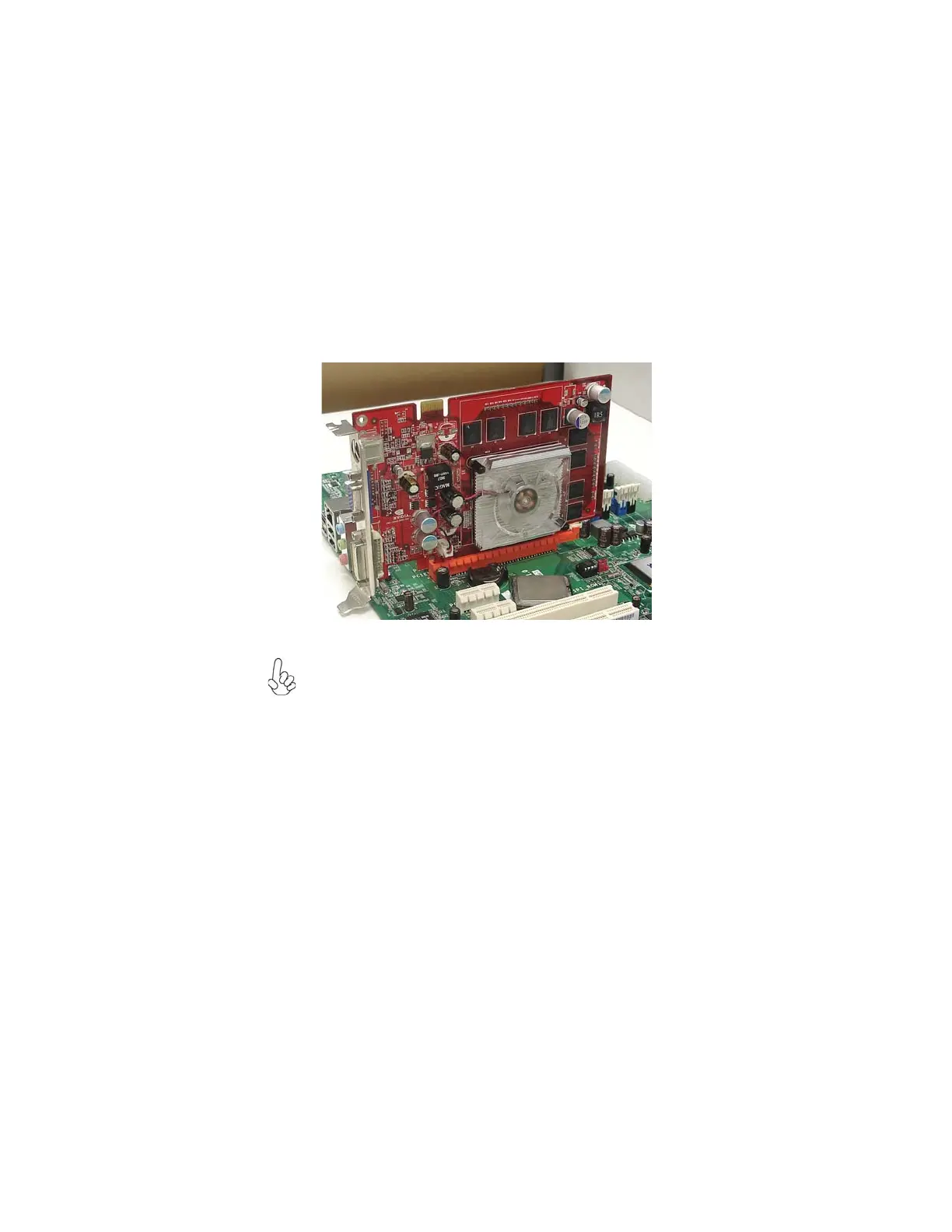

Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
2. The onboard PCI interface does not support 64-bit SCSI cards.
1. For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.

ECS H55H-M Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 1156 (Socket H)
Processor manufacturer	Intel
S/PDIF out connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
LAN controller	Atheros AR8131M
Networking features	Gigabit Ethernet
ACPI version	3.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	200 mm
Width	244 mm
