English

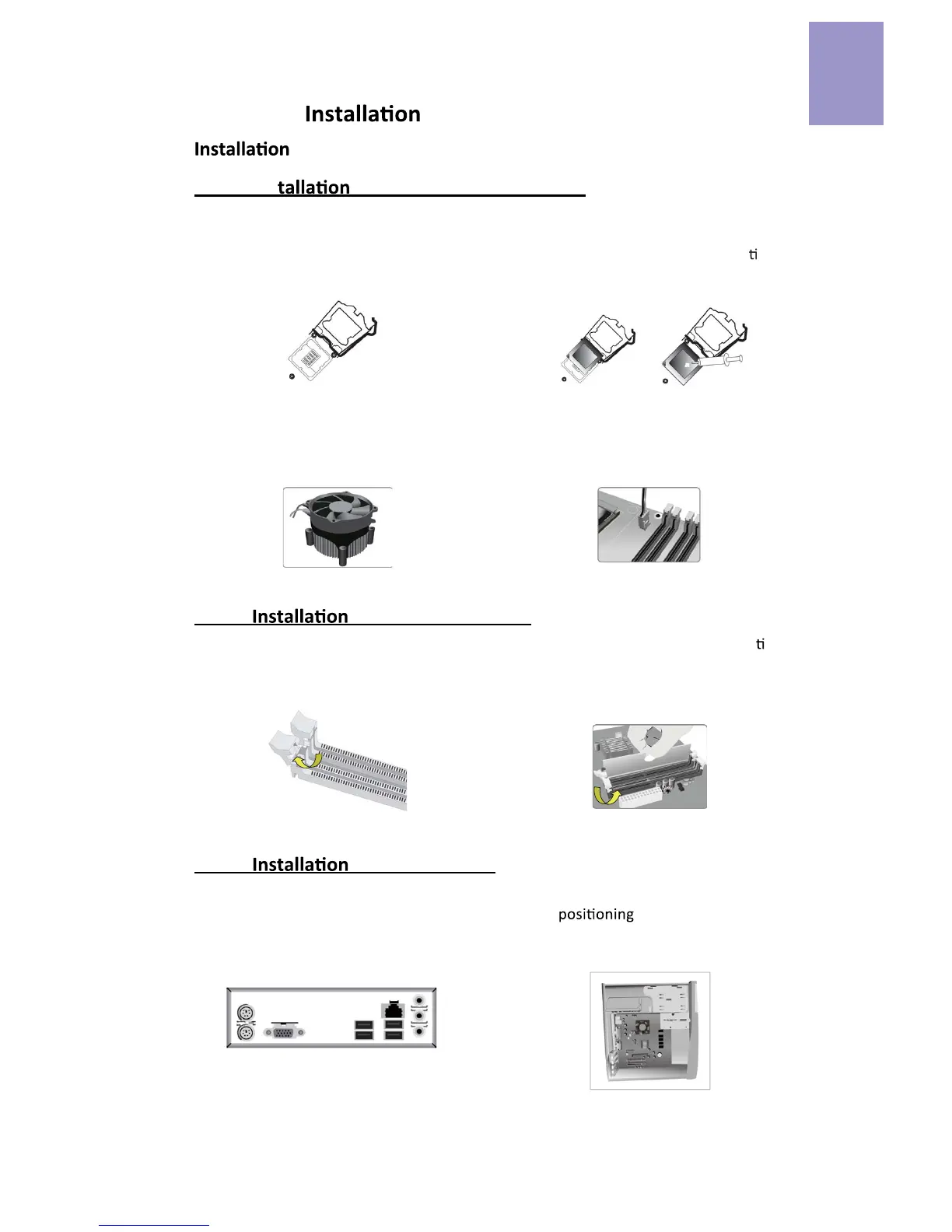

Step1. Ins of the CPU and CPU Cooler:

Hardware Guide

Steps

1-1. Pull up the lever away from the

socket.

Step2. of Memory Modules:

2-1. Unfasten the latches on each side

of the DIMM slots.

Step3. of Motherboard:

3-1. Replace the back I/O plate of the

case with the I/O shield provided in

motherboard’s package.

1-2. Align the CPU cut edge with the

indented edge of the CPU socket. Gently

place the CPU into correct posi

on.

Apply an even layer of thermal grease

on the surface of CPU.

1-3. Rotate and press down the

fastener of CPU fan to the motherboard

through holes to install CPU fan into

place.

1-4. Connect the CPU cooler power

connectortotheCPU_FANconnector.

2-2. Firmly press the DIMM down un

lit

seats correctly. Make sure the slot

latches are levered upwards and latch

on the edge of the DIMM.

3-2. Place the motherboard within the

case by

it into the I/O plate.

Secure the motherboard to the case

with screws.

Questions and Answers:

Need help?

Do you have a question about the ECS H61H2-MV and is the answer not in the manual?

ECS H61H2-MV Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Serial port headers	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC662
Certification	CE/FCC, ErP/EuP, WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 8, Windows 8 x64, Windows XP Home, Windows XP Home x64
DirectX version	11
Parallel processing technology support	Not supported
BIOS type	AMI
BIOS memory size	64 Mbit
Trial software	Muzee
Bundled software	eBLU, eDLU, eSF\\r Norton Internet Security, CyberLink PowerDVD, CyberLink PowerDirector 9
