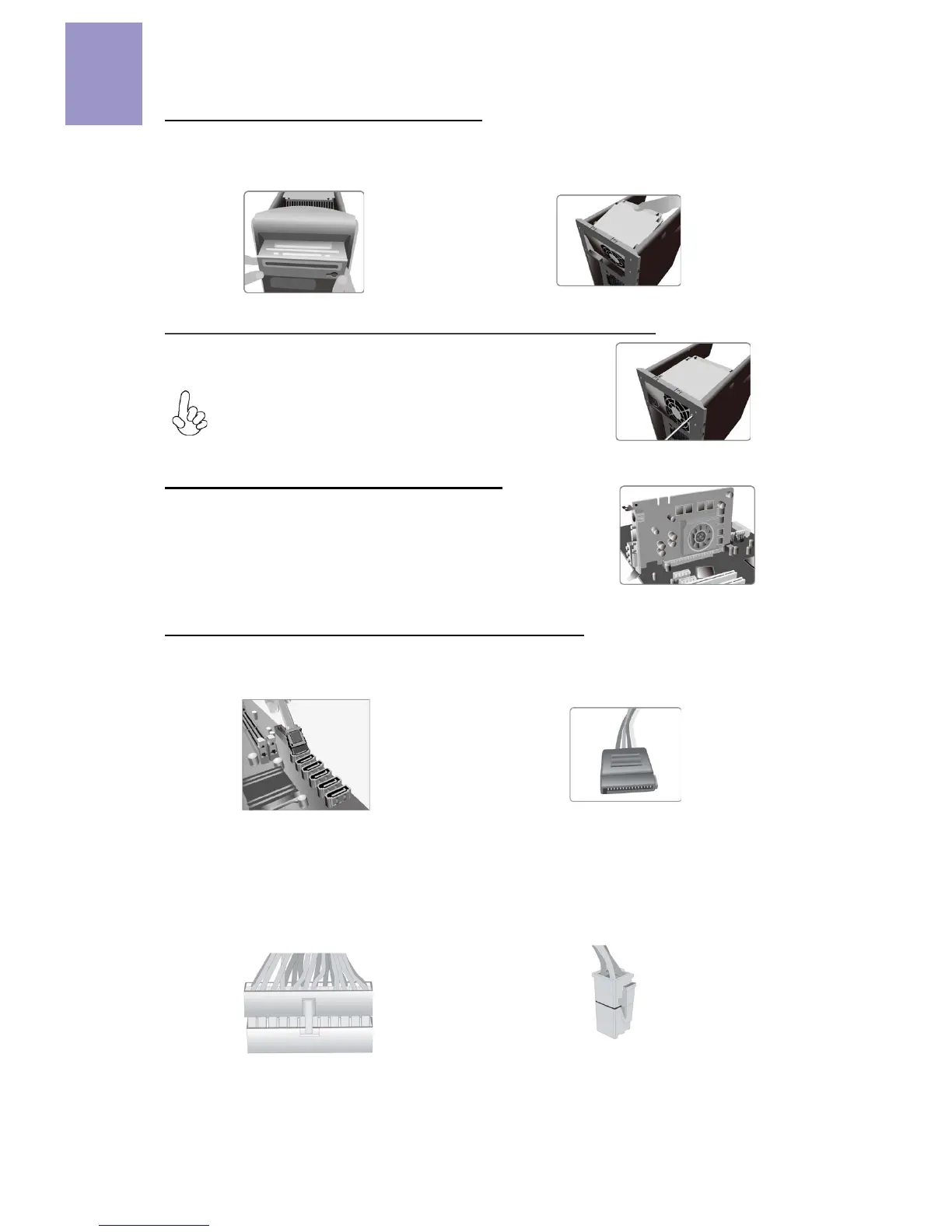

Step4. Installation of storage devices:

Step5. Case Preparation and Installation of Power Supply:

It is recommended to use a power supply delivering

more than 300W of power. Insufficient power supply

may cause unstable boot-up.

Step6. Installation of an Expansion card:

Step7. Connecting Cables and Power Connectors:

Remove the metal located on the slot and then insert the

expansion card into the slot. Press the card firmly to make

sure it is fully inserted into its slot. And then return the

screw back to its position.

4-1. Please remove the front cover and

5.25’’ plate from the case.

Remove both sides and the lid of the case, and then install

the power supply with screws.

c. Connect 24-pin power cable

The ATX_12V 4-Pin power connector is used

to provide power to the CPU. When installing

4-pin power cable, the latch of power cable

matches the ATX_12V connector perfectly.

b. Connect SATA power connector to the

SATA device

a. Connect the SATA hard drive to its

SATA cable

4-2. Place the storage devices (IDE/

SATA/FDD) in its position within the case

and secure the device with screws.

d. Connect 4-pin power cable

Please note that when installing 24-pin

power cable, the latches of power cable

and the ATX connector match perfectly.
