Chapter 2
22
KAM1-I USER MANUAL
The A
TX 24-pin connector allows y
ou to c
onnect to A
TX v2.x power supply
.
With A
TX v2.x power supply
, users please
note that when installing 24-pin power
cable, the latches of power cable and the
A
TX match perfectly
.

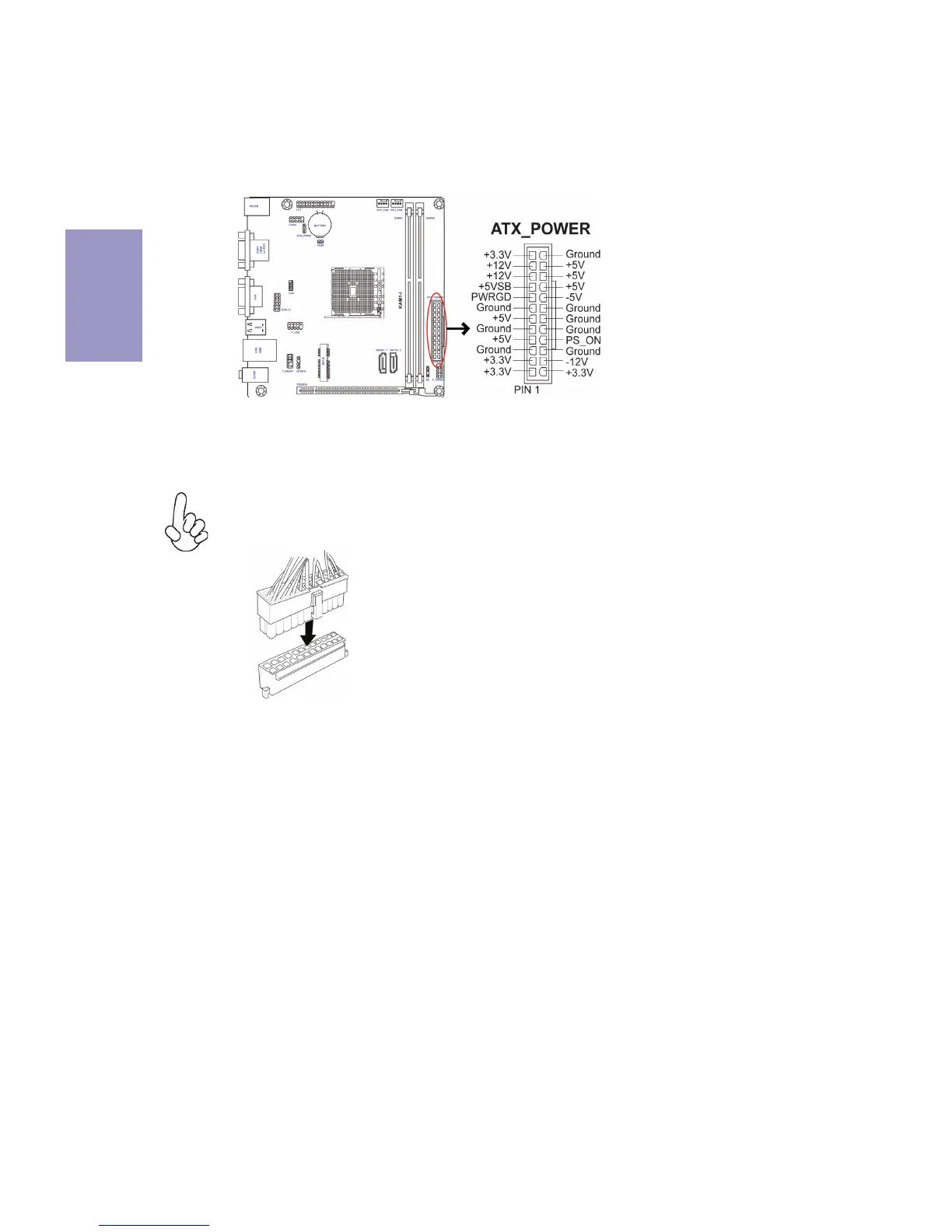

Connecting 24-pin power cable
24-pin power cable
3. A
TX_POWER (A
TX 24-pin Power Connect
or)
Connect the standar
d power supply connect
or to
A
TX_POWER
.
26
28
