22
Installing the Motherboard

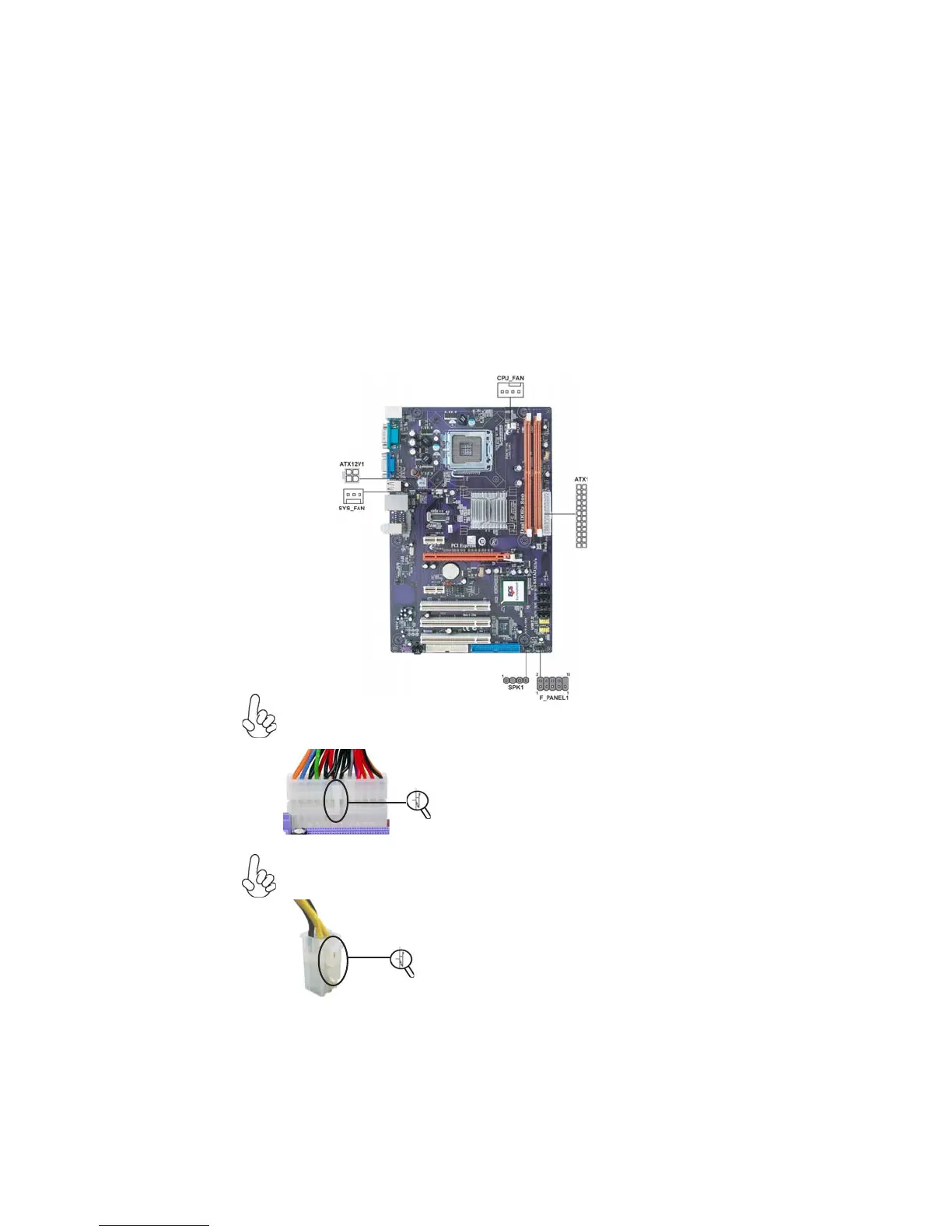

Connecting Case Components
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the system cooling fan connector to SYS_FAN.
3 Connect the case switches and indicator LEDs to the F_PANEL1.
4 Connect the case speaker cable to SPK1.
5 Connect the standard power supply connector to ATX1.
6 Connect the auxiliary case power supply connector to ATX12V1.
The ATX 24-pin connector allows you to connect to ATX v2.x power
supply.
With ATX v2.x power supply, users please note
that when installing 24-pin power cable, the
latches of power cable and the ATX1 match
perfectly.
1. Connecting 24-pin power cable
24-pin power cable
The ATX12V1 power connector is used to provide power to the CPU.
When installing 4-pin power cable, the latches
of power cable and the ATX12V1 match per-
fectly.
2. Connecting 4-pin power cable
4-pin power cable
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
To Next Page
