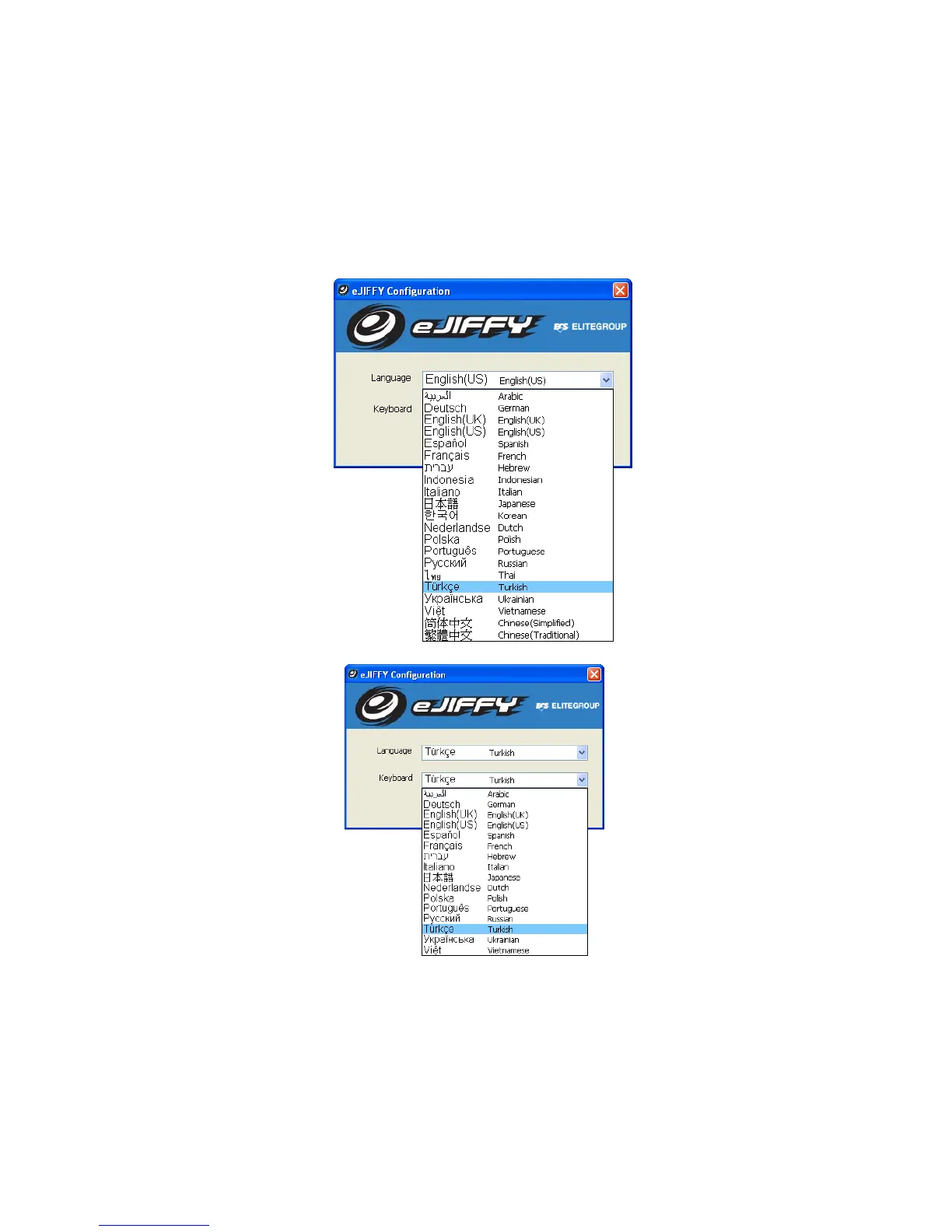

Setting Up eJIFFY
57
3.
After setting up eJIFFY
under W
indows, you can switch eJIFFY display/keyboard
language from English to your local language. The changes will be applied after
rebooting.
Note:
The keyboard language selection list offers several more regional keyboard
setups to switch with the default English typing. Please refer to the usage F
AQ for
more tips.
60
62
