ECTIVE SI Series User Manual

ECTIVE SI & TSI Series 37

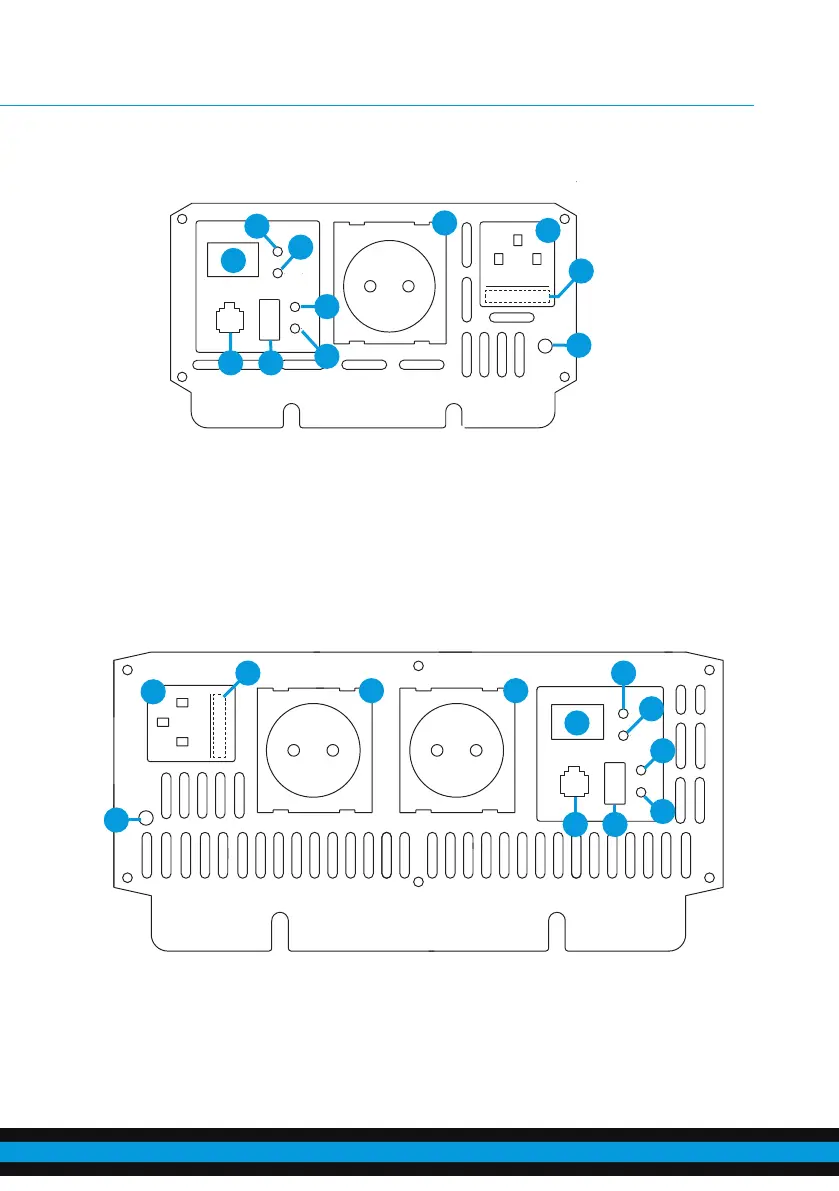

Front view: TSI 5 and TSI 10
1. Switch ECO/OFF/UPS
2. LED „Power“
3. LED „Fault“
4. LED „AC-In“
5. LED „By-Pass“
6. Remote control port
7. USB-port
8. Shore power
connection
9. Fuse
10. Protective earthing
11. 230 V power socket
Frontansicht: TSI 15, TSI 20 und TSI 25
1. Switch ECO/OFF/UPS
2. LED „Power“
3. USB-port
4. LED „Fault“
5. LED „AC-In“
6. LED „By-Pass“
7. Remote control port
8. Shore power
connection
9. Protective earthing
10. Fuse
11. 230 V power socket
37
4
2
8
9
1
5
6
10
1
8
3
9
2
5
6 7
4
10
11
11 11

ECTIVE SI Series Specifications

General

Waveform	Pure Sine Wave
Efficiency	>90%
USB Output	5V/2.1A
Input Voltage	12V / 24V / 48V DC (depending on the model)
Output Frequency	50Hz
Protection Features	Overload, overvoltage, overtemperature, short circuit
Cooling	Fan
Dimensions	Varies depending on the model.
Weight	Varies depending on the model.
