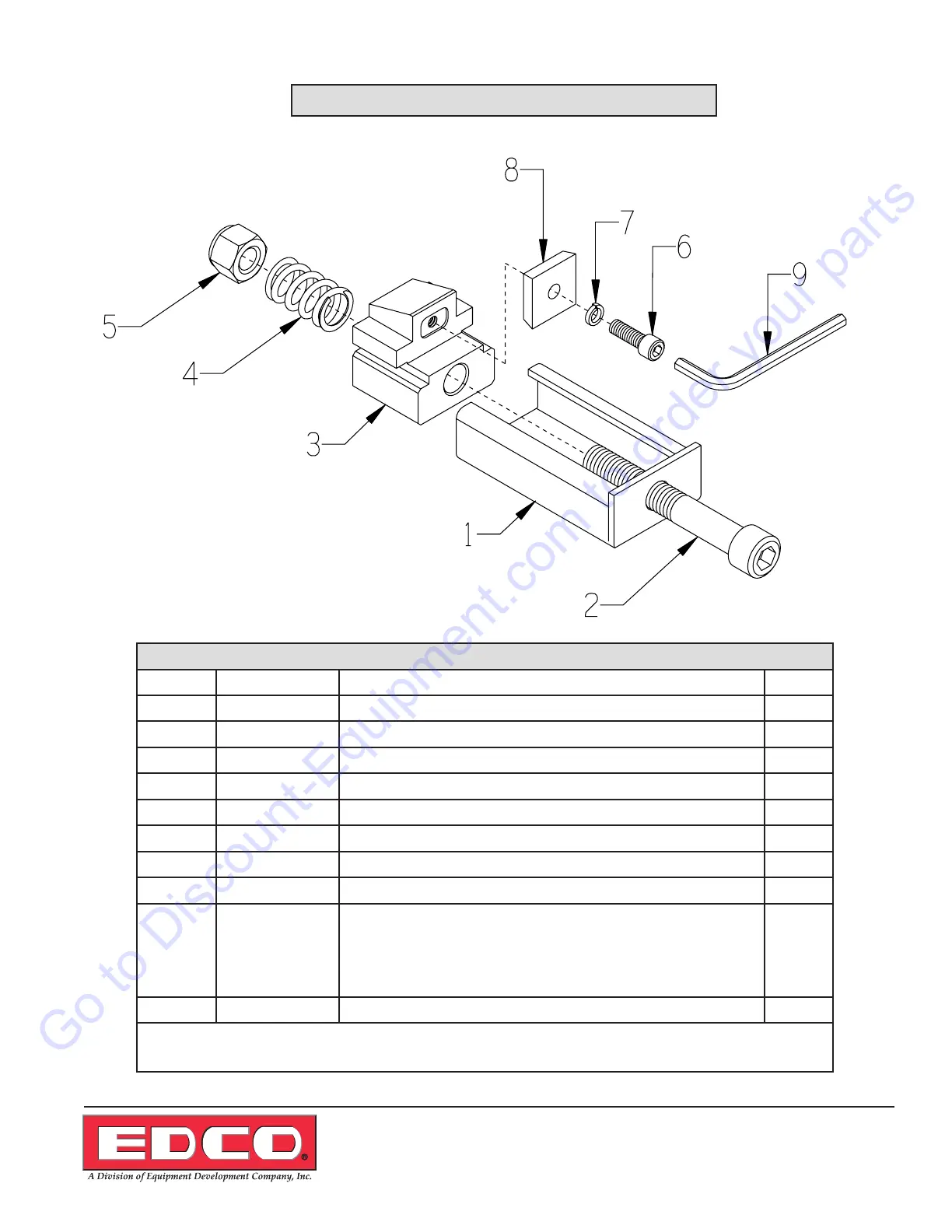

ILLUSTRATION 6: STRIP-SERT™ ASSEMBLY
ITEM # PART # DESCRIPTION QTY.
1-8 12400 STRIP-SERT ASSY.
WITH PRO TUNGSERT 6*
1-7 12401 STRIP-SERT ASSY.
WITHOUT PRO TUNGSERT 6*
1 12404 TUNGSERT HOLDER BOX, STRIP-SERT 1**
2 12405 SCREW, SKT.HD.CAP 1/2-13 X 3.5,GR.5 1**
3 12403 TUNGSERT BLOCK, STRIP-SERT 1**
4 12406 SPRING, COMP. .765”OD X 1.25”FL 1**
5 10155 NUT, HEX NYLON LOCK 1/2-13 1**
6 11573 SCREW, SKT. HD. CAP 1/4-20 X 3/4 1**
7 11688 WASHER, HI-COLLAR LOCK .26ID X .363 1**
8 12407 PRO TUNGSERT (PACK OF 6)
INCLUDES:
6 SCREWS & WASHERS, ITEMS 6 & 7 &
1 HEX WRENCH, ITEM 9.
1**
9 12413 WRENCH, HEX L-KEY 3/16”, SHORT-ARM 1
* QUANTITIES BASED ON 2-DISC GRINDER
** QUANTITIES BASED ON 1 STRIP-SERT ACCESSORY
