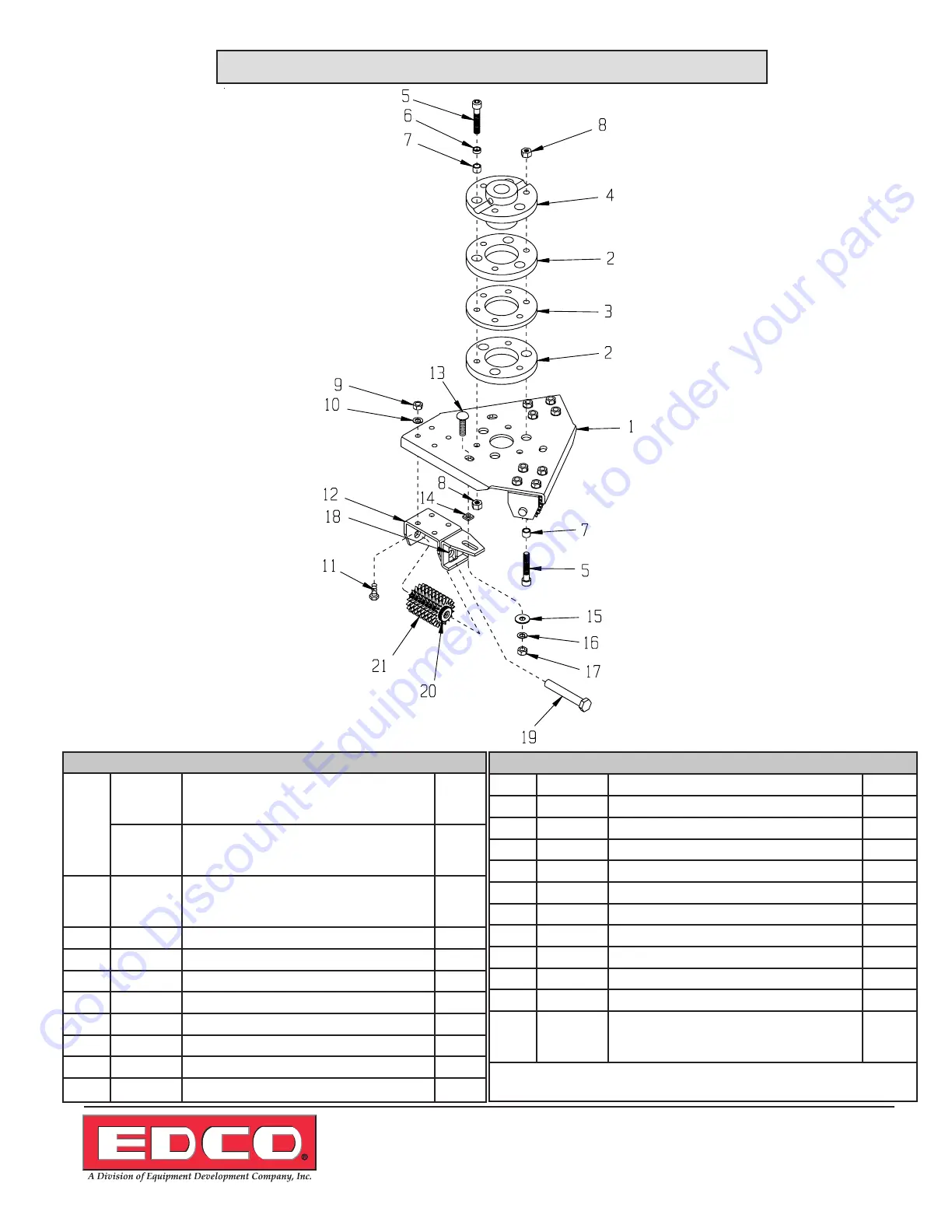

ILLUSTRATION 8: OPTIONAL SURFACER DISC ASSEMBLY
ITEM # PART # DESCRIPTION QTY.*
1-21
2222
2222C
DISC ASSEMBLY COMPLETE, R.H.
W/ STEEL CUTTERS.
W/ CARBIDE CUTTERS
1
3333
3333C
DISC ASSEMBLY COMPLETE, L.H.
W/ STEEL CUTTERS
W/ CARBIDE CUTTERS
1
1
77122
77133
DISC ONLY, SURFACER
RIGHT HAND DISC
LEFT HAND DISC
1
1
2 10112 RING, RUBBER 4-1/2”OD X 1/2”THK 2
3 77020 RING, HUB CARRIER, 6-HOLE 1
4 77010T HUB, CAST IRON, 6-HOLE 1
5 10114 SCREW, SKT. HD. CAP 3/8-24 X 2-1/4 6
6 10113 SPACER, STL. 9/16OD X 3/8ID X 7/32 3
7 10011 SPACER, STL. 5/8OD X 3/8ID X 3/8 6
8 10058
NUT, HEX LOCK 3/8-24 W/ NYLON PATCH
6
9 10054 NUT, HEX 5/16-18 ZINC 12
ITEM # PART # DESCRIPTION QTY.*
10 10801 WASHER, LOCK 5/16 ZINC 12
11 10048 SCREW, CAP 5/16-24 X 3/4 12
12 77074 HOLDER, CUTTER SHAFT 3
13 10802 BOLT, CARRIAGE 3/8-16 X 1 3
14 10089 CLIP, SPEED NUT 3/8 3
15 10025 WASHER, FLAT 3/8 SAE ZINC 3
16 10811 WASHER, LOCK 3/8 ZINC 3
17 10404 NUT, HEX 3/8-16 ZINC 3
18 77075 RETAINER, CUTTER SHAFT 3
19 77048 CG226 CUTTER SHAFT 1/2 X 3-1/4 3
20 12230 CG227 SPACER 1/2”ID 33
21
12206
20156
CUTTERWHEEL
JRS501P 2” POINTED STEEL
CP206T 1-3/4” 6-POINT CARBIDE
24
18
*QUANTITIES FOR ITEMS 2 THRU 21 ARE PER EACH DISC ASSEMBLY
1 RIGHT-HAND & 1 LEFT HAND DISC REQD. PER 2-DISC GRINDER
