Page 8

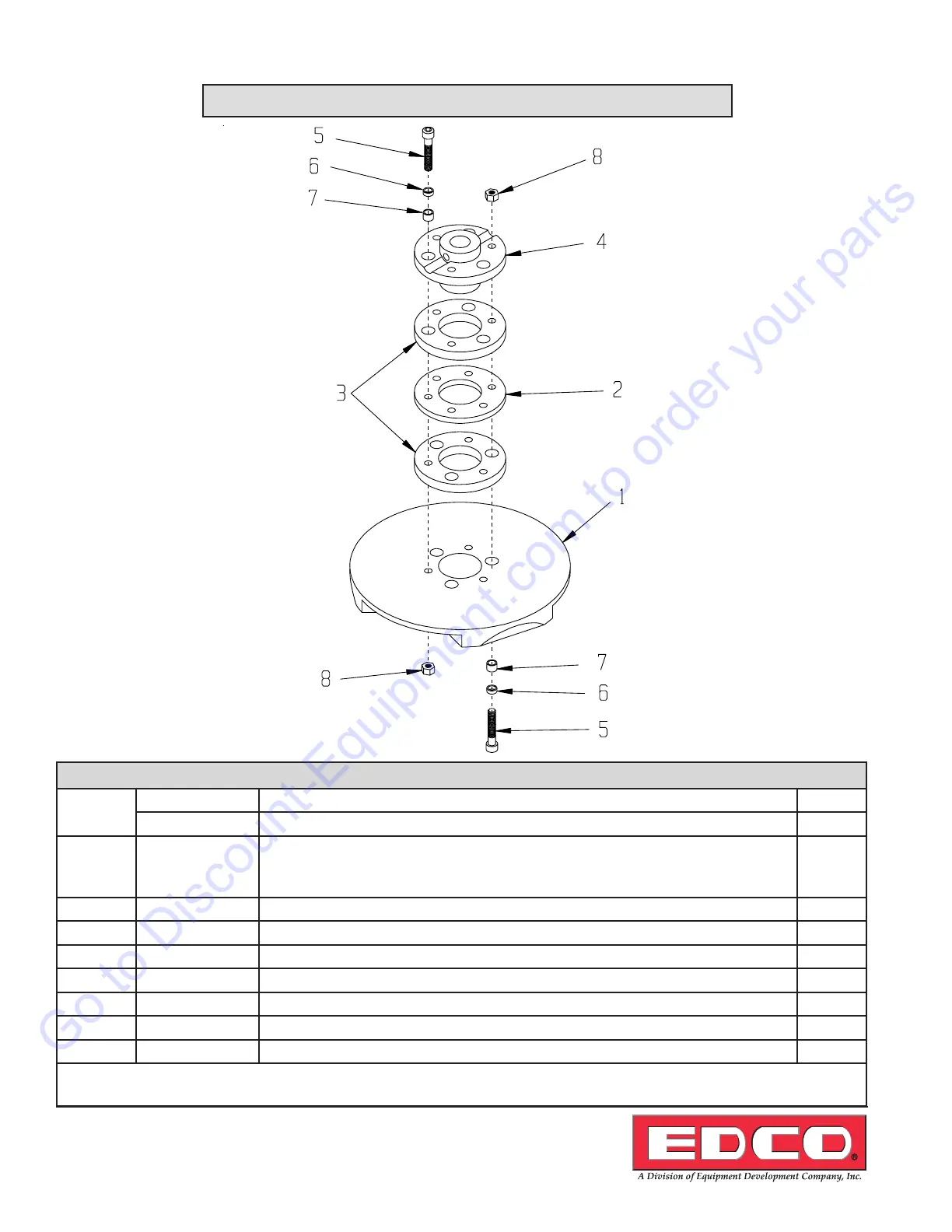

ILLUSTRATION 3: MULTI-ACCESSORY DISC ASSEMBLY
ITEM # PART # DESCRIPTION QTY.*
1-8
8888 DISC ASSEMBLY COMPLETE, RIGHT-HAND (ITEMS 1 THRU 8) 2
9999 DISC ASSEMBLY COMPLETE, LEFT-HAND (ITEMS 1 THRU 8) 2
1
77088
77099
MULTI-ACCESSORY DISC ONLY
R.H. FOR 8888 ASSEMBLY
L.H. FOR 9999 ASSEMBLY
1
1
2 77020 RING, HUB CARRIER, 6-HOLE 1
3 10112 RING, NEOPRENE, 4-1/2”OD X 1/2”THK 2
4 77010 HUB, ALUMINUM 6-HOLE (GRINDER) 1
5 10114 SCREW, SKT. HD. CAP 3/8-24 X 2-1/4 6
6 10113 SPACER, STEEL 9/16OD X 3/8ID X 7/32” 6
7 10011 SPACER, STEEL 5/8OD X 3/8ID X 3/8” 6
8 10058 NUT, HEX LOCK 3/8-24 W/ NYLON PATCH 6
*QUANTITIES FOR ITEMS 1 THRU 8 ARE PER EACH DISC ASSEMBLY
1 RIGHT-HAND & 1 LEFT HAND DISC REQUIRED PER 2-DISC GRINDER
6
5
--
~7
~
8
-----=::
~
7~
:
------·
'
4
3
i-----
2
'
'
'
7
8_--@
~
9
..
6
'
'
!
..
5
I
=I
•l3•J
