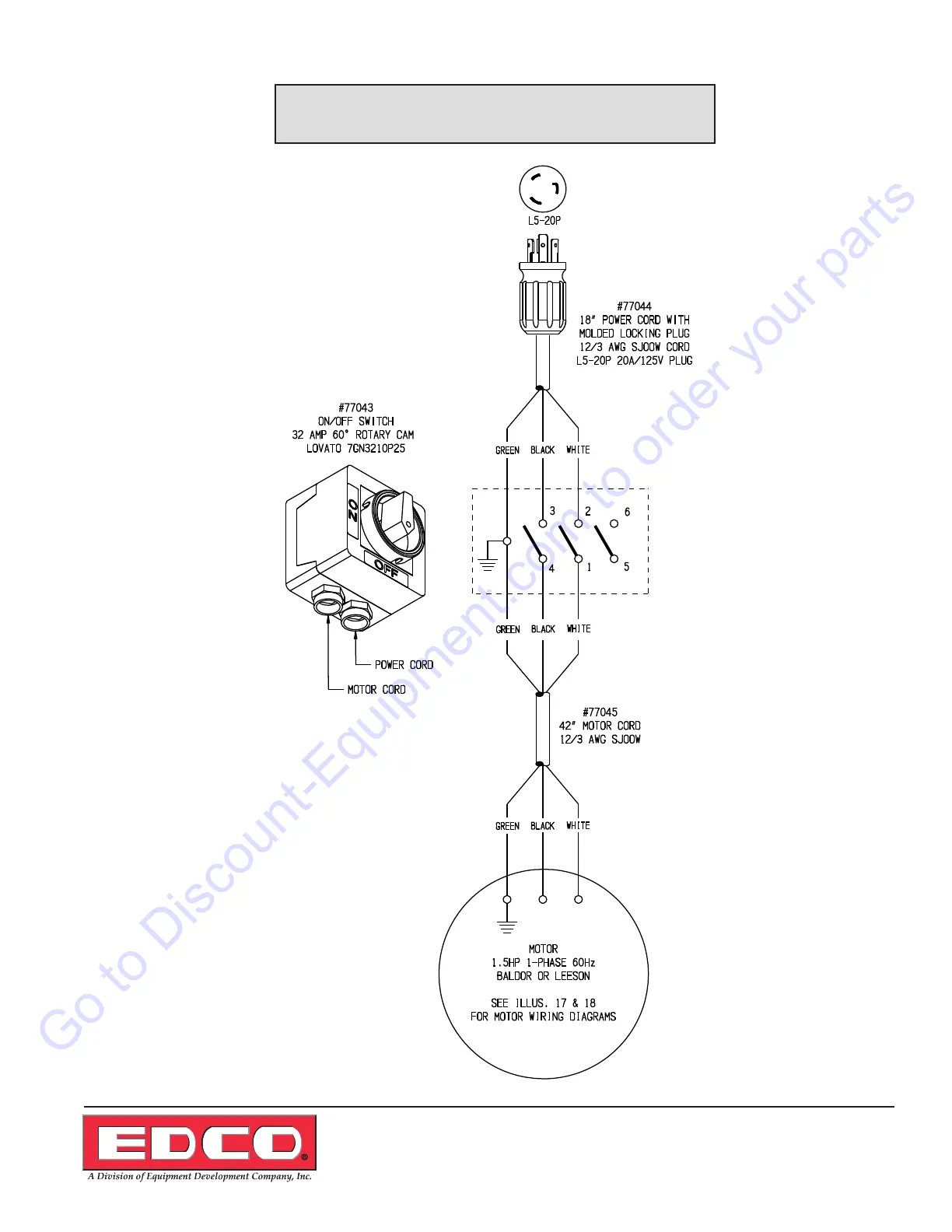

ILLUSTRATION 15:
SWITCH WIRING DIAGRAM FOR 1.5HP UNITS
#77043
ON/OFF SW ITCH
32 AMP 60° ROTARY CAM
LOVATO 7GN3210P25
MOTOR CORD
I 3 •l3•J
A Division of Equipment Development Company, Inc.
G
L5-20P
#77044
18' POWER CORO WITH
MOLDED LOCKING PLUG
12/3 AWG SJOOW CORD
L5-20P 20A/125V PLUG
GREEN BLACK WH llE
1 = 4 I 5 1
I ___ - ---------~
GREEN BlA()( WHITE
#77045
42' MOTOR CORD
12/3 AWG SJOOW
GREEN BLACK WH llE
MOTOR
1.5HP I-PHASE 60Hz
BALDOR OR LEESON
SEE ILLUS. 17 & 18
FOR MOTOR WIRING DIAGRAMS
