Edco 39200HD - Operation Controls

HD-KL14-0124
Page 9

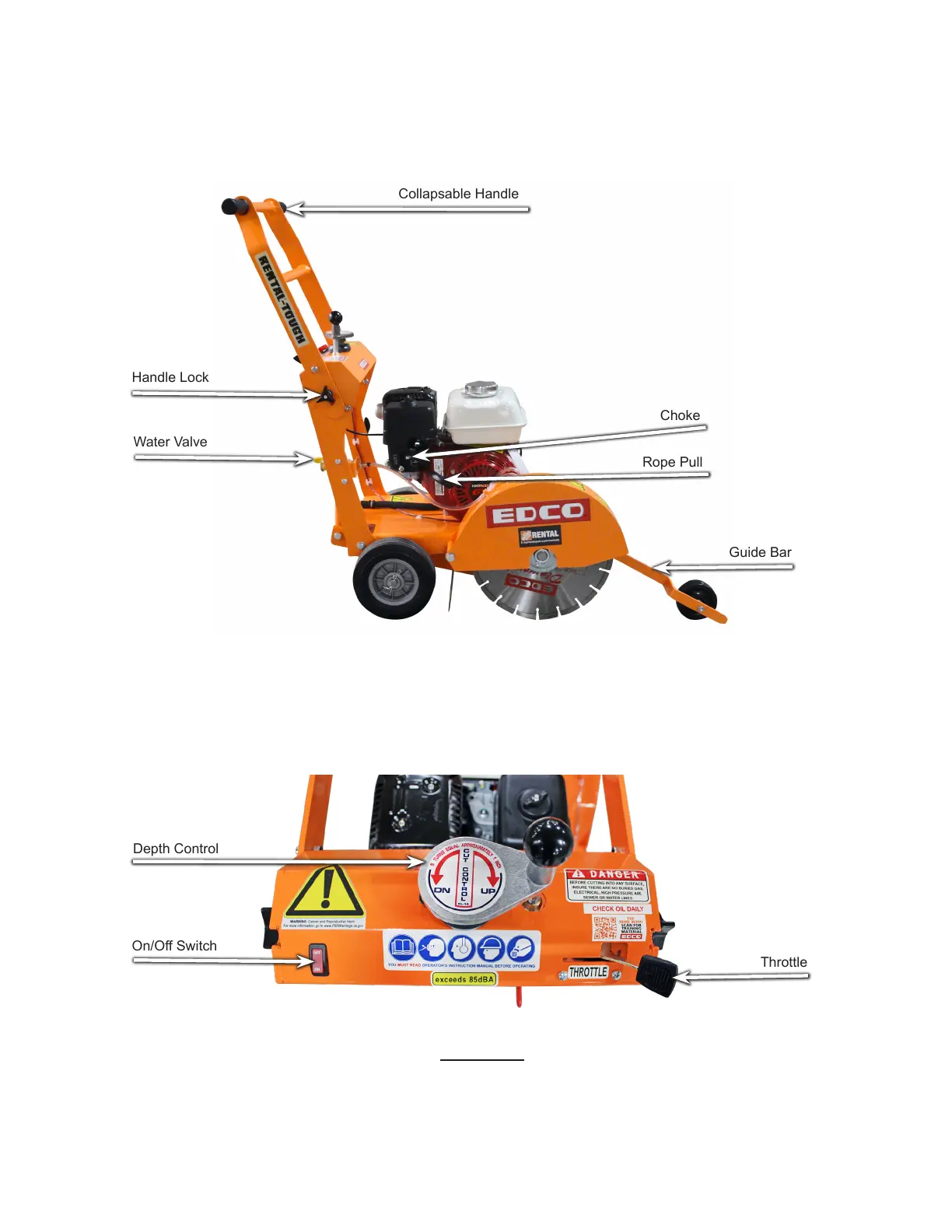

OPERATING CONTROLS
MODEL KL-14 / 14” WALK BEHIND SAW
Collapsable Handle
Choke
Guide Bar
Rope Pull
Handle Lock
Water Valve
Throttle
Depth Control
On/O󰀨 Switch
Please Note:
Controls shown are for the model indicated.
The location of these controls may vary on the di󰀨erent models.
Due to improvements and changes in the equipment, the illustration shown may be di󰀨erent from the actual machine.
