10
Connector Signal Description 4/4

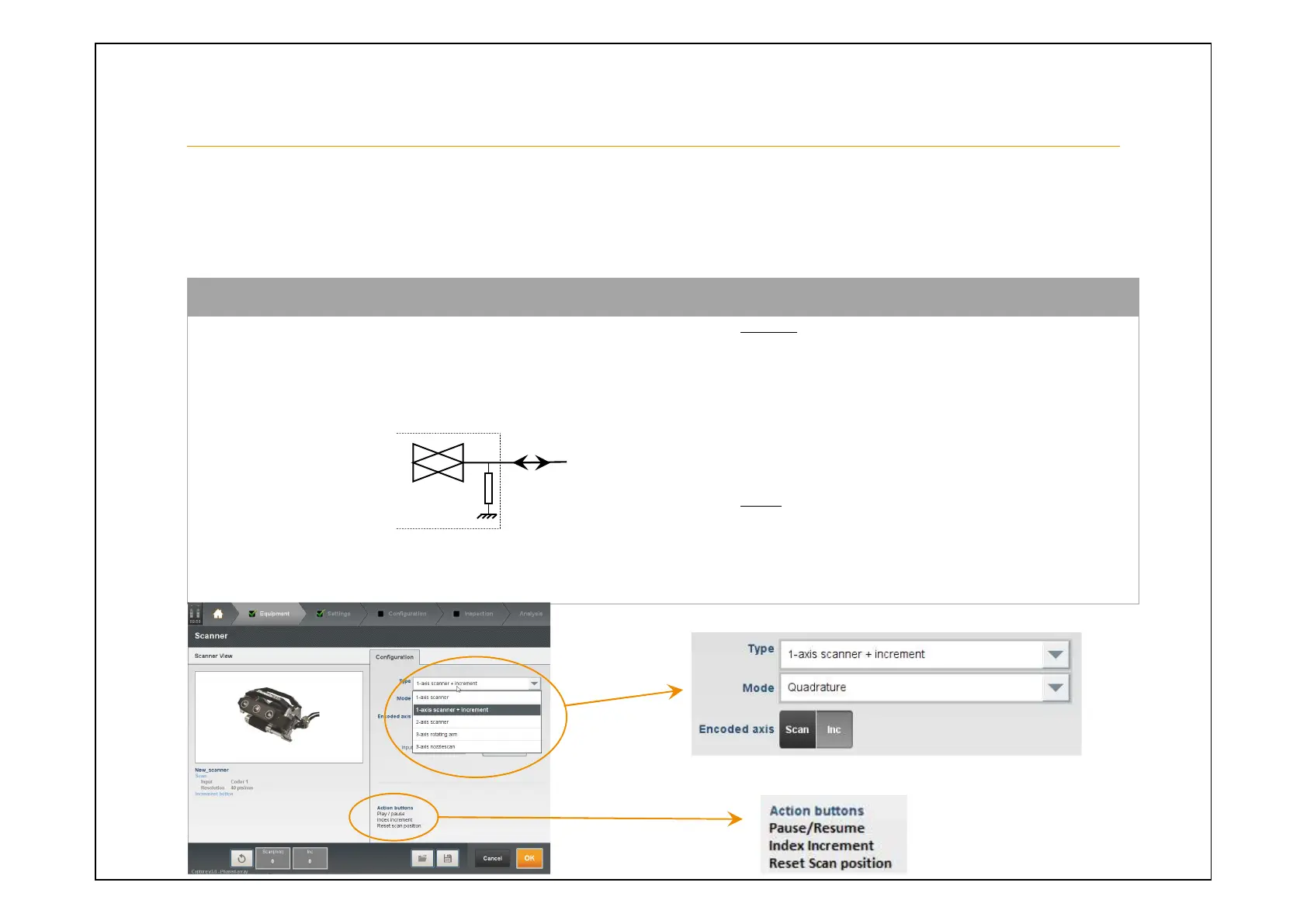

4. ENCODER CONNECTOR
Signal Name Description User matching signal
Synchro2
Synchro2 Input/Output
TTL 5V
- If configured as OUTPUT (see in Capture software as below,
Type ≠ “1-axis encoder +increment”)
- TTL 5V
- = PRF = 5V/100ns pulse generated with each Pulser signal (IPEX
connector).
- Signal can be used to synchronize an external system
- Jitter = 10ns.
- Absolute Max output current +/-50 mA
- If configured as INPUT (see in Capture software as below,
Type = “1-axis encoder +increment”)
- TTL 5V, active on High level
- Max Input current 50µA
- When connected to Phased Array Wheel probe, Synchro2 is used as
« Pause/Resume » to toggle Pause/Resume.
100 KΩ
To Next Page
