7

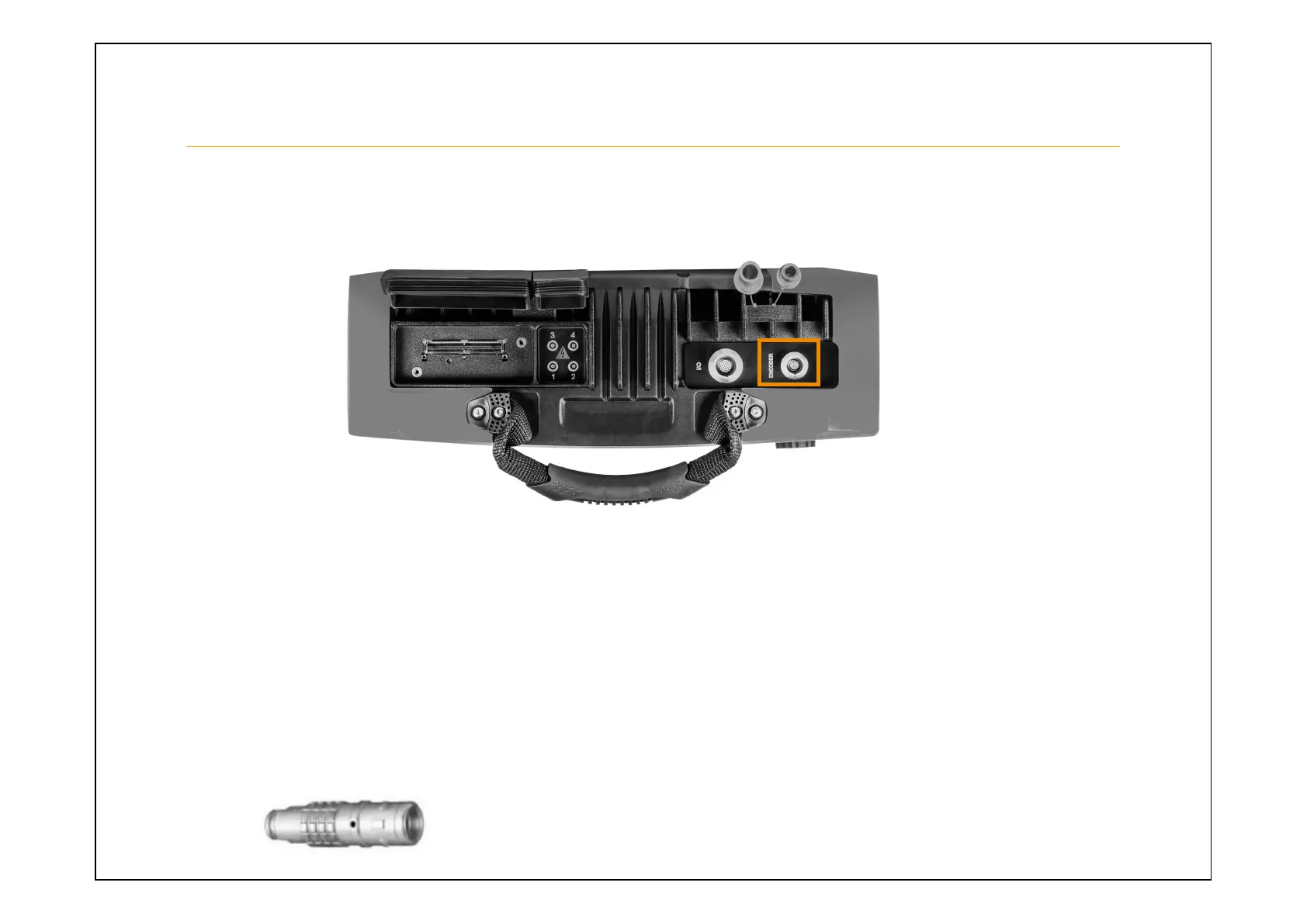

Connector Location
• CONNECT UP TO 3 DIFFERENT ENCODERS:
- +5V TTL inputs
- quadrature mode or clock/dir mode
- Number of available encoders : 2 or 3 depending on
software setup and option.
• INPUTS/OUTPUTS :
- 2 TTL inputs
Connector Information
Supplier: Connector type LEMO EGG
Reference: EGG.1K.316.CLL
Matching Cable
Supplier: LEMO (Connector Male 16 Pin)
Reference: FGG.1K.316.CLAC65Z
4. ENCODER CONNECTOR
Connector Utility
