Connector description
USB
• 1x USB3.0: high-speed USB, up to 625 MB/s data transfer (depending
on the USB3.0 flash drive capabilities)
• 3x USB2.0: up to 30MB/s data transfer
• USB 5VDC protected at 0.5A, by resettable fuse (system reboot
required).
MICRO DISPLAY PORT OUTPUT
• 1x micro display port for video output
The external screen will be automatically detected by the GEKKO system
and will keep same screen resolution as GEKKO (1024x768).
ETHERNET
• When plugged to a network, the GEKKO appears with the name
GEKKKO-XXXX and the « Capture files» folder is shared with anybody:
Refer to EDDYFI procedure:
- PRO_GEKKO_INS_022-SHARING-USER-GUIDE
- PRO_GEKKO_INS_027_GEKKO_V2_Connectivity_US-A
• The ethernet controller is 1Gb/s speed.
*When the I/O hatch is closed, the I/O connector area is waterproof.

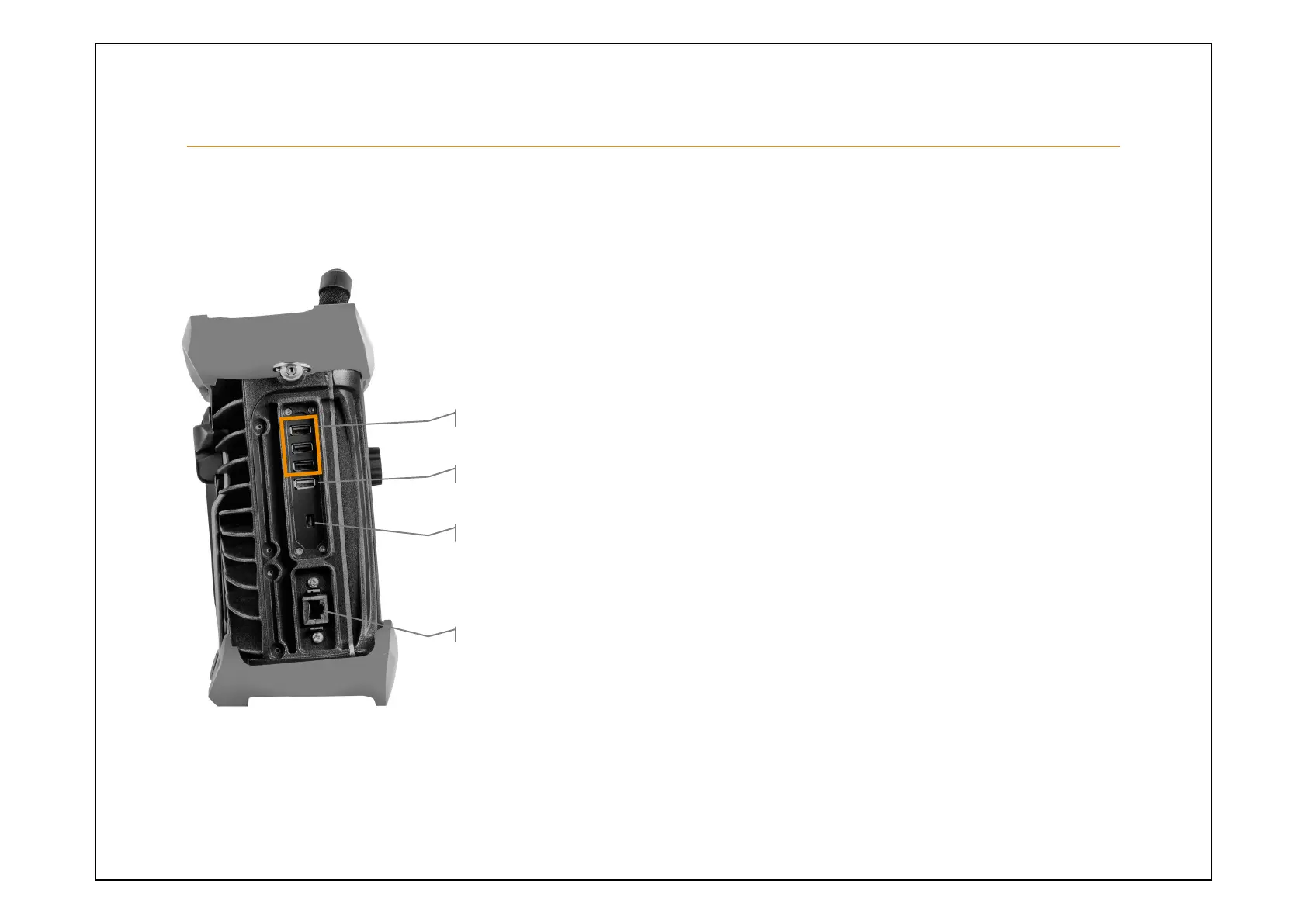

Connector Location
5. I/O CONNECTORS
MINI DISPLAYPORT
ETHERNET
3x USB 2.0
USB 3.0
To Next Page
