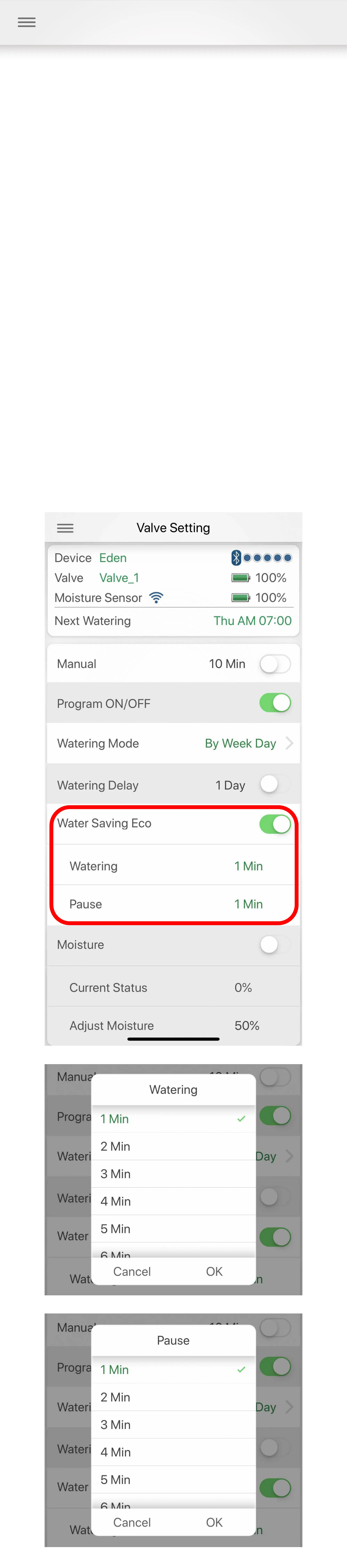

Set Eco function by sliding the bar to the right.
The Eco Function creates a pause in the watering
cycle, which provides absorption time for the soil. It
can also prevent water run-off
Set the water duration and pause duration according
to the watering needs.
“Water Min” and “Pause Min” can be customized
according to different watering applications (ie:
irrigation or lawn & garden), landforms (ie: at or
mountain slope) and soil density (ie: high as soil or
low as sand). 3. Examples and suggestions as below:
A. Irrigation: Water 5 MIN PAUSE 2 MIN
B. Lawn: Water 4 MIN PAUSE 1 MIN
C. Lawn slope: Water 2 MIN PAUSE 2 MIN
Note: you can skip this setting if no needed.
Note: once the ECO function is activated, the set
intervals is applied on all the set water cycles
User’s Guide
Set Eco Water Saving:
