Quick Start Guide
– 3 –

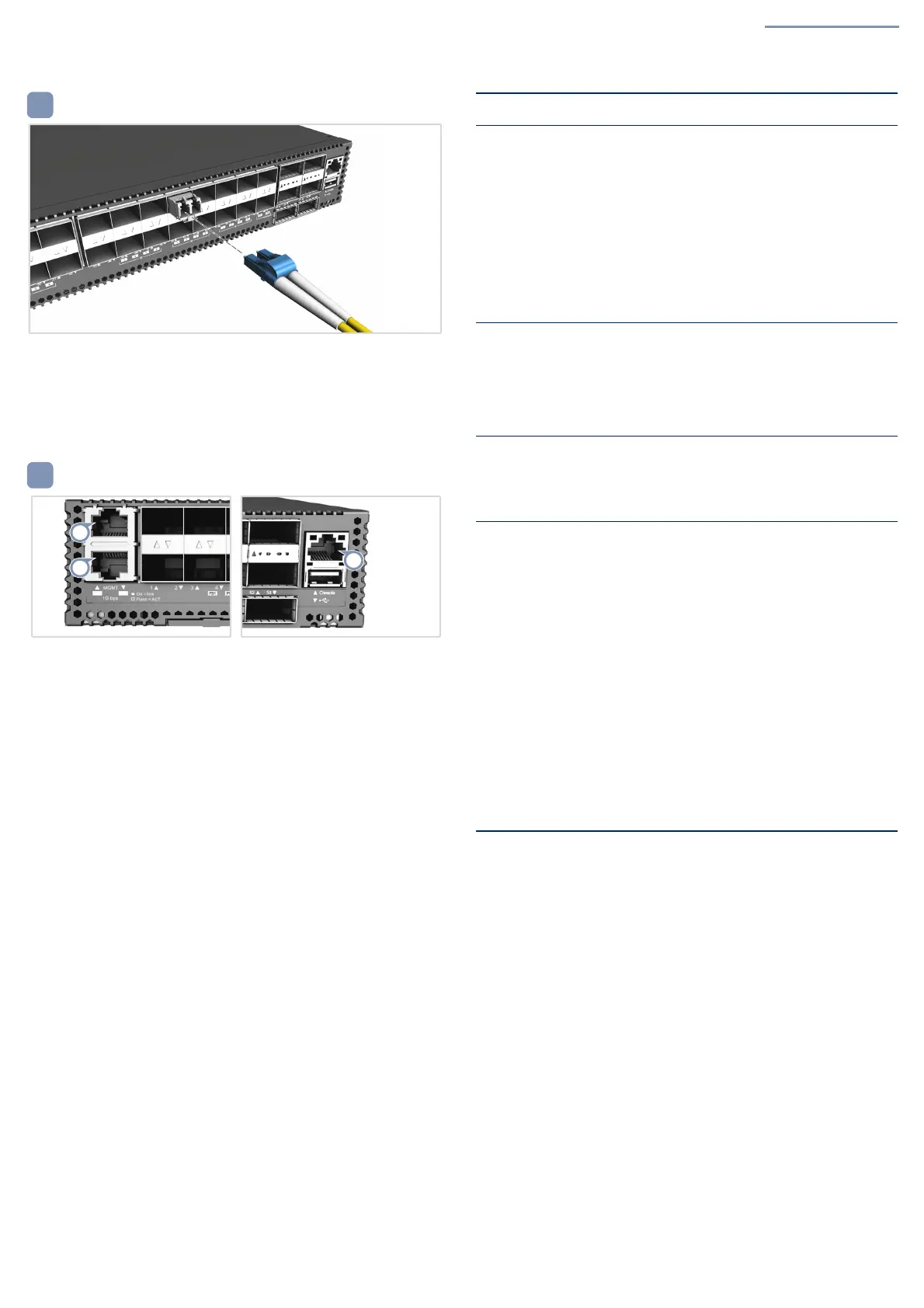

Make Network Connections
Make Management Connections
SFP+/QSFP28 Ports
Install transceivers and then connect fiber optic cabling to the
transceiver ports.
Alternatively, connect DAC or AOC cables directly to the SFP+/
QSFP28 slots.
Management Ports
Connect Cat. 5e or better twisted-
pair cable.
Console Port
Connect the included console
cable and then configure the
serial connection: 115200 bps, 8
characters, no parity, one stop bit,
8 data bits, and no flow control.
Hardware Specifications
Switch Chassis
Size (WxDxH) 442.5 x 473.3 x 43.95 mm (17.42 x 18.63 x 1.73 in)
Weight 8.815 kg (19.43 lb), with two installed PSUs
Temperature Operating: 0° C to 40° C (32° F to 104° F)
Storage: -40° C to 70° C (-40° F to 158° F)
Humidity Operating: 5% to 95% (non-condensing)
Power
Consumption
356 Watts maximum
AC PSU
Power Rating 100–240 VAC, 50–60 Hz, 400 Watts
AC Input 100-240 VAC, 50-60 Hz, 6–3 A
100–127 VAC, 47–63 Hz, 6.0 A
200–240 VAC, 47–63 Hz, 3.0 A
48 VDC PSU
Power Rating 48 VDC, 400 Watts
DC Input -36 – -75 VDC, 14–7 A
Regulatory Compliances
Emissions EN 55032:2015+AC:2016, Class A
EN 61000-3-2:2014, Class A
EN 61000-3-3:2013
FCC Class A
VCCI Class A
CCC GB 9254-2008, Class A
BSMI Class A, CNS 13438
Immunity EN 55024:2010+A1:2015
IEC 61000-4-2/3/4/5/6/8/11
Safety UL (CSA 22.2 No 60950-1 & UL60950-1)
(CSA 22.2 No 62368-1 & UL62368-1)
CB (IEC/EN60950-1)
(IEC/EN62368-1)
CCC GB4943.1-2011
BSMI, CNS 14336-1
Taiwan RoHS CNS 15663
