Edge 540 - Cowling, Muffler, and Fuel Line Connections

EDGE 540. Instruction Manual
10

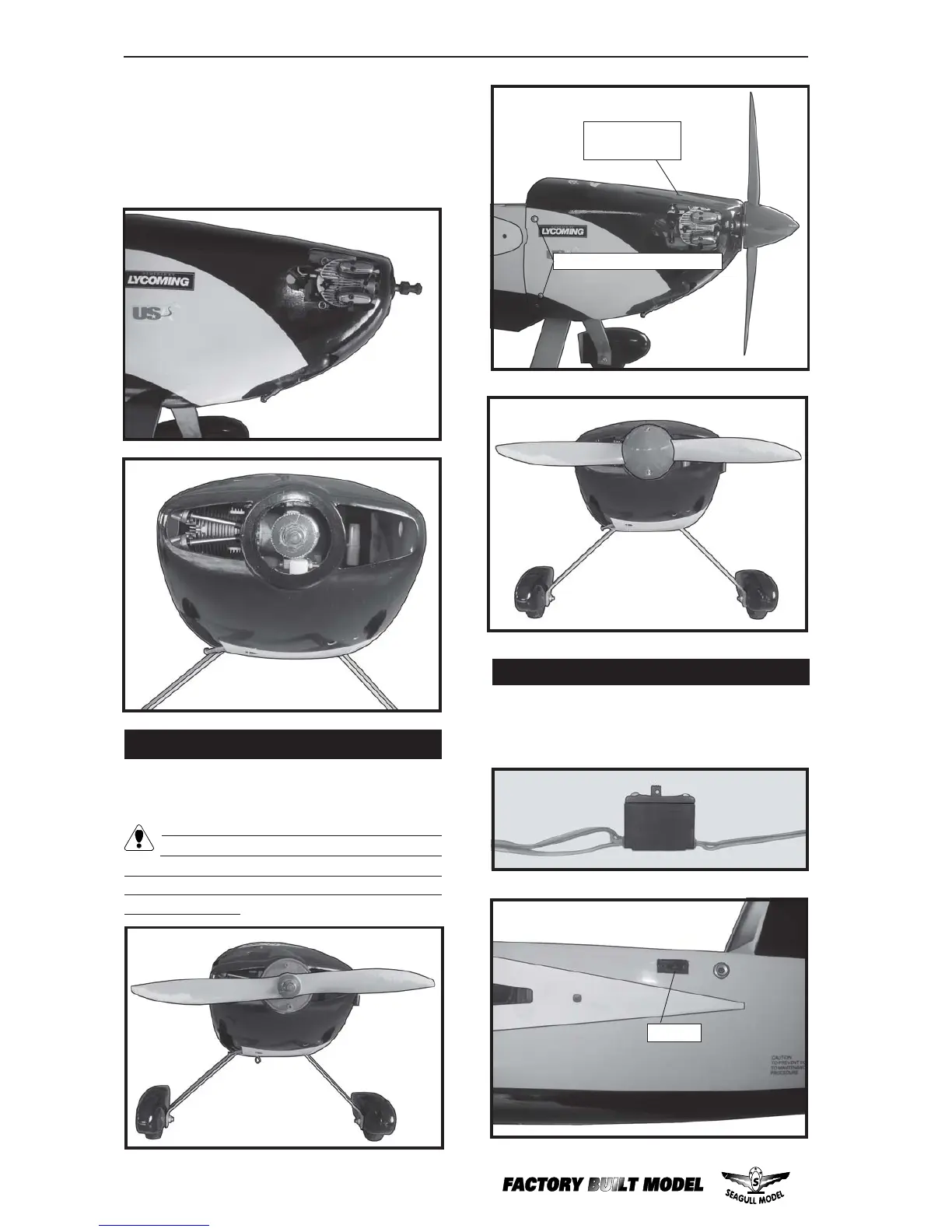

 3) Install the muffler and muffler extension
onto the engine and make the cut out in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the 3x10mm screws (4).
Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
INSTALLING THE SWITCH.
Install the switch into the precut hole in the
side of fuselage.
Machine Screw 3x10mm.
1.5mm were
(needle valve).
Switch.
SPINNER INSTALLATION.
