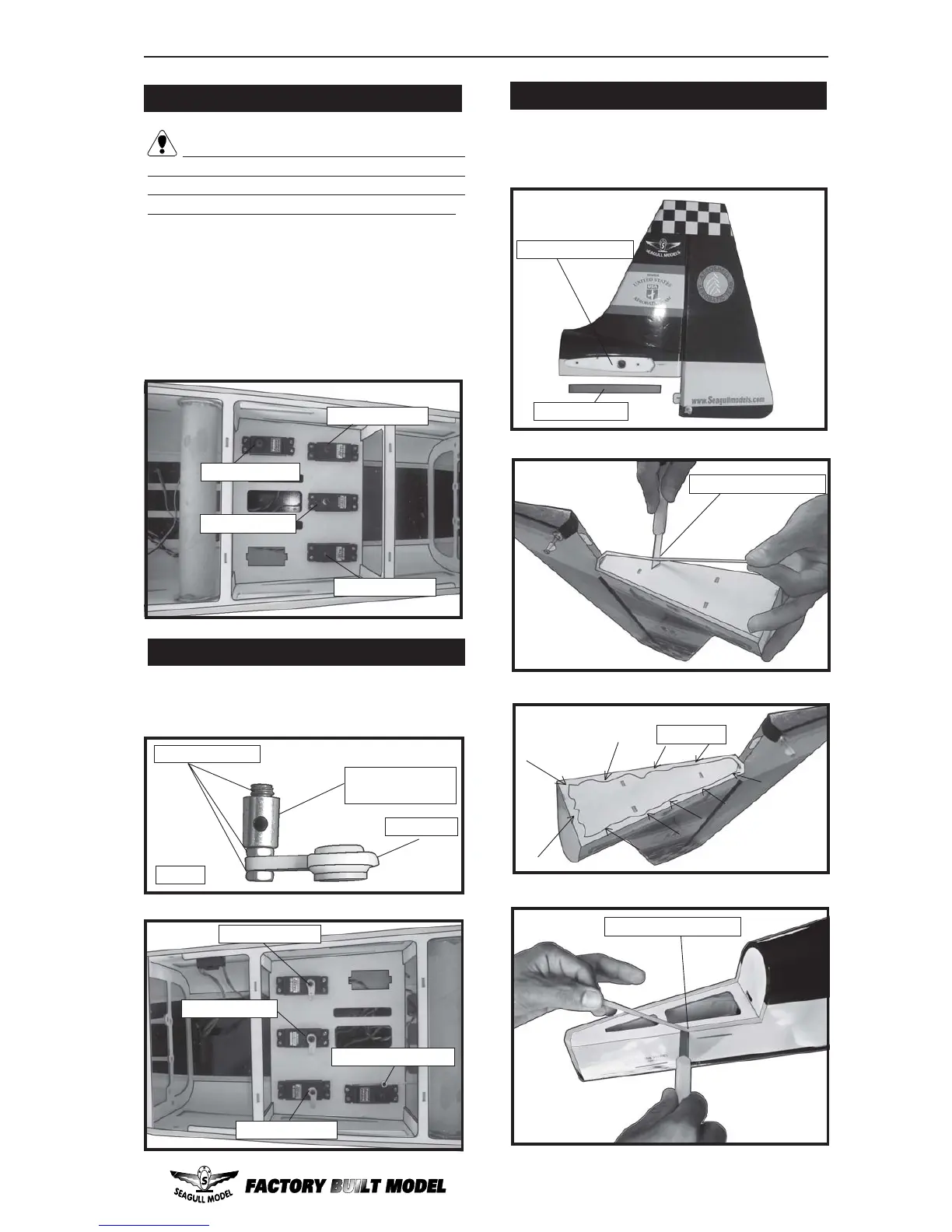

Edge 540 - Fuselage Servo Installation; Vertical Stabilizer Attachment

www.seagullmodels.com
11
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm .
 2) Secure the servos with the screws pro-
vided with your radio system.
INSTALLING THE FUSELAGE SERVO.
 1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through
.
Throttle servo .
Elevator servo .
Elevator servo .
Rudder servo .
Throttle servo arm.
Elevator servo .
Elevator servo .
Rudder servo .
VERTICAL STABILIZER INSTALLATION.
Remove the covering as picture shown
below.
Masking tape.
Remove covering.
Fill epoxy.
Remove the covering.
Adjustable Servo
connector.
Servo arm.
Loctite secure.
1 PCS.
Remove the covering.
