Edge 540 - Horizontal Fin Assembly and Installation

EDGE 540. Instruction Manual
12
Hinge slot.
Epoxy.
C/A glue.
Hinge.
Hinge.

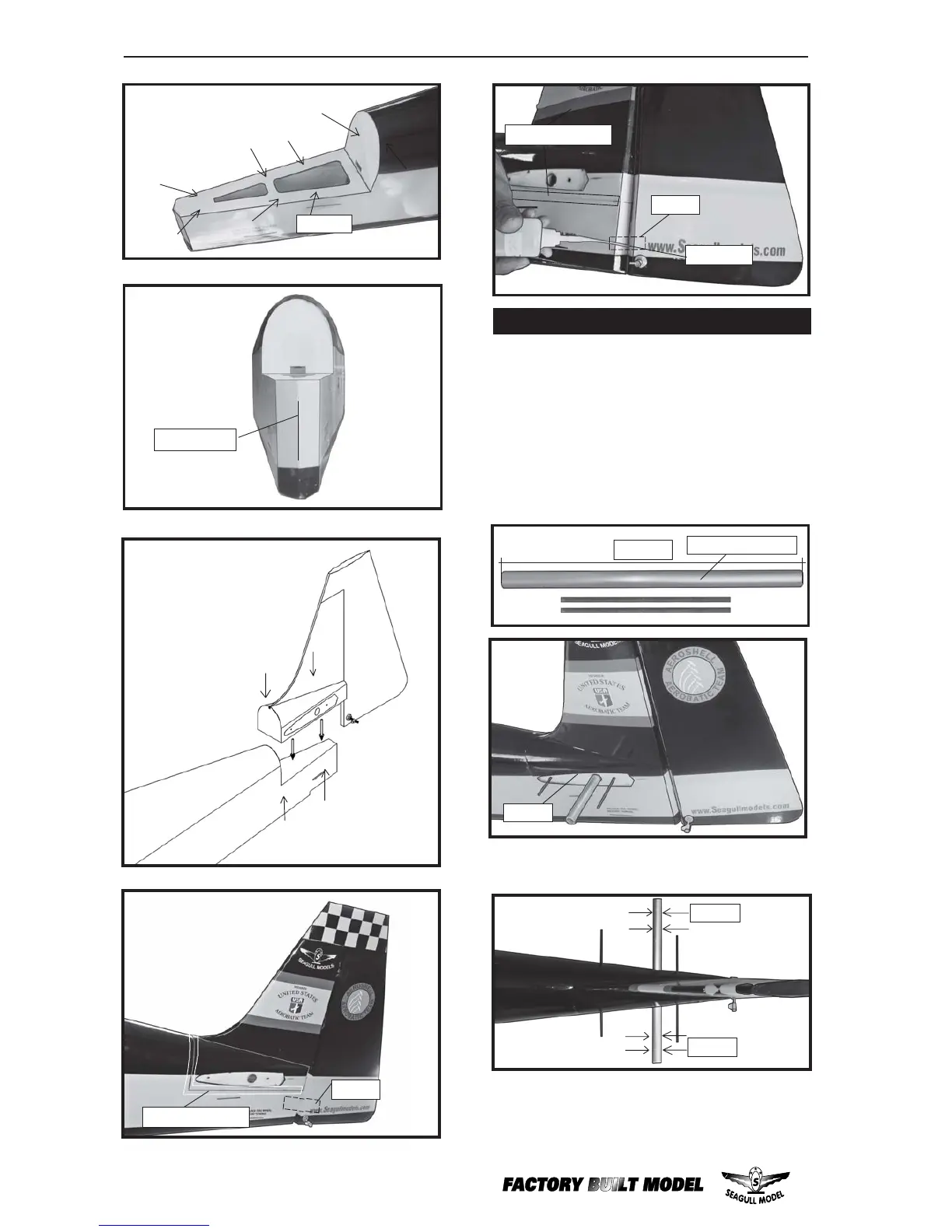

INSTALLING HORIZONTAL FIN.
 1) Remove the covering as same as
pictures shown below.
 2) Sand the aluminium tube using
sandpaper. This will improve the bond of the
epoxy to the cardboard horizontal fin.
Coat both sides of one half of the aluminium
tube with 30 minute epoxy. Next, pour some
epoxy into the cardboard horizontal fin. Use
enough epoxy to fill any gaps.
Epoxy.
 3) Insert aluminium tube into the cardboard
of fuselage.
Epoxy.
Epoxy.
 4) Slide the two horizontal fin halves to-
gether and carefully align them at the possition
on the fuselage. Wipe away any excess epoxy
using paper towels.
Aluminium tube.
335mm.
Covering strip.
Covering strip.
