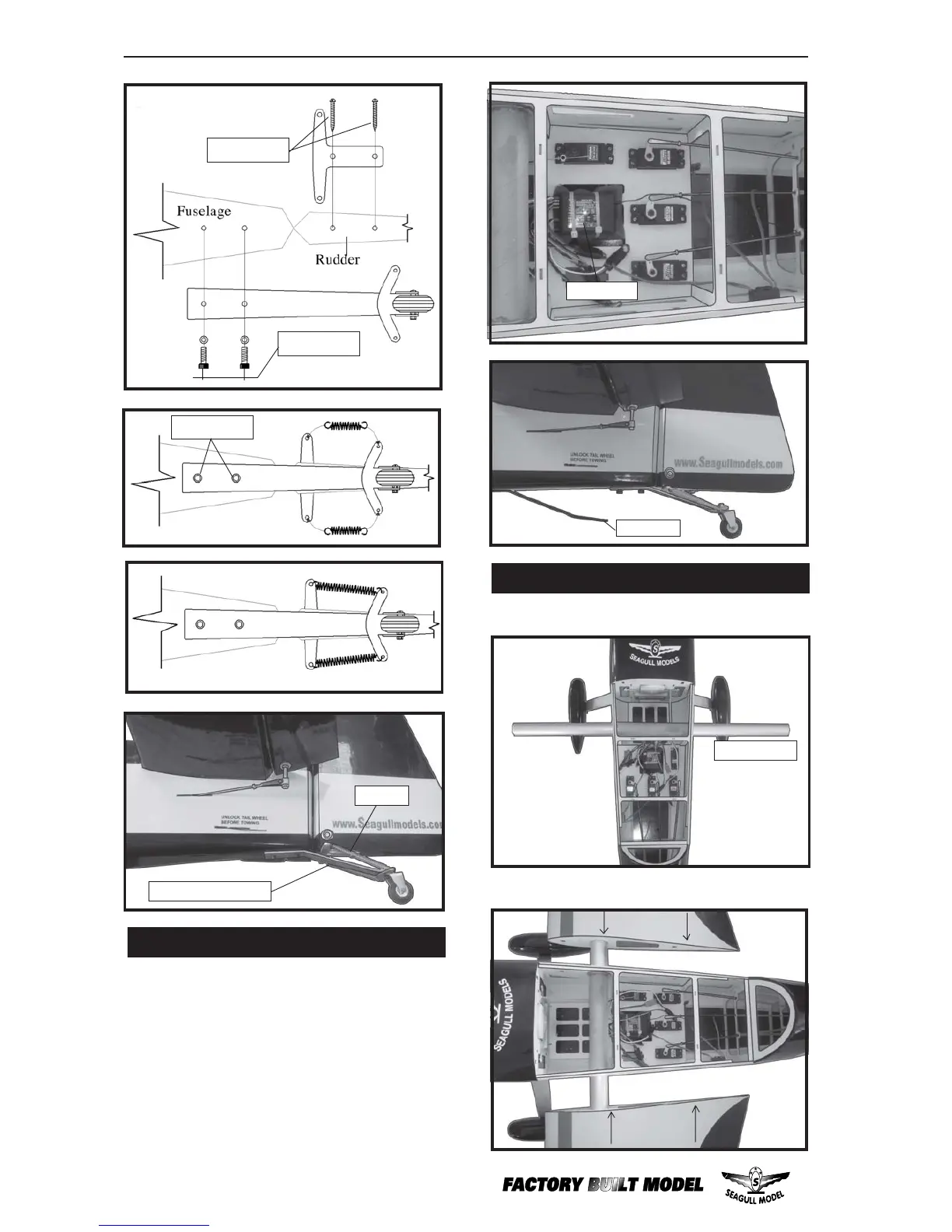

Edge 540 - Battery and Receiver Installation; Wing to Fuselage Attachment

EDGE 540. Instruction Manual
16
Tail landing gear.
Spring.
3x25 mm.
3x30 mm.
 1) Plug the six servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
 2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
 3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape.
INSTALLING THE BATTERY-RECEIVER.
Antenna.
Receiver.
ATTACHMENT WING-FUSELAGE.
Attach the aluminium tube into fuselage.
Insert two wing panels as pictures below.
Wing tube.
3x30 mm.
