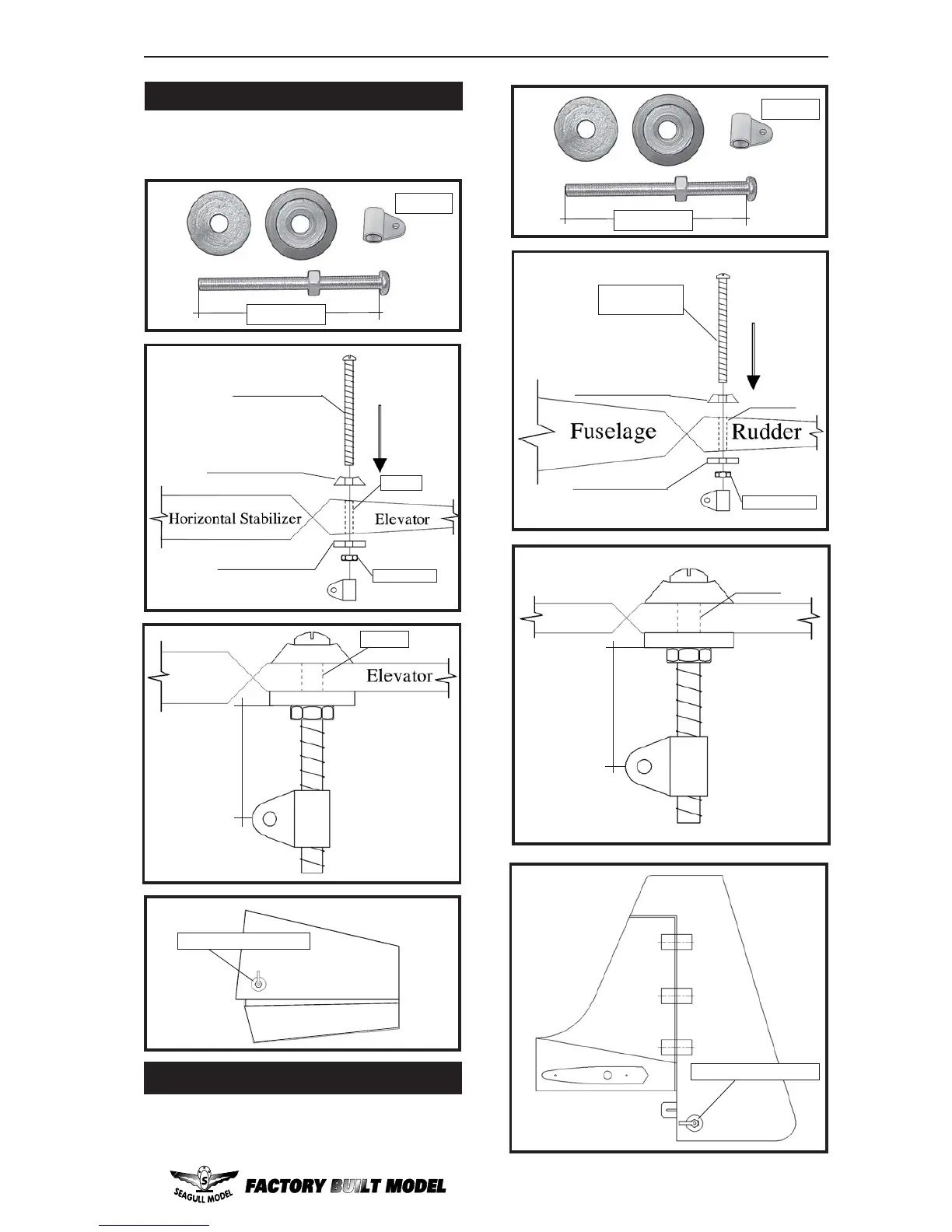

Edge 540 - Elevator Control Horn Installation; Rudder Control Horn Installation

www.seagullmodels.com
5
Aluminum Washer.
CONTRONL HORN M3
M3 LOCK NUT.
Epoxy.
Aluminum Washer.
ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
2 sets.
3x45mm.
Rudder control horn:
Using the same tectniques used aileron control
horn. See picture below.
16mm.
2 sets.
3x45mm.
EPOXY.
CONTRONL HORN
M3 SCREW.
ALUMINUM WASHER.
ALUMINUM WASHER.
M3 LOCK NUT.
EPOXY.
Rudder control horn.
16mm.
Epoxy.
RUDDER CONTROL HORN.
Horizontal
Stabilizer.
Fuselage.
Rudder.
Elevator control horn.
