EDGE-1830 / EDGE-2440 / EDGE-3240 / EDGE-2460 / EDGE-3260 / EDGE-3860 / EDGE-4460 / EDGE-3270
Installation and Operating Manual
Original Instruction Manual 8 Rev 1.0, July 2019

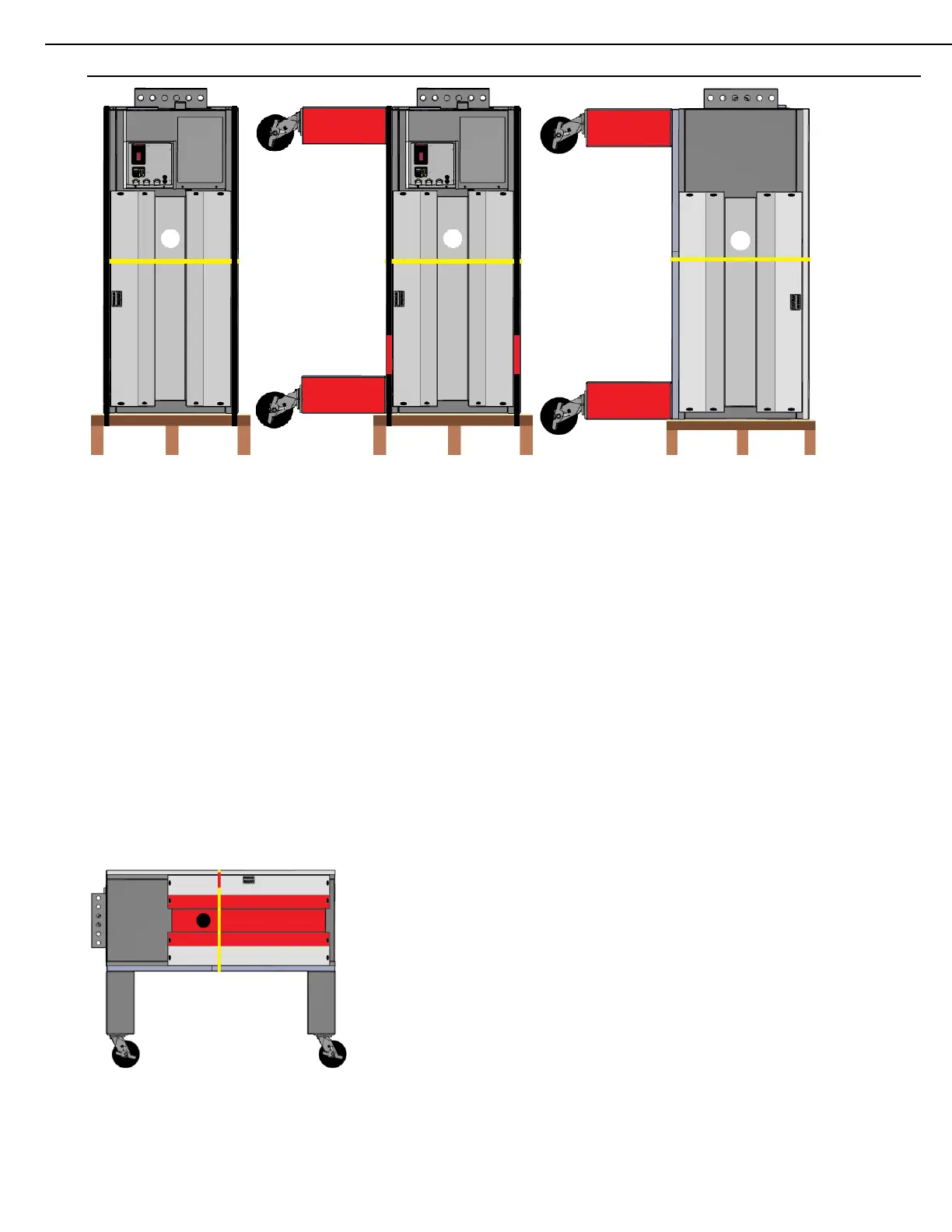

6. If lifting plates are not installed, install them at this time. They are to be fitted between the end
plugs, secured with 4 of the existing black wing nuts. The offset 3” hole is to be positioned towards
the rear of the oven for balancing.
7. Carefully install the SCH40 steel pipe through the first lifting plate, through the oven and out
through the second lifting plate.
8. Position lifting jacks at equal height on each side of the pipe.
9. If using other than EDGE lifting jacks, use locking pliers to prevent the pipe from rotating off the
jacks.
10. Lift the oven at a steady rate and equal height on both sides using the jacks. Control the oven
during the lift to prevent unexpected rotation.
11. When the oven is sufficiently elevated, begin rotating the oven until the front caster touch the
ground.
12. Clear the pallet or cart from the work area.
13. Continue the lift and rotation until the back casters can be rotated to the ground.
14. Begin lowering the oven, steady and controlled until all casters are seated to the floor.
15. Cut the final banding straps from the oven.
16. If additional ovens are to be stacked, move the oven back to allow the next palleted oven to be
moved into the work area. Repeat steps 1 – 4, and 6 – 9.
