Edge EDS500.2FD-E0 - Mounting Guidelines; Power Connections

Battery
Battery
Mounting Guidelines

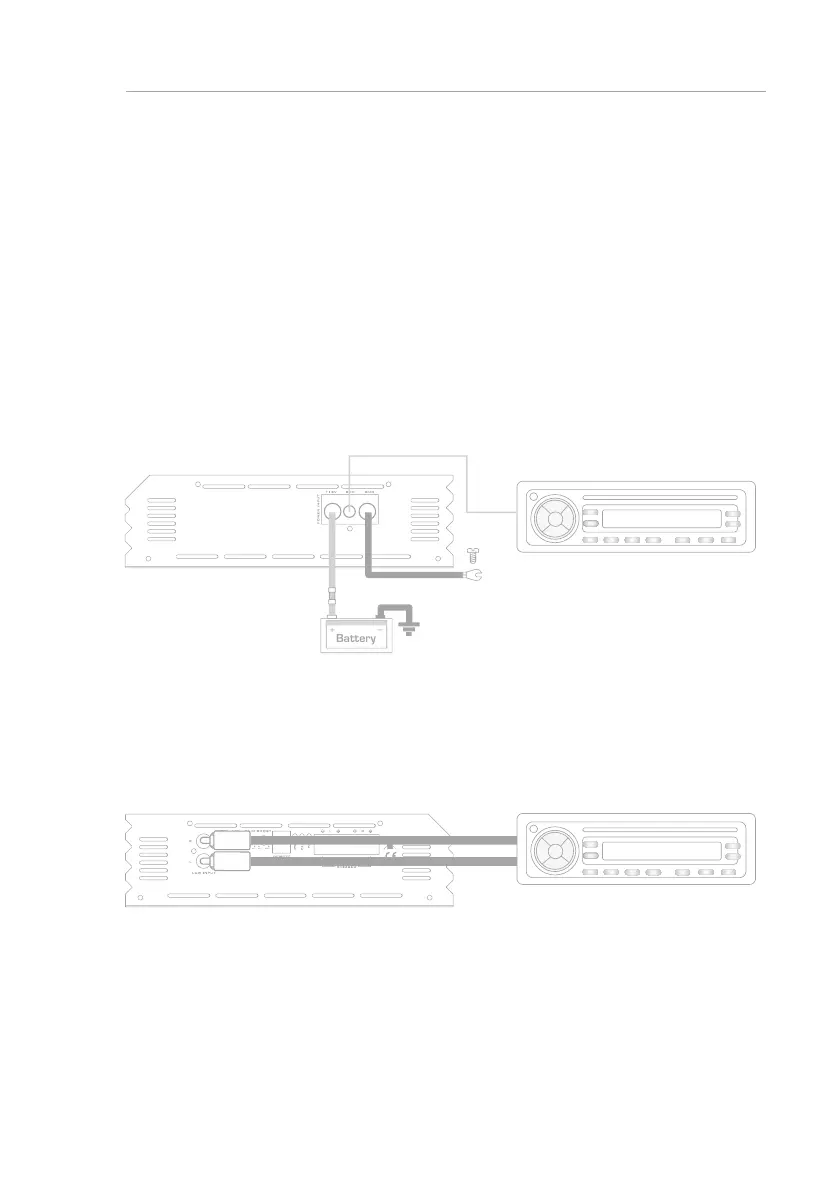

Power Connections
Low Level Input
Your EDGE amplier is designed with a swift installation routine in mind.
Please mount the amplier in a dry location on a solid surface.
NEVER mount the amplier upside down as this will cause the amplier to over heat and
will eventually damage the amplier.
Before xing the amplier in place please ensure that there is sufcient air ow around
the exterior of the casing, at least two inches is sufcient to allow effective cooling.
Chassis Ground
Fuse Close To Battery
Remote Turn On Wire
4
