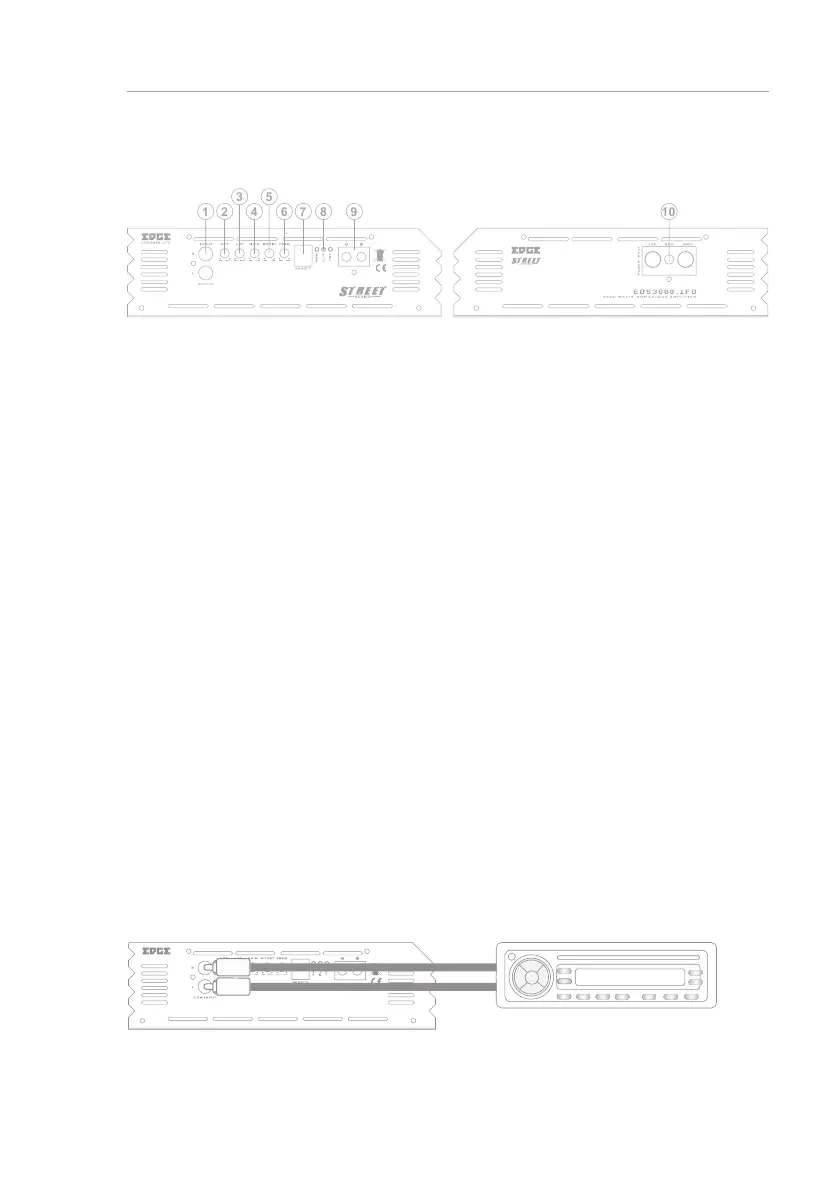

1. Low level input / output
For connection to any source (head unit) with a low level output. This is your RCA output from the
source (headunit). The output is used to daisy chain to another EDS3000.1FD.
2. High Pass Filter (HPF)
This control is used to set the HPF crossover frequency for the amplier. The frequency is adjustable
between 15Hz and 1kHz.
3. Low Pass Filter (LPF)
This control is used to set the LPF crossover frequency for the amplier. The frequency is adjustable
between 50Hz and 15kHz.
4. Gain control
This control is used to match the input signal of the source to the amplier. See the setup section
for more details.
5. Bass boost control
This control is used to add bass boost to the amplier centered at 45Hz and is adjustable between
0dB and +12dB.
6. Bass boost frequency control
This control is used to set the bass boost frequency and is adjustable between 35Hz and 70Hz.
7. Remote input socket
Used to connect the remote level control to the amplier.
8. Power / clip / protect LED
If the amplier is operating normally, the GREEN LED will illuminate.
If the amplier output is clipping, the YELLOW LED will illuminate.
If the amplier is in protection mode the RED LED will illuminate.
9. Speaker terminals
Used to connect speaker cables to the amplier. See the wiring conguration section for more details.
10. Power terminals
Used to connect DC power to the amplier. See the power connections section for more details
1 2 4 6 7 8 9 10
3 5
OUTPUT
8EDS3000.1FD
Terminals And Connections
Single Amplier Installation
