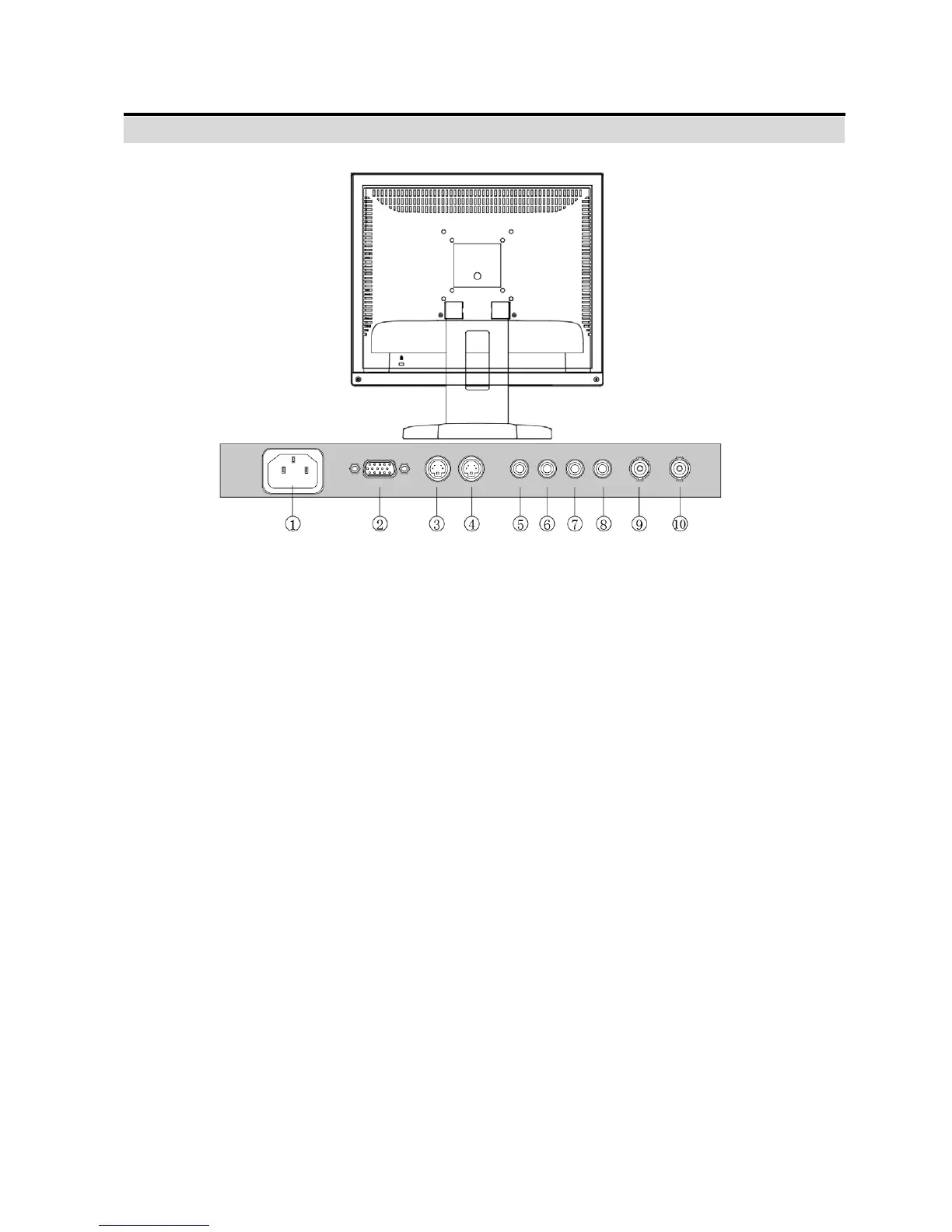

Inputs Diagram
Inputs
① AC POWER INPUT: AC inlet for 100-240V power system.
② PC INPUT: This D-sub 15 sockets can be connected to a PC.
③/④ S-VIDEO INPUT/OUTPUT: Contact S-video signal by DIN socket.
⑤、⑥ AUDIO IN : These RCA sockets can be connected to other speakers (L–-Red
terminal, R---White terminal).
⑦、⑧ AUDIO OUT: These RCA sockets can output sound to other speakers (L–-Red
terminal, R---White terminal).
⑨/⑩ VIDEO-IN/OUT: This BNC socket can be connected to composite video
output.
