Warning: Before you begin, unplug the Refrigerator.
!
Reversing the Door Swing

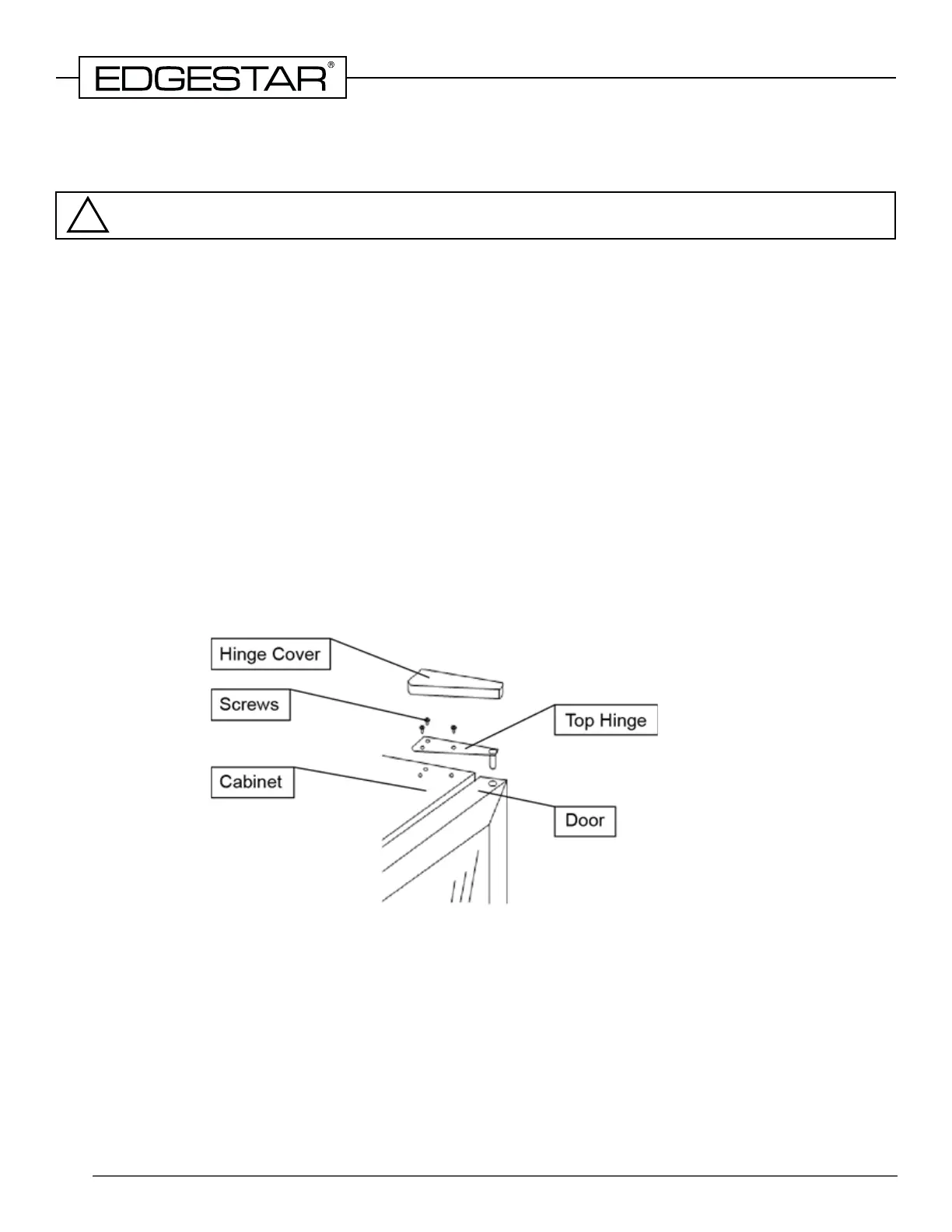

To Remove the Door:
1. Using a athead screw driver carefully pry the top hinge cover o.
2. Using a Philips screwdriver, remove the screws and take o the top hinge. Keep the
parts together and set them aside.
3. Lift the door o the bottom hinge and set the door aside.
4. Remove the bottom hinge by removing the screws with a Philipa head screwdriver
To Install the Door:
1. Using a athead screwdriver, remove the decorative plugs or cover from the opposite
cabinet top corner and from the door. Set the plugs or cover aside.
2. Install the bottom hinge at the opposite side corner and fasten the screws.
3. Position the door on the bottom hinge.
4. Align the door on the bottom hinge and install the top hinge.
5. Push the decorative plugs or cover into the corresponding holes.
