12V DC Battery
Three way
panel switch
Appropriate
inline fuse
Manual
Off
Automatic
Test Circles
Brown/White
Brown
PUMP
Black

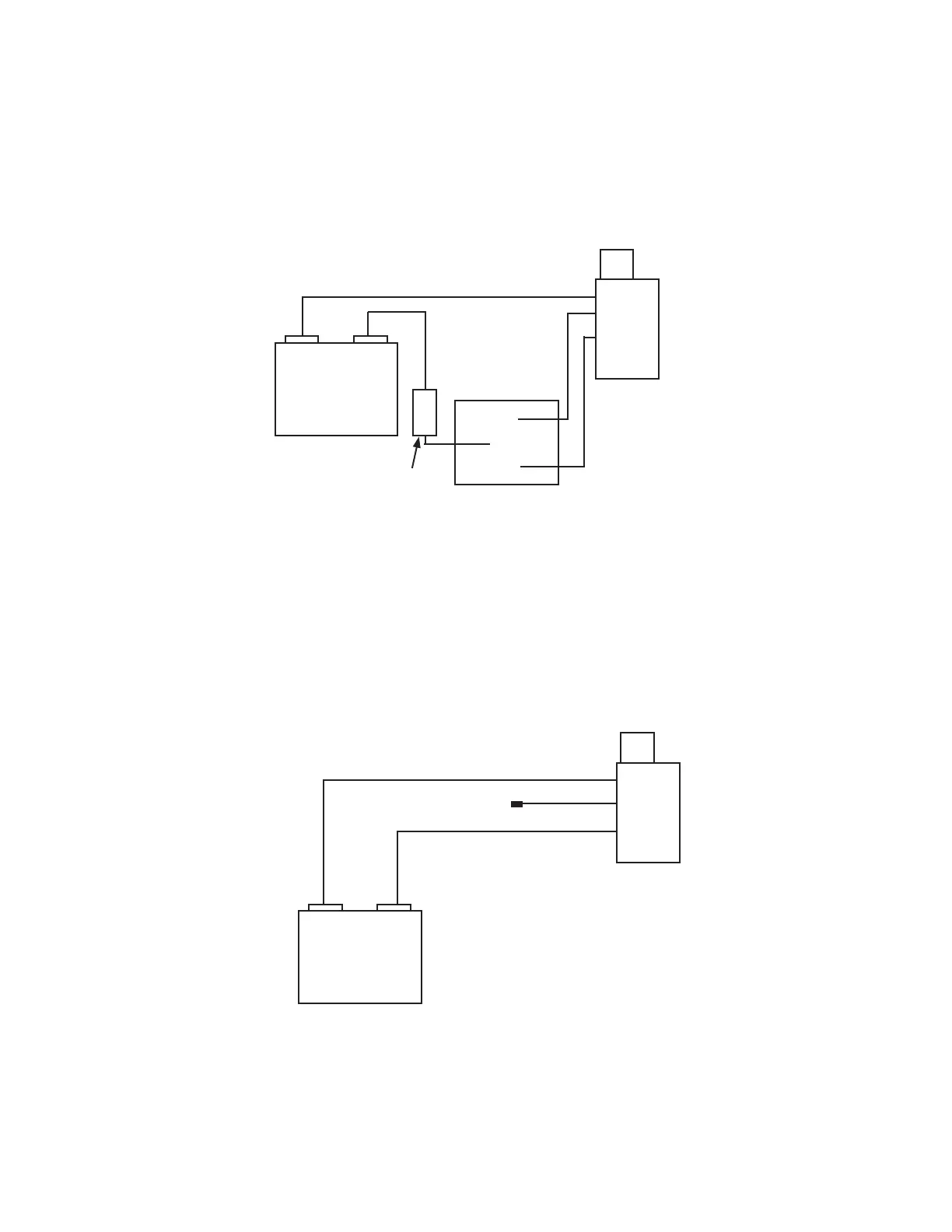

Wiring Scheme
If you are using a 3-way switch, you can wire your pump to operate in the manual over-
ride or automatic operation.
As shown in the diagram, connect the black (-) ground wire to the negative terminal of
the battery. For manual over-ride operation, connect the brown wire from the pump to the
switch panel. For automatic operation, connect the brown wire with white tracer to the
switch panel. Make sure to connect an appropriate in line fuse coming from the positive
terminal of the battery to the switch panel as shown.
12V DC Battery
Test Circles
Brown/White
Brown,
not used, but sealed ends
PUMP
Black
− +
Wiring scheme without Panel switch
10
Original instructions
