SEASTAR and BAYSTAR Hydraulic Steering Systems
10-7
1) From the illustration which best suits your application note the
number of lengths of tubing and fitting kits required.
2) Measure along the intended path of tube routing for each of the
tubing runs.
3) Determine if 3/8" nylon tube can be used or if copper tubing is
required based on lengths of tubing runs required.
4) Total up the entire length of tubing required and round up to the
next available tube kit length.
TUBING

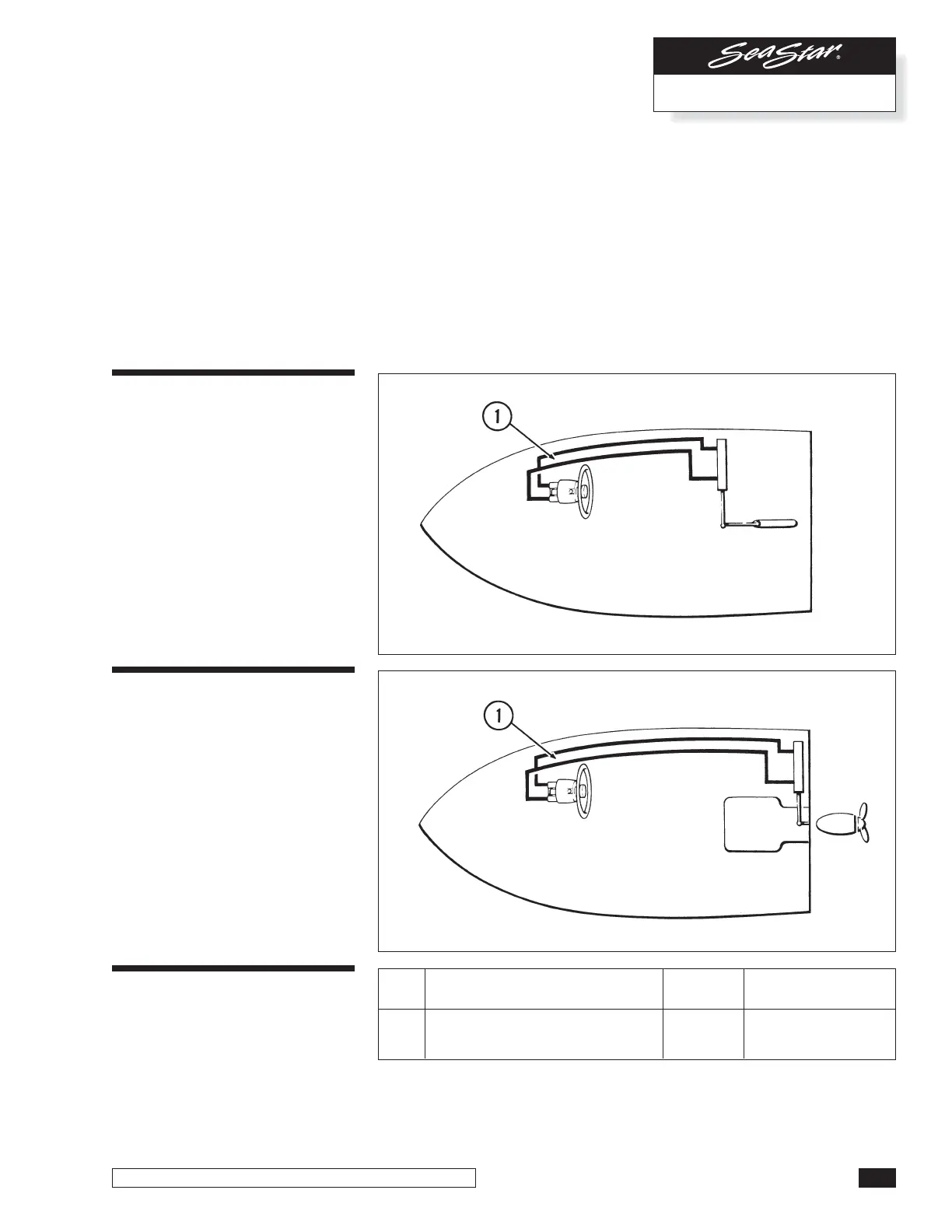

Single Station
Figure A
Single Inboard Cylinder
• fittings required supplied with
helm and cylinder
Figure B
Single Sterndrive Cylinder
• fittings required supplied with
helm and cylinder
Parts list
For Figures A, B
ITEM DESCRIPTION PART QUANTITY
# NUMBER REQUIRED
1 3/8" DIA NYLON OR COPPER TUBE AS
MEASURED
