3-12
Selection Guide

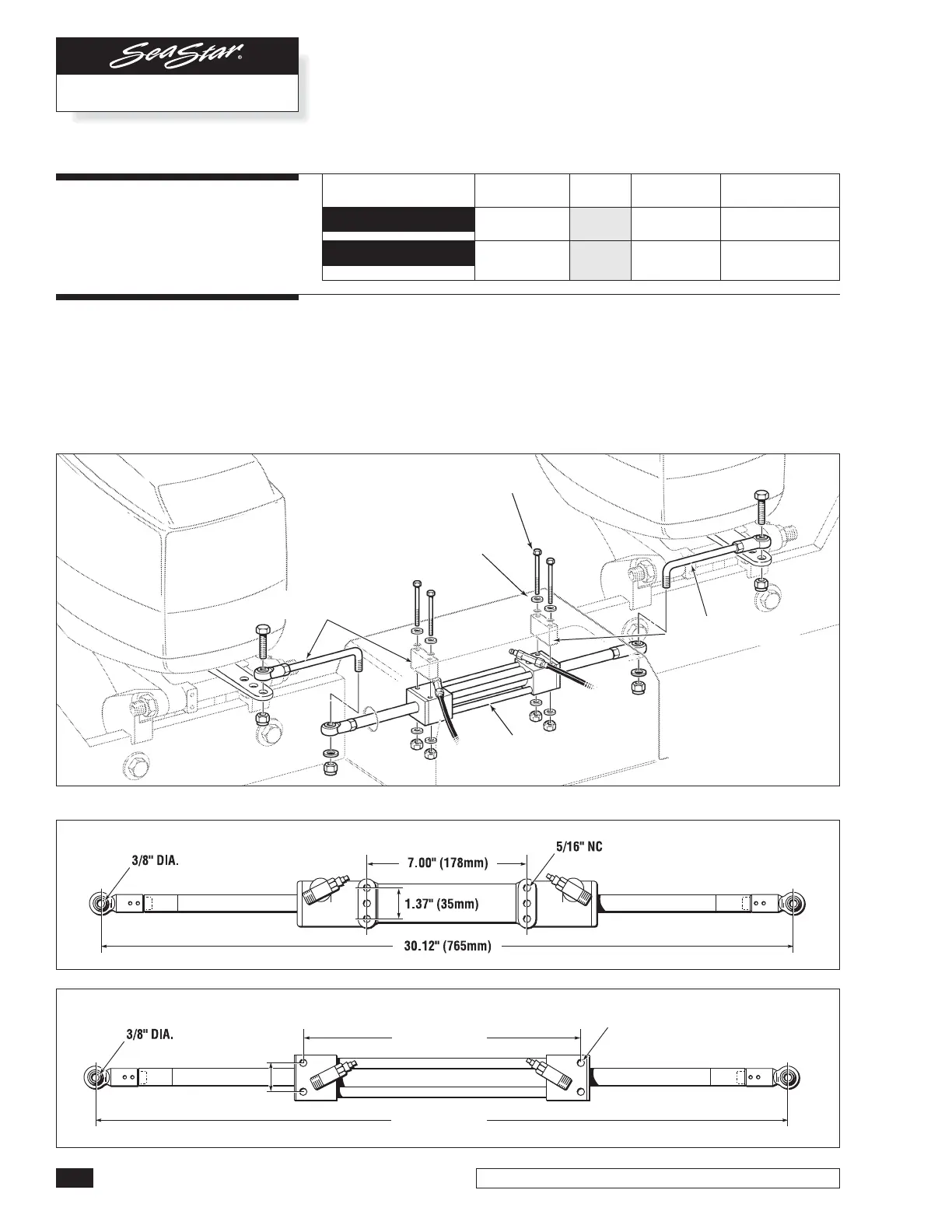

OUTBOARD–FRONT MOUNT
Outboard–Catamaran
CUSTOMER SUPPLIED
DRAG LINK & SPACER
CUSTOMER SUPPLIED
DRAG LINK & SPACER
HC5374 TANDEM
CATAMARAN CYLINDER
WASHER 5/16" DIA.
SCREW 5/16" NC
To establish whether or not this cylinder is suitable for your
application, the following points should be considered:
1. Fore and aft alignment of cylinder. If not mounted in line, motors
will have a different turning radius.
2. Distance between motors.
3. Distance of travel in tilt arc.
4. Horizontal alignment of cylinder.
Horsepower Limitations
ENGINE MAXIMUM CYLINDER RECOMMENDED
NO. OF STEERING
CONFIGURATIONS HORSEPOWER HELM PUMP WHEEL TURNS
NON COUNTER-ROTATING
UP TO 450HP HC5343 HH5271 5
HC5374 HH5272 5.5
COUNTER-ROTATING
UP TO 600HP HC5343 HH5271 5
HC5374 HH5272 5.5
13.25" (337mm)
30.12" (867mm)
5/16" NC
1.37" (35mm)
Cylinder PART# HC5343
Cylinder PART# HC5374
Cylinder Part# HC5374 Shown
