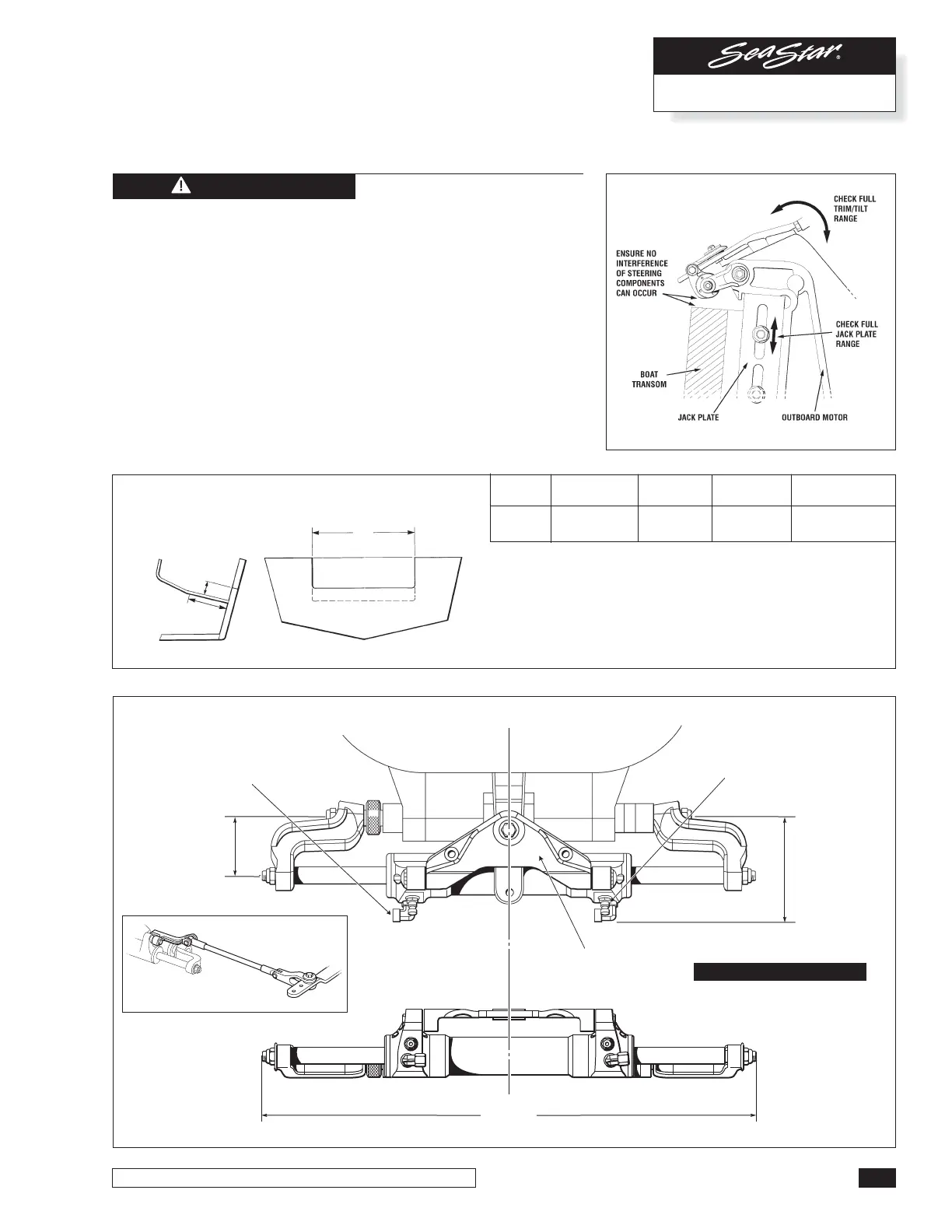

SEASTAR and BAYSTAR Hydraulic Steering Systems
3-11
OUTBOARD–FRONT MOUNT
(67mm)
3/8" COMPRESSION FITTING FOR
HOSE CONNECTION
4 7/8"
(124mm)
2 5/8"
21 3/4"
(552mm)
BLEED NIPPLE
PIVOT PLATE
Typical Tie Bar Kit
WARNING
Cylinder Installation and
General Dimensions
# OF A B C MIN. ENGINE
ENGINES CENTER DISTANCE
1 22" (559mm) 6" (152mm) 5" (127mm) N/A
2 49" (1244mm) 6" (152mm) 5" (127mm) 26" (660mm)
NOTES
a) Dimensional restrictions also apply to external motor mount brackets.
b) Maximum engine center distance for twin engine applications is 36" (914mm)
using the standard tiebar. Dimension 'A' would have to be increased
proportional to the tiebar length.
c) Minimum engine center distance is 26" unless engine manufacturer
recommendation is greater.
Motor Well dimensions required for front
mount outboard steering systems
A
Operational interference of the steering cylinder/cylinder
fittings and jackplates/transom/splashwell can occur under
certain conditions. Check installation thoroughly throughout
the full range of Motor Tilt, Jack Height and Trim before
making final installation.
If interference does occur, contact:
Teleflex Canada Limited Partnership for additional
information/options.
Telephone: 604-270-6899 Fax: 604-279-2202
If interference is not eliminated total steering loss can
occur, causing property damage and/or personal injury.
Cylinder HC5345/ HC5347/ HC5348/ HC5358
C
B
NOTICE
Pivot plate dimensions vary
from cylinder to cylinder.
